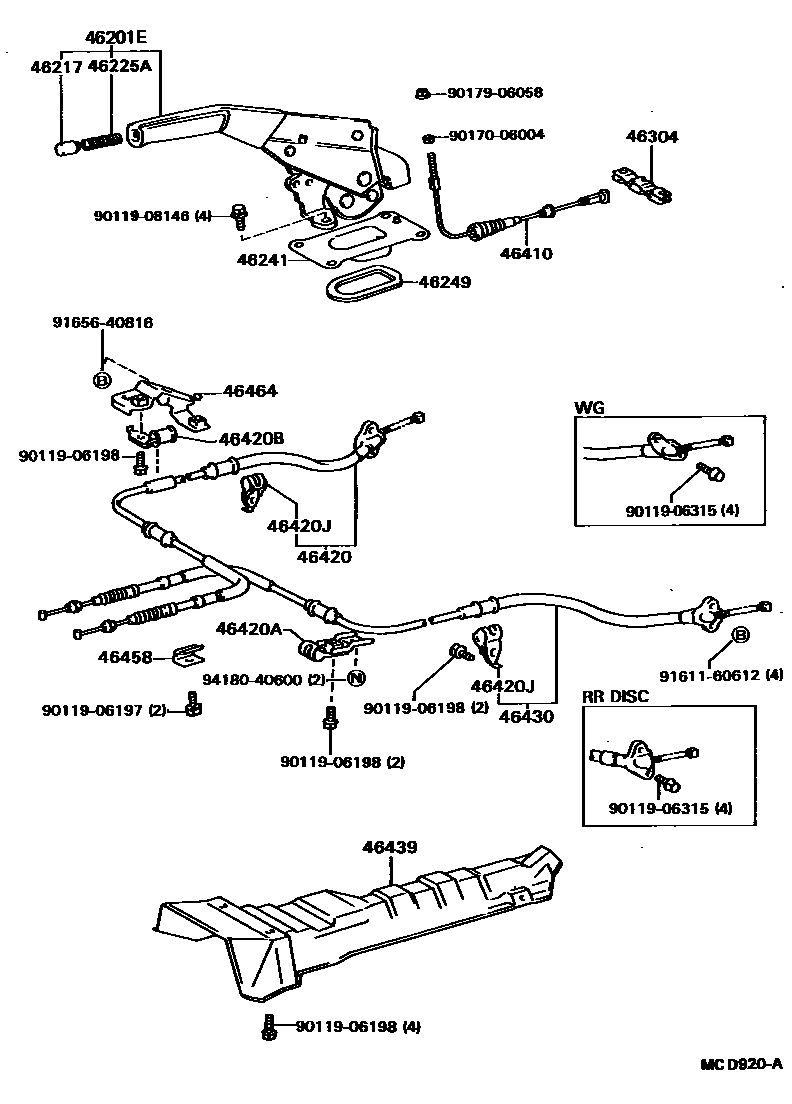

PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
BLACK,TRIM1#,3#,4#,8#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BLACK,TRIM1#,3#,4#,8#; W(ANTI-LOCK BRAKE SYSTEM),BLACK,TRIM1#,3#,4#,8#
BLACK,BLACK
BLACK,TRIM1#,3#,4#,8#
BLACK,TRIM1#,4#,8#
46217KNOB, PARKING BRAKE RELEASE ROD
BLACK,TRIM1#,3#,4#,8#
BLACK,BLACK
BLACK,TRIM1#,4#,8#
46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
46241BOOT, PARKING BRAKE LEVER
W(ANTI-LOCK BRAKE SYSTEM)
46249SHIELD, PARKING BRAKE HOLE
46304EQUALIZER SUB-ASSY, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
W(ANTI-LOCK BRAKE SYSTEM)
46420CABLE ASSY, PARKING BRAKE, NO.2
W(ANTI-LOCK BRAKE SYSTEM)
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
RH
LH
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
RH
LH
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46439INSULATOR, PARKING BRAKE CABLE HEAT
46458RETAINER, CABLE
46464PLATE, CABLE CLAMP SUPPORT
9011906197
main90119-06197
9011906198
main90119-06198
9011906315
main90119-06315
9011908146
main90119-08146
9017006004
main90170-06004
9017906058
main90179-06058
9161160612
main91611-60612
9165640816
main91656-40816
9418040600
main94180-40600
24 parts on this diagram · 2 diagrams in section
