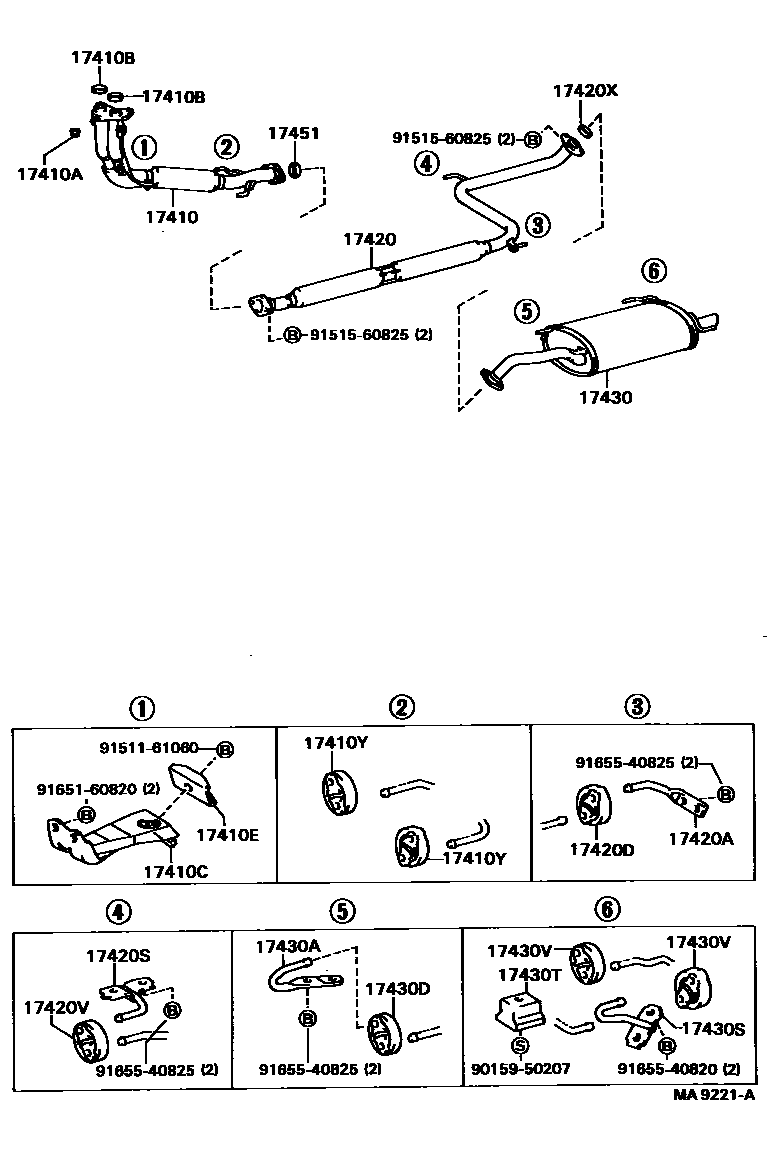

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-62020i2VZFE..VZV21198802-198808

main17410-63150i1S..SV20198610-198808

main17410-64200i2CT..CV20198610-198808

main17410-74160i3SFE..SV21..EUG198610-198808

main17410-74170i3SFE..SV21..FRG198710-198808

main17410-74280i3SFE..SV25..EUG198710-198808

main17410-74301i3SFE..SV25..FRG198710-198808

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i2CT,1S,3SFE..CV20,SV2#198610-198802

17410BGASKET, EXHAUST PIPE

main90917-06001×2i1S..SV20198610-198808

main90917-06004×2i3SFE..SV21;3SFE..SV25..EUG198610-198808

main90917-06005i2CT..CV20198610-198710

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-63070i1S..SV20198610-198808

main17571-74050i3SFE..SV21198610-198808

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04054i1S..SV20198610-198808

17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)

main17565-11100×2i2CT,1S,3SFE..CV20,SV2#198610-198710

main17565-62010×2i2VZFE..VZV21198802-198808

17420PIPE ASSY, EXHAUST, CENTER

main17420-62020i2VZFE..VZV21198802-198808

main17420-63130i1S..SV20198610-198808

main17420-64060i2CT..CV20198610-198808

main17420-74150i3SFE..SV21..FRG198610-198710

main17420-74160i3SFE..SV21..EUG198610-198804

main17420-74200i3SFE..SV25..FRG198710-198808

main17420-74210i3SFE..SV25..EUG198710-198808

main17420-74350i3SFE..SV21..EUG198804-198808

17420ABRACKET, EXHAUST PIPE CENTER, FRONT

main17572-63050i2CT,1S,3SFE,2VZFE..CV20,SV20,21,VZV21198710-198808

17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT

main17565-11100i2CT,1S,3SFE..CV20,SV2#198610-198710

main17565-62010i2VZFE..VZV21198802-198808

17420SBRACKET, EXHAUST PIPE CENTER, REAR

main17507-63030i2CT,1S,3SFE..CV20,SV2#198610-198710

main17508-74020i3SFE..SV25198710-198808

17420VBOLT OR RING, EXHAUST PIPE CENTER, REAR

main17565-11100i2CT,1S,3SFE..CV20,SV2#198610-198808

main17565-62010i2VZFE..VZV21198802-198808

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06012i2CT,1S,3SFE..CV20,SV2#198610-198710

17430PIPE ASSY, EXHAUST, TAIL

main17430-62040i2VZFE..VZV21198802-198808

main17430-64380i2CT..CV20..SED198610-198808

main17430-64390i2CT..CV20..WG198610-198808

main17430-64400i2CT..CV20..WG198710-198808

W/(URETHANE BUMPER)

main17430-74140i3SFE..SV21..SED..FRG198610-198808

main17430-74160i1S,3SFE..SV2#..SED..EUG198610-198710

main17430-74170i1S,3SFE..SV2#..WG..EUG198610-198710

main17430-74180i1S,3SFE..SV20,21..WG..EUG198710-198804

W/(URETHANE BUMPER)

main17430-74200i3SFE..SV21..WG..FRG198610-198710

URETHANE BUMPER

main17430-74220i3SFE..SV21..WG..FRG198610-198808

main17430-74300i3SFE..SV25..EUG198710-198808

main17430-74310i3SFE..SV25..FRG198710-198808

main17430-74500i3SFE..SV21..SED..EUG198804-198808

main17430-74510i3SFE..SV21..WG..EUG198804-198808

main17430-74520i3SFE..SV21..WG..EUG198804-198808

W(URETHANE BUMPER)

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17563-63080i2CT,1S,3SFE..CV20,SV2#198610-198710

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17565-11100i3SFE..SV21..FRG198610-198710

main17565-55020i2VZFE..VZV21;3SFE..SV21..EUG198710-198808

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17509-63060i2CT,1S,3SFE..CV20,SV2#198610-198710

main17509-74040i3SFE..SV25198710-198808

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17591-36010i2CT,1S,3SFE..CV20,SV2#198610-198802

main17591-36011i2CT,1S,3SFE,2VZFE..CV20,SV2#,VZV21198802-198808

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17565-63120×2i2CT,1S,3SFE,2VZFE..CV20,SV2#,VZV21198710-198808

17451GASKET, EXHAUST PIPE

main90917-06012i2CT,1S,3SFE..CV20,SV2#..EUG198610-198710

main90917-06031i3SFE..SV21..FRG198610-198710

FR

main90917-06032i3SFE..SV21..FRG198610-198710

RR

9015950207

main90159-50207

9151161060

main91511-61060

9151560825

main91515-60825

9165160820

main91651-60820

9165540820

main91655-40820

9165540825

main91655-40825

25 parts on this diagram · 6 diagrams in section
