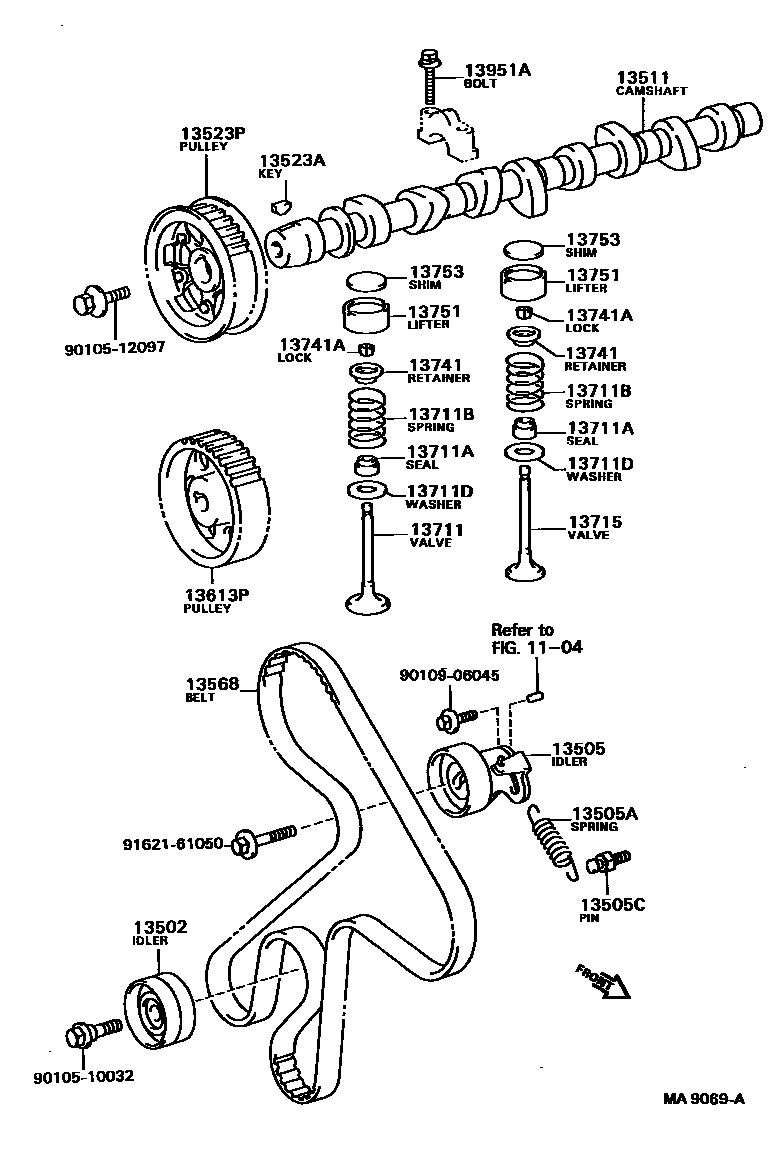

CAMSHAFT & VALVE
1104CYLINDER HEAD
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13505ASPRING, TENSION(FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13511CAMSHAFT
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523PPULLEY, CAMSHAFT TIMING
13568BELT, TIMING
13613PPULLEY, INJECTION PUMP DRIVE
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE SIDE
EXHAUST SIDE
BROWN
13711BSPRING, COMPRESSION(FOR INNER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
AISAN
13741RETAINER, VALVE SPRING
EXHAUST SIDE
INTAKE SIDE
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50,T=2.50
T=2.55
T=2.60,T=2.60
T=2.65
T=2.70
T=2.75,T=2.75
T=2.80
T=2.85,T=2.85
T=2.90
T=2.95
T=3.00
T=3.05,T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30,T=3.30
T=2.20
T=2.25,T=2.25
T=2.30,T=2.30
T=2.35
T=2.40
T=2.45
T=2.50,T=2.50
T=2.55,T=2.55
T=2.60
T=2.65,T=2.65
T=2.70
T=2.75,T=2.75
T=2.80,T=2.80
T=2.85
T=2.90
T=2.95
T=3.00,T=3.00
T=3.05
T=3.10,T=3.10
T=3.15,T=3.15
T=3.20
T=3.25,T=3.25
T=3.30,T=3.30
T=3.35
T=3.40,T=3.40
13951ABOLT(FOR ROCKER SUPPORT SET)
9010510032
main90105-10032
9010512097
main90105-12097
9010906045
main90109-06045
9162161050
main91621-61050
24 parts on this diagram · 4 diagrams in section
