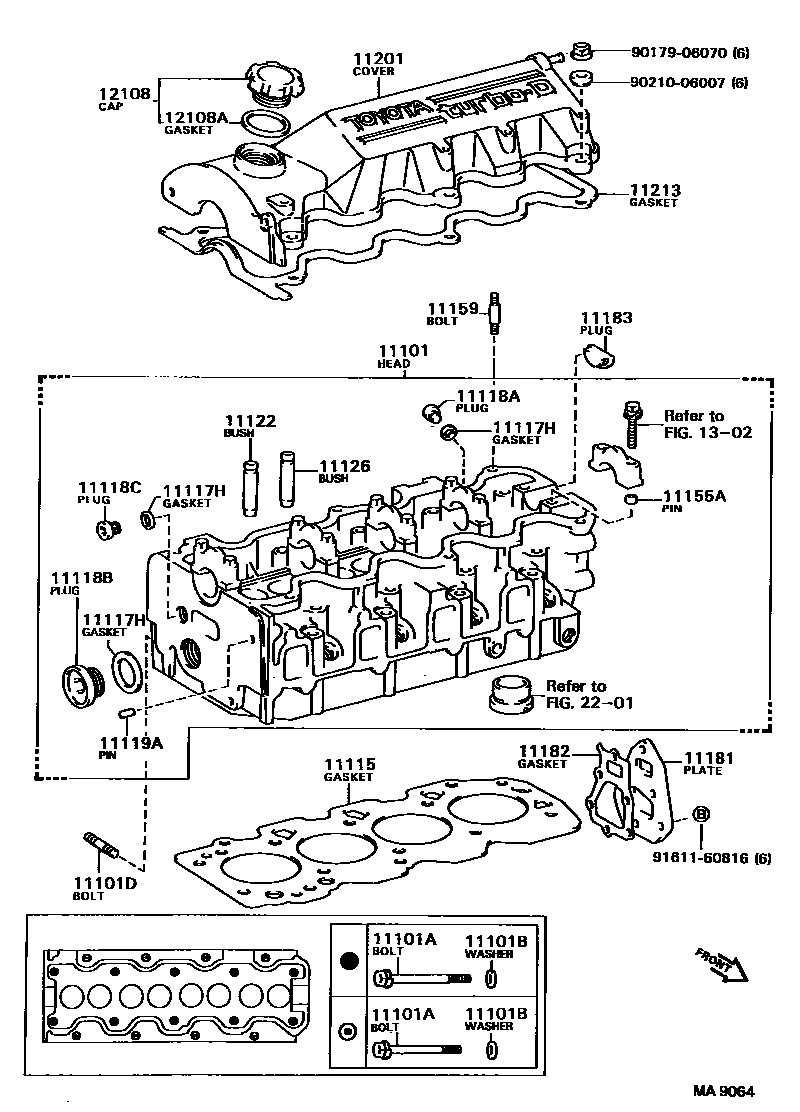

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-64090i2CT..CV20198610-198808

sub11101-64091

sub11115-64122

main11101-69027i1S..SV20198610

main11101-69055i2VZFE..VZV21198802-198808

sub11101-69056

sub90201-11028

main11101-74030i3SFE..SV21,25198610-198808

sub11101-74901

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-11018i2CT..CV20198610-198808

*11-1.25PX123-51.5

sub90910-02097

main90105-11019i2CT..CV20198610-198808

*11-1.25PX145-51.5

sub90910-02099

main90109-10048i1S..SV20198610-198808

main90110-10006i3SFE..SV21,25198610-198808

main90910-02077i2VZFE..VZV21198802-198808

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-10344i1S,3SFE..SV2#198610-198808

main90201-11018i2VZFE..VZV21198802-198808

sub90201-11034

main90201-12222i2CT..CV20198610-198808

11101DBOLT, STUD(FOR WATER OUTLET)

main92122-60820i2CT..CV20198610-198808

11115GASKET, CYLINDER HEAD

main11115-62030i2VZFE..VZV21198802-198808

sub11115-62060

main11115-63010i1S..SV20198610-198808

sub11115-63011

main11115-64100i2CT..CV20198610-198808

sub11115-64121

main11115-74030i3SFE..SV21198610-198808

sub11115-79015

11117HGASKET(FOR WATER HOLE)

main90430-10204i2CT..CV20198710-198808

PNC11118A

main90430-10204i2CT..CV20198610-198710

PNC 11118A

main90430-12010i2CT..CV20198710-198808

PNC11118C

main90430-12010i2CT..CV20198610-198710

PNC 11118C

main90430-20004i1S..SV20198610-198710

PNC 11118A

main90430-20004i1S..SV20198710-198808

PNC11118A

main90430-24246i1S..SV20198710-198808

PNC11118B

main90430-24246i3SFE..SV21198610-198710

PNC 11118B

main90430-24246i2VZFE..VZV21198802-198808

main90430-33133i2CT..CV20198610-198710

PNC 11118B

main90430-33133i2CT..CV20198710-198808

PNC11118B

11118APLUG, STRAIGHT, NO.1

main90341-10005i2CT..CV20198610-198808

main90341-20002i1S..SV20198610-198808

11118BPLUG, STRAIGHT, NO.2

main90341-24090i1S..SV20198610-198808

main90341-32070i2CT..CV20198610-198808

11118CPLUG, STRAIGHT, NO.3

main90340-18001i1S..SV20198610

main90341-12002i2CT..CV20198610-198705

sub90341-12013

main90341-12013i2CT..CV20198705-198808

11119APIN, STRAIGHT, NO.1

main90250-06003i1S,3SFE..SV2#198610-198808

L=14,OD=6

main90250-06068i2CT..CV20198610-198808

L=11,OD=6

11122BUSH, INTAKE VALVE GUIDE

main11122-16020i2VZFE..VZV21198710-198808

STD

main11122-16020i3SFE..SV21198610-198710

STD,STD

main11122-63020i1S..SV20198610-198710

STD,STD

main11122-63020i1S..SV20198710-198808

STD

main11122-64010i2CT..CV20198710-198808

STD

main11122-64010i2CT..CV20198610-198710

STD,STD

main11123-16020i3SFE..SV21198610-198710

O/S 0.05,O/S 0.05

main11123-16020i3SFE..SV21,25198710-198808

O/S 0.05

main11123-63020i1S..SV20198610-198710

O/S 0.05,O/S 0.05

main11123-63020i1S..SV20198710-198808

O/S 0.05

main11123-64010i2CT..CV20198610-198710

O/S 0.05,O/S 0.05

main11123-64010i2CT..CV20198710-198808

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-16020i3SFE..SV21,25198710-198808

STD

main11122-16020i3SFE..SV21198610-198710

STD,STD

main11123-16020i3SFE..SV21,25198710-198808

O/S 0.05

main11123-16020i3SFE..SV21198610-198710

O/S 0.05,O/S 0.05

main11126-63020i1S..SV20198610-198710

STD,STD

main11126-63020i1S..SV20198710-198808

STD

main11126-64010i2CT..CV20198610-198710

STD,STD

sub11126-64030

main11126-64010i2CT..CV20198710-198808

STD

sub11126-64030

main11127-63020i1S..SV20198710-198808

O/S 0.05

main11127-63020i1S..SV20198610-198710

O/S 0.05,O/S 0.05

main11127-64010i2CT..CV20198710-198808

O/S 0.05

sub11127-64030

main11127-64010i2CT..CV20198610-198710

O/S 0.05,O/S 0.05

sub11127-64030

11155BOLT, STUD(FOR HEAD TO CAMSHAFT HOUSING)

main90116-08150i1S..SV20198610-198710

L=105,S=12&26

main90116-08150i1S..SV20198710-198808

11155APIN, RING W/HEAD

main90253-10004i2VZFE..VZV21198610-198808

main90253-11021i2CT..CV20198610-198808

main90253-13017i1S..SV20198610-198808

11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

main90116-06023i2CT..CV20198610-198808

11181PLATE, CYLINDER HEAD, REAR

main11181-62010i2VZFE..VZV21198802-198808

main11181-64010i2CT..CV20198610-198808

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-64010i2CT..CV20198610-198808

sub11182-64020

11183PLUG, SEMICIRCULAR

main11183-62010i2VZFE..VZV21198802-198808

main11183-64010i2CT..CV20198610-198808

main11183-74010i3SFE..SV21198610-198808

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-62020i2VZFE..VZV21198802-198808

NO.1

main11201-64041i2CT..CV20198610-198706

sub11201-64070

main11201-64070i2CT..CV20198706-198808

main11201-69085i1S..SV20198610-198808

main11201-74020i3SFE..SV21198610-198808

main11202-62020i2VZFE..VZV21198802-198808

NO.2

11213GASKET, CYLINDER HEAD COVER

main11213-62010i2VZFE..VZV21198802-198808

main11213-63010i1S..SV20198610-198706

sub11213-63011

main11213-63011i1S..SV20198706-198808

main11213-64040i2CT..CV20198610-198808

main11213-74020i3SFE..SV21198610-198808

12108CAP SUB-ASSY, OIL FILLER

main12180-13030i2CT..CV20198610-198808

sub12180-55010

main12180-62010i1S..SV20198710-198808

sub12180-62011

main12180-65010i2VZFE..VZV21198802-198808

sub12180-65011

12108AGASKET(FOR OIL FILLER CAP)

main90430-37004i2VZFE..VZV21198802-198808

main90430-37140i1S,3SFE..SV2#198610-198808

1302

2201

9017906070

main90179-06070

9021006007

main90210-06007

9161160816

main91611-60816

27 parts on this diagram · 4 diagrams in section
