FRONT SEAT & SEAT TRACK

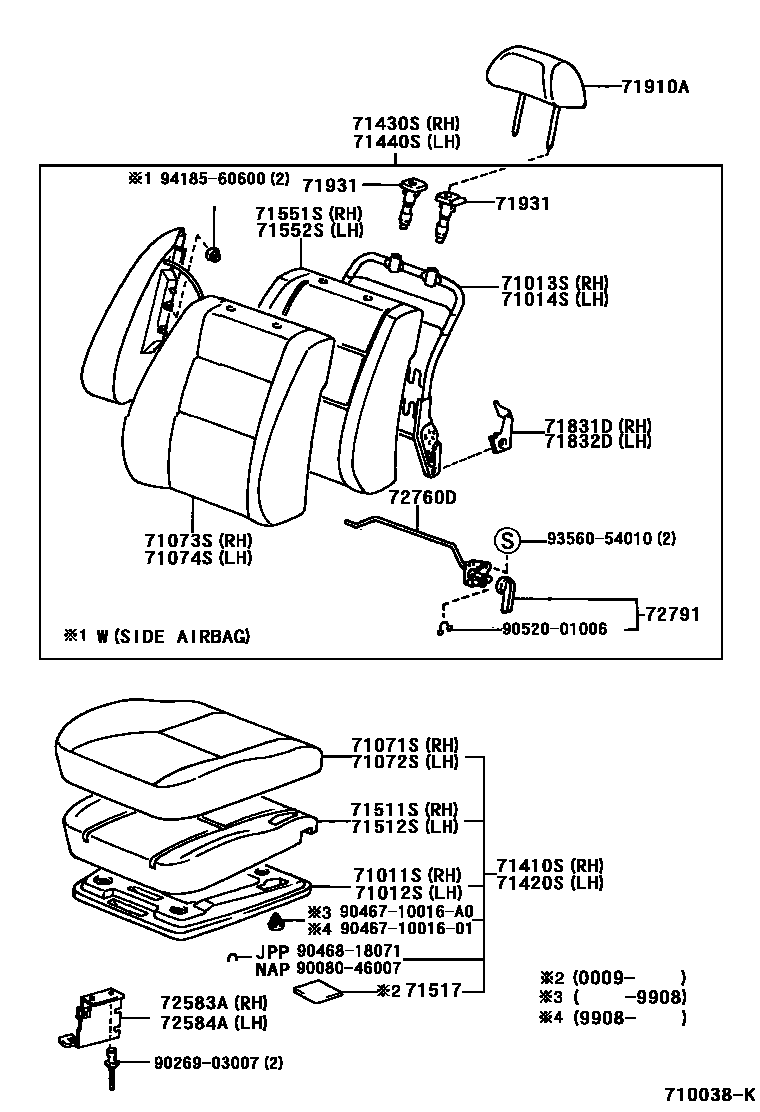

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-33010i199908
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-33010i199608-199908
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-33070i199908
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71013-33070i199608-199908
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-33490-B0i199608-199908
BLUE GRAY,TRIM1#
main71071-33490-E0i199608-199908
MEDIUM OAK,TRIM4#
main71071-33490-G0i199608-199908
SAGE,TRIM6#
main71071-33491-B2i199908
SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71071-33491-E2i199908
SEAT = TYPE A-*104,OAK,TRIM4#
main71071-33491-G2i199908
SEAT = TYPE A-*104,DK.SAGE,TRIM6#
main71071-33500-B0i199608-199708
BLUE GRAY,TRIM1#
main71071-33500-E0i199608-199708
MEDIUM OAK,TRIM4#
main71071-33500-G0i199608-199708
SAGE,TRIM6#
main71071-33501-B2i199708-199908
BLUE GRAY,TRIM1#
main71071-33501-B4i199908
BLUISH GRAY,TRIM1#
main71071-33501-B5i200008
W(POWER SEAT, DRIVER'S SIDE) & SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#
main71071-33501-E1i199902-199907
ACCENT PACKAGE(USA/HAWAII),MEDIUM OAK,TRIM40
main71071-33501-E3i199908
OAK,TRIM4#
main71071-33501-G2i199708-199908
SAGE,TRIM6#
main71071-33501-G3i199908
DK.SAGE,TRIM6#
main71071-33501-G4i200008
W(POWER SEAT, DRIVER'S SIDE) & SEAT = TYPE B-*104,DK.SAGE,TRIM6#
main71071-33510-B0i199608-199908
LEATHER SEAT,BLUE GRAY,TRIM1#
main71071-33510-B4i200008-200103
SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#
main71071-33510-E0i199608-199908
LEATHER SEAT,MEDIUM OAK,TRIM4#
main71071-33510-E4i199908-200008
LEATHER SEAT,OAK,TRIM4#
main71071-33541-B3i200008-200103
SEAT = TYPE C-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71071-33541-E3i200008-200103
SEAT = TYPE C-*104 & W(SEAT HEATER),OAK,TRIM4#
main71071-33542-B4i200103
SEAT = TYPE C-*104 & W(SEAT HEATER),BLUE GRAY,TRIM1#
main71071-33542-E4i200103
SEAT = TYPE C-*104 & W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71071-33670-B0i199805-199808
BLUE GRAY,TRIM1#
main71071-33670-E0i199805-199808
MEDIUM OAK,TRIM4#
main71071-33670-G0i199805-199808
SAGE,TRIM6#
main71071-33671-B0i199808-199908
BLUE GRAY,TRIM1#
main71071-33671-B2i199908
BLUISH GRAY,TRIM1#
main71071-33671-E0i199808-199908
MEDIUM OAK,TRIM4#
main71071-33671-E2i199908
OAK,TRIM4#
main71071-33671-G0i199808-199908
SAGE,TRIM6#
main71071-33671-G2i199908
DK.SAGE,TRIM6#
main71071-33720-B2i200103
SEAT = TYPE C-*104 & W(SIDE AIR BAG),BLUISH GRAY,TRIM1#
main71071-33720-E2i200103
SEAT = TYPE C-*104 & W(SIDE AIR BAG),OAK,TRIM4#
main71071-3T170-E0i200101
SEAT = TYPE D-*104,OAK,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-33421-B3i200008-200103
SEAT = TYPE C-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71072-33421-E3i200008-200103
SEAT = TYPE C-*104 & W(SEAT HEATER),OAK,TRIM4#
main71072-33422-B4i200103
SEAT = TYPE C-*104 & W(SEAT HEATER),BLUE GRAY,TRIM1#
main71072-33422-E4i200103
SEAT = TYPE C-*104 & W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71072-33490-B0i199608-199908
BLUE GRAY,TRIM1#
main71072-33490-E0i199608-199908
MEDIUM OAK,TRIM4#
main71072-33490-G0i199608-199908
SAGE,TRIM6#
main71072-33491-B2i199908
SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71072-33491-E2i199908
SEAT = TYPE A-*104,OAK,TRIM4#
main71072-33491-G2i199908
SEAT = TYPE A-*104,DK.SAGE,TRIM6#
main71072-33500-B0i199608-199708
BLUE GRAY,TRIM1#
main71072-33500-E0i199608-199708
MEDIUM OAK,TRIM4#
main71072-33500-G0i199608-199708
SAGE,TRIM6#
main71072-33501-B2i199708-199908
BLUE GRAY,TRIM1#
main71072-33501-B4i199908
BLUISH GRAY,TRIM1#
main71072-33501-B5i200008
W(POWER SEAT, DRIVER'S SIDE) & SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#
main71072-33501-E1i199708-199908
MEDIUM OAK,TRIM4#
main71072-33501-E3i199908
OAK,TRIM4#
main71072-33501-G2i199708-199908
SAGE,TRIM6#
main71072-33501-G3i199908
DK.SAGE,TRIM6#
main71072-33501-G4i200008
W(POWER SEAT, DRIVER'S SIDE) & SEAT = TYPE B-*104,DK.SAGE,TRIM6#
main71072-33510-B0i199608-199908
LEATHER SEAT,BLUE GRAY,TRIM1#
main71072-33510-B3i199908-200008
LEATHER SEAT,BLUISH GRAY,TRIM1#
main71072-33510-E0i199608-199908
LEATHER SEAT,MEDIUM OAK,TRIM4#
main71072-33510-E3i199908-200008
LEATHER SEAT,OAK,TRIM4#
main71072-33670-B0i199805-199808
BLUE GRAY,TRIM1#
main71072-33670-E0i199805-199808
MEDIUM OAK,TRIM4#
main71072-33670-G0i199805-199808
SAGE,TRIM6#
main71072-33671-B0i199808-199908
BLUE GRAY,TRIM1#
main71072-33671-B2i199908
BLUISH GRAY,TRIM1#
main71072-33671-E0i199808-199908
MEDIUM OAK,TRIM4#
main71072-33671-E2i199908
OAK,TRIM4#
main71072-33671-G0i199808-199908
SAGE,TRIM6#
main71072-33671-G2i199908
DK.SAGE,TRIM6#
main71072-33720-B2i200103
SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#
main71072-33720-E2i200103
SEAT = TYPE C-*104,OAK,TRIM4#
main71072-3T100-E0i200101
SEAT = TYPE D-*104,OAK,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71027-33110-E0i200101-200107
SEAT = TYPE D-*104,OAK,TRIM4#
main71027-33120-E0i200101-200107
W(*80,SIDE) & SEAT = TYPE D-*104,OAK,TRIM4#
main71073-33490-B0i199608-199908
BLUE GRAY,TRIM1#
main71073-33490-E0i199608-199908
MEDIUM OAK,TRIM4#
main71073-33490-G0i199608-199908
SAGE,TRIM6#
main71073-33491-B2i199908-200107
SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71073-33491-E2i199908-200107
SEAT = TYPE A-*104,OAK,TRIM4#
main71073-33491-G2i199908-200107
SEAT = TYPE A-*104,DK.SAGE,TRIM6#
main71073-33500-B0i199608-199708
BLUE GRAY,TRIM1#
main71073-33500-E0i199608-199708
MEDIUM OAK,TRIM4#
main71073-33500-G0i199608-199708
SAGE,TRIM6#
main71073-33501-B2i199708-199908
BLUE GRAY,TRIM1#
main71073-33501-B4i199908-200107
BLUISH GRAY,TRIM1#
main71073-33501-E1i199902-199907
ACCENT PACKAGE(USA/HAWAII),MEDIUM OAK,TRIM40
main71073-33501-E3i199908-200107
OAK,TRIM4#
main71073-33501-G2i199708-199908
SAGE,TRIM6#
main71073-33501-G3i199908-200107
DK.SAGE,TRIM6#
main71073-33510-B0i199608-199908
LEATHER SEAT,BLUE GRAY,TRIM1#
main71073-33510-B3i199908-200008
LEATHER SEAT,BLUISH GRAY,TRIM1#
main71073-33510-E0i199608-199908
LEATHER SEAT,MEDIUM OAK,TRIM4#
main71073-33510-E3i200008-200103
SEAT = TYPE C-*104,OAK,TRIM4#
main71073-33690-B0i199708-199908
W(*80, SIDE),BLUE GRAY,TRIM1#
main71073-33690-E0i199708-199908
W(*80, SIDE),MEDIUM OAK,TRIM4#
main71073-33690-G0i199708-199908
W(*80, SIDE),SAGE,TRIM6#
main71073-33691-B2i199908-200107
W(*80,SIDE) & SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71073-33691-E2i199908-200107
W(*80,SIDE) & SEAT = TYPE A-*104,OAK,TRIM4#
main71073-33691-G2i199908-200107
W(*80,SIDE) & SEAT = TYPE A-*104,DK.SAGE,TRIM6#
main71073-33700-B0i199708-199908
LEATHER SEAT & W(*80,SIDE),BLUE GRAY,TRIM1#
main71073-33700-B3i200008-200103
W(*80,SIDE) & SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#
main71073-33700-E0i199708-199908
LEATHER SEAT & W(*80,SIDE),MEDIUM OAK,TRIM4#
main71073-33700-E3i199908-200008
LEATHER SEAT & W(*80,SIDE),OAK,TRIM4#
main71073-33701-B5i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG),BLUE GRAY,TRIM1#
main71073-33701-E5i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG),MEDIUM OAK,TRIM4#
main71073-33710-B1i199708-199908
W(*80, SIDE),BLUE GRAY,TRIM1#
main71073-33710-B2i199908-200107
W(*80, SIDE),BLUISH GRAY,TRIM1#
main71073-33710-E1i199708-199908
W(*80, SIDE),MEDIUM OAK,TRIM4#
main71073-33710-E2i199908-200107
W(*80, SIDE),OAK,TRIM4#
main71073-33710-G1i199708-199908
W(*80, SIDE),SAGE,TRIM6#
main71073-33710-G2i199908-200107
W(*80, SIDE),DK.SAGE,TRIM6#
main71073-33740-B3i200008-200103
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),BLUISH GRAY,TRIM1#
main71073-33740-E3i200008-200103
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),OAK,TRIM4#
main71073-33741-B4i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),BLUE GRAY,TRIM1#
main71073-33741-E4i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),MEDIUM OAK,TRIM4#
main71073-33880-B0i199805-199808
BLUE GRAY,TRIM1#
main71073-33880-E0i199805-199808
MEDIUM OAK,TRIM4#
main71073-33880-G0i199805-199808
SAGE,TRIM6#
main71073-33881-B0i199808-199908
BLUE GRAY,TRIM1#
main71073-33881-B2i199908-200107
BLUISH GRAY,TRIM1#
main71073-33881-E0i199808-199908
MEDIUM OAK,TRIM4#
main71073-33881-E2i199908-200107
OAK,TRIM4#
main71073-33881-G0i199808-199908
SAGE,TRIM6#
main71073-33881-G2i199908-200107
DK.SAGE,TRIM6#
main71073-33891-B0i199808-199908
W(*80, SIDE),BLUE GRAY,TRIM1#; W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE),BLUE GRAY,TRIM1#
main71073-33891-E0i199808-199908
W(*80, SIDE),MEDIUM OAK,TRIM4#; W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE),MEDIUM OAK,TRIM4#
main71073-33891-G0i199808-199908
W(*80, SIDE),SAGE,TRIM6#; W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE),SAGE,TRIM6#
main71073-3T260-B0i200008-200107
W(POWER SEAT, DRIVER'S SIDE) & SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#
main71073-3T260-G0i200008-200107
W(POWER SEAT, DRIVER'S SIDE) & SEAT = TYPE B-*104,SAGE,TRIM6#
main71073-3T270-B0i200008-200107
W(*80,SIDE) & SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#
main71073-3T270-G0i200008-200107
W(*80,SIDE) & SEAT = TYPE B-*104,SAGE,TRIM6#
main71073-3T280-B1i200008-200103
SEAT = TYPE C-*104 & W(SEAT HEATER),BLUE GRAY,TRIM1#
main71073-3T280-E1i200008-200103
SEAT = TYPE C-*104 & W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71073-3T281-B1i200103-200107
SEAT = TYPE C-*104 & W(SEAT HEATER),BLUE GRAY,TRIM1#
main71073-3T281-E1i200103-200107
SEAT = TYPE C-*104 & W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71074-33760-B2i200103-200107
SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#
main71074-33760-E2i200103-200107
SEAT = TYPE C-*104,OAK,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71028-33060-E0i200101-200107
SEAT = TYPE D-*104,OAK,TRIM4#
main71028-33070-E0i200101-200107
W(*80,SIDE) & SEAT = TYPE D-*104,OAK,TRIM4#
main71073-33490-B0i199608-199908
BLUE GRAY,TRIM1#
main71073-33490-E0i199608-199908
MEDIUM OAK,TRIM4#
main71073-33490-G0i199608-199908
SAGE,TRIM6#
main71073-33491-B2i199908-200107
SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71073-33491-E2i199908-200107
SEAT = TYPE A-*104,OAK,TRIM4#
main71073-33491-G2i199908-200107
SEAT = TYPE A-*104,DK.SAGE,TRIM6#
main71073-33501-E1i199902-199907
ACCENT PACKAGE(USA/HAWAII),MEDIUM OAK,TRIM40
main71073-33880-B0i199805-199808
BLUE GRAY,TRIM1#
main71073-33880-E0i199805-199808
MEDIUM OAK,TRIM4#
main71073-33880-G0i199805-199808
SAGE,TRIM6#
main71073-33881-B0i199808-199908
BLUE GRAY,TRIM1#
main71073-33881-B2i199908-200107
BLUISH GRAY,TRIM1#
main71073-33881-E0i199808-199908
MEDIUM OAK,TRIM4#
main71073-33881-E2i199908-200107
OAK,TRIM4#
main71073-33881-G0i199808-199908
SAGE,TRIM6#
main71073-33881-G2i199908-200107
DK.SAGE,TRIM6#
main71073-3T260-B0i200008-200107
W(POWER SEAT, DRIVER'S SIDE) & SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#
main71073-3T260-G0i200008-200107
W(POWER SEAT, DRIVER'S SIDE) & SEAT = TYPE B-*104,SAGE,TRIM6#
main71074-33350-B0i199608-199708
BLUE GRAY,TRIM1#
main71074-33350-E0i199608-199708
MEDIUM OAK,TRIM4#
main71074-33350-G0i199608-199708
SAGE,TRIM6#
main71074-33351-B1i199708-199908
BLUE GRAY,TRIM1#
main71074-33351-B2i199908-200107
BLUISH GRAY,TRIM1#
main71074-33351-E1i199708-199908
MEDIUM OAK,TRIM4#
main71074-33351-E2i199908-200107
OAK,TRIM4#
main71074-33351-G1i199708-199908
SAGE,TRIM6#
main71074-33351-G2i199908-200107
DK.SAGE,TRIM6#
main71074-33420-B0i199608-199908
LEATHER SEAT,BLUE GRAY,TRIM1#
main71074-33420-B2i200008-200103
SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#
main71074-33420-E0i199608-199908
LEATHER SEAT,MEDIUM OAK,TRIM4#
main71074-33420-E2i199908-200008
LEATHER SEAT,OAK,TRIM4#
main71074-33421-B4i200103-200107
SEAT = TYPE C-*104,BLUE GRAY,TRIM1#
main71074-33421-E4i200103-200107
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
main71074-33510-B0i199708-199908
W(*80, SIDE),BLUE GRAY,TRIM1#
main71074-33510-E0i199708-199908
W(*80, SIDE),MEDIUM OAK,TRIM4#
main71074-33510-G0i199708-199908
W(*80, SIDE),SAGE,TRIM6#
main71074-33511-B2i199908-200107
W(*80,SIDE) & SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71074-33511-E2i199908-200107
W(*80,SIDE) & SEAT = TYPE A-*104,OAK,TRIM4#
main71074-33511-G2i199908-200107
W(*80,SIDE) & SEAT = TYPE A-*104,DK.SAGE,TRIM6#
main71074-33560-B0i199708-199908
LEATHER SEAT & W(*80,SIDE),BLUE GRAY,TRIM1#
main71074-33560-B2i200008-200103
W(*80,SIDE) & SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#
main71074-33560-E0i199708-199908
LEATHER SEAT & W(*80,SIDE),MEDIUM OAK,TRIM4#
main71074-33560-E2i200008-200103
W(*80,SIDE) & SEAT = TYPE C-*104,OAK,TRIM4#
main71074-33561-B4i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG),BLUE GRAY,TRIM1#
main71074-33561-E4i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG),MEDIUM OAK,TRIM4#
main71074-33570-B1i199708-199908
W(*80, SIDE),BLUE GRAY,TRIM1#
main71074-33570-B2i199908-200107
W(*80, SIDE),BLUISH GRAY,TRIM1#
main71074-33570-E1i199708-199908
W(*80, SIDE),MEDIUM OAK,TRIM4#
main71074-33570-E2i199908-200107
W(*80, SIDE),OAK,TRIM4#
main71074-33570-G1i199708-199908
W(*80, SIDE),SAGE,TRIM6#
main71074-33570-G2i199908-200107
W(*80, SIDE),DK.SAGE,TRIM6#
main71074-33600-B3i200008-200103
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),BLUISH GRAY,TRIM1#
main71074-33600-E3i200008-200103
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),OAK,TRIM4#
main71074-33601-B4i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),BLUE GRAY,TRIM1#
main71074-33601-E4i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),MEDIUM OAK,TRIM4#
main71074-33721-B0i199808-199908
W(*80, SIDE),BLUE GRAY,TRIM1#
main71074-33721-E0i199808-199908
W(*80, SIDE),MEDIUM OAK,TRIM4#
main71074-33721-G0i199808-199908
W(*80, SIDE),SAGE,TRIM6#
main71074-33820-E0i199902-199907
ACCENT PACKAGE(USA/HAWAII) & W(*80,SIDE),MEDIUM OAK,TRIM40
main71074-33880-B1i200008-200103
SEAT = TYPE C-*104 & W(SEAT HEATER),BLUE GRAY,TRIM1#
main71074-33880-E1i200008-200103
SEAT = TYPE C-*104 & W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71074-33881-B1i200103-200107
SEAT = TYPE C-*104 & W(SEAT HEATER),BLUE GRAY,TRIM1#
main71074-33881-E1i200103-200107
SEAT = TYPE C-*104 & W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71074-3T010-B0i200008-200107
W(POWER SEAT, DRIVER'S SIDE & *80,SIDE) & SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#
main71074-3T010-G0i200008-200107
W(POWER SEAT, DRIVER'S SIDE & *80,SIDE) & SEAT = TYPE B-*104,SAGE,TRIM6#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-33030-B0i199608-199908
***,BLUE GRAY,TRIM1#
main71410-33030-E0i199608-199908
***,MEDIUM OAK,TRIM4#
main71410-33030-G0i199608-199908
***,SAGE,TRIM6#
main71410-33031-B2i199908
***,SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71410-33031-E2i199908
***,SEAT = TYPE A-*104,OAK,TRIM4#
main71410-33031-G2i199908
***,SEAT = TYPE A-*104,DK.SAGE,TRIM6#
main71410-33160-B0i199608-199708
***,BLUE GRAY,TRIM1#
main71410-33160-E0i199608-199708
***,MEDIUM OAK,TRIM4#
main71410-33160-G0i199608-199708
***,SAGE,TRIM6#
main71410-33161-B2i199708-199908
***,BLUE GRAY,TRIM1#
main71410-33161-B4i199908
***,BLUISH GRAY,TRIM1#
main71410-33161-B5i200008
***,W(POWER SEAT, DRIVER'S SIDE) & SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#
main71410-33161-E1i199902-199907
***,ACCENT PACKAGE(USA/HAWAII),MEDIUM OAK,TRIM40
main71410-33161-E3i199908
***,OAK,TRIM4#
main71410-33161-G2i199708-199908
***,SAGE,TRIM6#
main71410-33161-G3i199908
***,DK.SAGE,TRIM6#
main71410-33161-G4i200008
***,W(POWER SEAT, DRIVER'S SIDE) & SEAT = TYPE B-*104,DK.SAGE,TRIM6#
main71410-33170-B0i199608-199908
***,LEATHER SEAT,BLUE GRAY,TRIM1#
main71410-33170-B4i199908-200008
***,LEATHER SEAT,BLUISH GRAY,TRIM1#
main71410-33170-E0i199608-199908
***,LEATHER SEAT,MEDIUM OAK,TRIM4#; ***,W(LEATHER SEAT & POWER SEAT),MEDIUM OAK,TRIM4#
main71410-33170-E4i200008-200103
***,SEAT = TYPE C-*104,OAK,TRIM4#
main71410-33481-B3i200008-200103
***,SEAT = TYPE C-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71410-33481-E3i200008-200103
***,SEAT = TYPE C-*104 & W(SEAT HEATER),OAK,TRIM4#
main71410-33482-B3i200103
***,SEAT = TYPE C-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71410-33482-E3i200103
***,SEAT = TYPE C-*104 & W(SEAT HEATER),OAK,TRIM4#
main71410-33600-B0i199805-199808
***,BLUE GRAY,TRIM1#
main71410-33600-E0i199805-199808
***,MEDIUM OAK,TRIM4#
main71410-33600-G0i199805-199808
***,SAGE,TRIM6#
main71410-33601-B0i199808-199908
***,BLUE GRAY,TRIM1#
main71410-33601-B2i199908
***,BLUISH GRAY,TRIM1#
main71410-33601-E0i199808-199908
***,MEDIUM OAK,TRIM4#
main71410-33601-E2i199908
***,OAK,TRIM4#
main71410-33601-G0i199808-199908
***,SAGE,TRIM6#
main71410-33601-G2i199908
***,DK.SAGE,TRIM6#
main71410-33620-B2i200103
***,SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#
main71410-33620-E2i200103
***,SEAT = TYPE C-*104,OAK,TRIM4#
main71410-3T170-E0i200101
***,SEAT = TYPE D-*104,OAK,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-33190-B0i199608-199908
***,BLUE GRAY,TRIM1#
main71420-33190-E0i199608-199908
***,MEDIUM OAK,TRIM4#
main71420-33190-G0i199608-199908
***,SAGE,TRIM6#
main71420-33191-B2i199908
***,SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71420-33191-E2i199908
***,SEAT = TYPE A-*104,OAK,TRIM4#
main71420-33191-G2i199908
***,SEAT = TYPE A-*104,DK.SAGE,TRIM6#
main71420-33200-B0i199608-199708
***,BLUE GRAY,TRIM1#
main71420-33200-E0i199608-199708
***,MEDIUM OAK,TRIM4#
main71420-33200-G0i199608-199708
***,SAGE,TRIM6#
main71420-33201-B2i199708-199908
***,BLUE GRAY,TRIM1#
main71420-33201-B4i199908
***,BLUISH GRAY,TRIM1#
main71420-33201-B5i200008
***,W(POWER SEAT, DRIVER'S SIDE) & SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#
main71420-33201-E1i199902-199907
***,ACCENT PACKAGE(USA/HAWAII),MEDIUM OAK,TRIM40
main71420-33201-E3i199908
***,OAK,TRIM4#
main71420-33201-G2i199708-199908
***,SAGE,TRIM6#
main71420-33201-G3i199908
***,DK.SAGE,TRIM6#
main71420-33201-G4i200008
***,W(POWER SEAT, DRIVER'S SIDE) & SEAT = TYPE B-*104,DK.SAGE,TRIM6#
main71420-33330-B0i199608-199908
***,LEATHER SEAT,BLUE GRAY,TRIM1#
main71420-33330-B3i199908-200008
***,LEATHER SEAT,BLUISH GRAY,TRIM1#
main71420-33330-E0i199608-199908
***,LEATHER SEAT,MEDIUM GRAY,TRIM4#
main71420-33330-E3i200008-200103
***,SEAT = TYPE C-*104,OAK,TRIM4#
main71420-33471-B3i200008-200103
***,SEAT = TYPE C-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71420-33471-E3i200008-200103
***,SEAT = TYPE C-*104 & W(SEAT HEATER),OAK,TRIM4#
main71420-33472-B3i200103
***,SEAT = TYPE C-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71420-33472-E3i200103
***,SEAT = TYPE C-*104 & W(SEAT HEATER),OAK,TRIM4#
main71420-33590-B0i199805-199808
***,BLUE GRAY,TRIM1#
main71420-33590-E0i199805-199808
***,MEDIUM OAK,TRIM4#
main71420-33590-G0i199805-199808
***,SAGE,TRIM6#
main71420-33591-B0i199808-199908
***,BLUE GRAY,TRIM1#
main71420-33591-B2i199908
***,BLUISH GRAY,TRIM1#
main71420-33591-E0i199808-199908
***,MEDIUM OAK,TRIM4#
main71420-33591-E2i199908
***,OAK,TRIM4#
main71420-33591-G0i199808-199908
***,SAGE,TRIM6#
main71420-33591-G2i199908
***,DK.SAGE,TRIM6#
main71420-33620-B2i200103
***,SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#
main71420-33620-E2i200103
***,SEAT = TYPE C-*104,OAK,TRIM4#
main71420-3T060-E0i200101
***,SEAT = TYPE D-*104,OAK,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71040-33010-B0i199805-199808
***,BLUE GRAY,TRIM1#
main71040-33010-E0i199805-199808
***,MEDIUM OAK,TRIM4#
main71040-33010-G0i199805-199808
***,SAGE,TRIM6#
main71040-33011-B0i199808-199908
***,BLUE GRAY,TRIM1#
main71040-33011-E0i199808-199908
***,MEDIUM OAK,TRIM4#
main71040-33011-G0i199808-199908
***,SAGE,TRIM6#
main71040-33012-B2i199908-200107
***,BLUISH GRAY,TRIM1#
main71040-33012-E2i199908-200107
***,OAK,TRIM4#
main71040-33012-G2i199908-200107
***,DK.SAGE,TRIM6#
main71040-33021-B0i199808-199908
***,W(*80, SIDE),BLUE GRAY,TRIM1#
main71040-33021-E0i199808-199908
***,W(*80, SIDE),MEDIUM OAK,TRIM4#
main71040-33021-G0i199808-199908
***,W(*80, SIDE),SAGE,TRIM6#
main71040-33190-B0i200008-200107
***,SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#
main71040-33190-G0i200008-200107
***,SEAT = TYPE B-*104,DK.SAGE,TRIM6#
main71040-33200-B1i200008-200103
***,SEAT = TYPE C-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71040-33200-E1i200008-200103
***,SEAT = TYPE C-*104 & W(SEAT HEATER),OAK,TRIM4#
main71040-33201-B0i200103-200107
***,SEAT = TYPE C-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71040-33201-E0i200103-200107
***,SEAT = TYPE C-*104 & W(SEAT HEATER),OAK,TRIM4#
main71040-33220-B0i200008-200107
W(POWER SEAT, DRIVER'S SIDE & *80,SIDE) & SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#
main71040-33220-G0i200008-200107
W(POWER SEAT, DRIVER'S SIDE & *80,SIDE) & SEAT = TYPE B-*104,DK.SAGE,TRIM6#
main71040-33310-E0i200101-200107
***,SEAT = TYPE D-*104,OAK,TRIM4#
main71040-33320-E0i200101-200107
W(*80,SIDE) & SEAT = TYPE D-*104,OAK,TRIM4#
main71430-33170-B0i199608-199908
***,BLUE GRAY,TRIM1#
main71430-33170-E0i199608-199908
***,MEDIUM OAK,TRIM4#
main71430-33170-G0i199608-199908
***,SAGE,TRIM6#
main71430-33171-B2i199908-200107
***,SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71430-33171-E2i199908-200107
***,SEAT = TYPE A-*104,OAK,TRIM4#
main71430-33171-G2i199908-200107
***,SEAT = TYPE A-*104,DK.SAGE,TRIM6#
main71430-33180-B0i199608-199708
***,BLUE GRAY,TRIM1#
main71430-33180-E0i199608-199708
***,MEDIUM OAK,TRIM4#
main71430-33180-G0i199608-199708
***,SAGE,TRIM6#
main71430-33181-B1i199708-199908
***,BLUE GRAY,TRIM1#
main71430-33181-E1i199708-199908
***,MEDIUM OAK,TRIM4#
main71430-33181-G1i199708-199908
***,SAGE,TRIM6#
main71430-33182-B2i199908-200107
***,BLUISH GRAY,TRIM1#
main71430-33182-E2i199908-200107
***,OAK,TRIM4#
main71430-33182-G2i199908-200107
***,DK.SAGE,TRIM6#
main71430-33190-B0i199608-199908
***,LEATHER SEAT,BLUE GRAY,TRIM1#
main71430-33190-E0i199608-199908
***,LEATHER SEAT,MEDIUM OAK,TRIM4#
main71430-33191-B3i199908-200008
***,LEATHER SEAT,BLUISH GRAY,TRIM1#
main71430-33191-E3i200008-200103
***,SEAT = TYPE C-*104,OAK,TRIM4#
main71430-33680-B0i199708-199908
W(*80,SIDE),BLUE GRAY,TRIM1#
main71430-33680-E0i199708-199908
W(*80,SIDE),MEDIUM OAK,TRIM4#
main71430-33680-G0i199708-199908
W(*80,SIDE),SAGE,TRIM6#
main71430-33681-B2i199908-200107
W(*80,SIDE) & SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71430-33681-E2i199908-200107
W(*80,SIDE) & SEAT = TYPE A-*104,OAK,TRIM4#
main71430-33681-G2i199908-200107
W(*80,SIDE) & SEAT = TYPE A-*104,DK.SAGE,TRIM6#
main71430-33690-B0i199708-199908
W(*80,SIDE & LEATHER SEAT),BLUE GRAY,TRIM1#
main71430-33690-E0i199708-199908
W(*80,SIDE & LEATHER SEAT),MEDIUM OAK,TRIM4#
main71430-33691-B3i199908-200008
LEATHER SEAT & W(*80,SIDE),BLUISH GRAY,TRIM1#
main71430-33691-E3i200008-200103
W(*80,SIDE) & SEAT = TYPE C-*104,OAK,TRIM4#
main71430-33692-B3i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG),BLUISH GRAY,TRIM1#
main71430-33692-E3i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG),OAK,TRIM4#
main71430-33700-B1i199708-199908
W(*80,SIDE),BLUE GRAY,TRIM1#
main71430-33700-E1i199902-199907
ACCENT PACKAGE(USA/HAWAII) & W(*80,SIDE & POWER SEAT),MEDIUM OAK,TRIM40
main71430-33700-G1i199708-199908
W(*80,SIDE),SAGE,TRIM6#
main71430-33701-B2i199908-200107
W(*80, SIDE),BLUISH GRAY,TRIM1#
main71430-33701-E2i199908-200107
W(*80, SIDE),OAK,TRIM4#
main71430-33701-G2i199908-200107
W(*80,SIDE),DK.SAGE,TRIM6#
main71430-33732-B3i200008-200103
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),BLUISH GRAY,TRIM1#
main71430-33732-E3i200008-200103
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),OAK,TRIM4#
main71430-33733-B3i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),BLUISH GRAY,TRIM1#
main71430-33733-E3i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),OAK,TRIM4#
main71440-33841-B2i200103-200107
***,SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#
main71440-33841-E2i200103-200107
***,SEAT = TYPE C-*104,OAK,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71040-33010-B0i199805-199808
***,BLUE GRAY,TRIM1#
main71040-33010-E0i199805-199808
***,MEDIUM OAK,TRIM4#
main71040-33010-G0i199805-199808
***,SAGE,TRIM6#
main71040-33011-B0i199808-199908
***,BLUE GRAY,TRIM1#
main71040-33011-E0i199808-199908
***,MEDIUM OAK,TRIM4#
main71040-33011-G0i199808-199908
***,SAGE,TRIM6#
main71040-33012-B2i199908-200107
***,BLUISH GRAY,TRIM1#
main71040-33012-E2i199908-200107
***,OAK,TRIM4#
main71040-33012-G2i199908-200107
***,DK.SAGE,TRIM6#
main71040-33190-B0i200008-200107
***,SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#
main71040-33190-G0i200008-200107
***,SEAT = TYPE B-*104,DK.SAGE,TRIM6#
main71070-33060-B0i200008-200107
W(POWER SEAT, DRIVER'S SIDE & *80,SIDE) & SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#
main71070-33060-G0i200008-200107
W(POWER SEAT, DRIVER'S SIDE & *80,SIDE) & SEAT = TYPE B-*104,DK.SAGE,TRIM6#
main71070-33070-B1i200008-200103
***,SEAT = TYPE C-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71070-33070-E1i200008-200103
***,SEAT = TYPE C-*104 & W(SEAT HEATER),OAK,TRIM4#
main71070-33071-B0i200103-200107
***,SEAT = TYPE C-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71070-33071-E0i200103-200107
***,SEAT = TYPE C-*104 & W(SEAT HEATER),OAK,TRIM4#
main71070-33190-E0i200101-200107
***,SEAT = TYPE D-*104,OAK,TRIM4#
main71070-33200-E0i200101-200107
W(*80,SIDE) & SEAT = TYPE D-*104,OAK,TRIM4#
main71430-33170-B0i199608-199908
***,BLUE GRAY,TRIM1#
main71430-33170-E0i199608-199908
***,MEDIUM OAK,TRIM4#
main71430-33170-G0i199608-199908
***,SAGE,TRIM6#
main71430-33181-E1i199902-199907
***,ACCENT PACKAGE(USA/HAWAII) & W(POWER SEAT),MEDIUM OAK,TRIM40
main71440-33400-B0i199608-199708
***,BLUE GRAY,TRIM1#
main71440-33400-E0i199608-199708
***,MEDIUM OAK,TRIM4#
main71440-33400-G0i199608-199708
***,SAGE,TRIM6#
main71440-33401-B1i199708-199908
***,BLUE GRAY,TRIM1#
main71440-33401-E1i199708-199908
***,MEDIUM OAK,TRIM4#
main71440-33401-G1i199708-199908
***,SAGE,TRIM6#
main71440-33402-B2i199908-200107
***,BLUISH GRAY,TRIM1#
main71440-33402-E2i199908-200107
***,OAK,TRIM4#
main71440-33402-G2i199908-200107
***,DK.SAGE,TRIM6#
main71440-33420-B0i199608-199908
***,LEATHER SEAT,BLUE GRAY,TRIM1#
main71440-33420-E0i199608-199908
***,LEATHER SEAT,MEDIUM OAK,TRIM4#
main71440-33421-B2i199908-200008
***,LEATHER SEAT,BLUISH GRAY,TRIM1#
main71440-33421-E2i200008-200103
***,SEAT = TYPE C-*104,OAK,TRIM4#
main71440-33422-B2i200103-200107
***,SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#
main71440-33422-E2i200103-200107
***,SEAT = TYPE C-*104,OAK,TRIM4#
main71440-33430-B0i199608-199710
***,W(LEATHER SEAT & POWER SEAT),BLUE GRAY,TRIM1#
main71440-33430-E0i199608-199710
***,W(LEATHER SEAT & POWER SEAT),MEDIUM OAK,TRIM4#
main71440-33590-B0i199708-199908
W(*80, SIDE),BLUE GRAY,TRIM1#
main71440-33590-E0i199708-199908
W(*80, SIDE),MEDIUM OAK,TRIM4#
main71440-33590-G0i199708-199908
W(*80, SIDE),SAGE,TRIM6#
main71440-33591-B2i199908-200107
W(*80,SIDE) & SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71440-33591-E2i199908-200107
W(*80,SIDE) & SEAT = TYPE A-*104,OAK,TRIM4#
main71440-33591-G2i199908-200107
W(*80,SIDE) & SEAT = TYPE A-*104,DK.SAGE,TRIM6#
main71440-33600-B0i199708-199908
LEATHER SEAT & W(*80,SIDE),BLUE GRAY,TRIM1#
main71440-33600-E0i199708-199908
LEATHER SEAT & W(*80,SIDE),MEDIUM OAK,TRIM4#
main71440-33601-B2i199908-200008
LEATHER SEAT & W(*80,SIDE),BLUISH GRAY,TRIM1#
main71440-33601-E2i200008-200103
W(*80,SIDE) & SEAT = TYPE C-*104,OAK,TRIM4#
main71440-33602-B2i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG),BLUISH GRAY,TRIM1#
main71440-33602-E2i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG),OAK,TRIM4#
main71440-33610-B1i199708-199908
W(*80, SIDE),BLUE GRAY,TRIM1#
main71440-33610-E1i199708-199908
W(*80, SIDE),MEDIUM OAK,TRIM4#
main71440-33610-G1i199708-199908
W(*80, SIDE),SAGE,TRIM6#
main71440-33611-B2i199908-200107
W(*80, SIDE),BLUISH GRAY,TRIM1#
main71440-33611-E2i199908-200107
W(*80, SIDE),OAK,TRIM4#
main71440-33611-G2i199908-200107
W(*80,SIDE),DK.SAGE,TRIM6#
main71440-33642-B3i200008-200103
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),BLUISH GRAY,TRIM1#
main71440-33642-E3i200008-200103
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),OAK,TRIM4#
main71440-33643-B3i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),BLUISH GRAY,TRIM1#
main71440-33643-E3i200103-200107
SEAT = TYPE C-*104 & W(SIDE AIR BAG & SEAT HEATER),OAK,TRIM4#
main71440-33781-B0i199808-199908
***,W(*80, SIDE),BLUE GRAY,TRIM1#
main71440-33781-E0i199808-199908
***,W(*80, SIDE),MEDIUM OAK,TRIM4#
main71440-33781-G0i199808-199908
***,W(*80, SIDE),SAGE,TRIM6#
main71440-33870-E0i199902-199907
ACCENT PACKAGE(USA/HAWAII) & W(*80,SIDE),MEDIUM OAK,TRIM40
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-33090i199608-199908
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-33090i199608-199908
71517CLOTH, FRONT SEAT CUSHION UNDER
main71517-33010×4i200008
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-33050i199608-199908
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-33050i199608-199908
71831DCOVER, FRONT SEAT HINGE, RH
main71831-33010×2i199608-199809
main71831-33020×2i199809-199908
main71831-33021×2i200004
71832DCOVER, FRONT SEAT HINGE, LH
main71832-33010×2i199608-199809
main71832-33020×2i199908-200004
main71832-33021×2i200004
71910AHEADREST ASSY, FRONT SEAT
main71910-33170-B0×2i199608-199908
BLUE GRAY,TRIM1#
main71910-33170-E0×2i199608-199908
MEDIUM OAK,TRIM4#
main71910-33170-G0×2i199608-199908
SAGE,TRIM6#
main71910-33171-B2×2i199908
SEAT = TYPE A-*104,BLUISH GRAY,TRIM1#
main71910-33171-E2×2i199908
SEAT = TYPE A-*104,OAK,TRIM4#
main71910-33171-G2×2i199908
SEAT = TYPE A-*104,DK.SAGE,TRIM6#
main71910-33240-B0×2i199608-199708
BLUE GRAY,TRIM1#
main71910-33240-E0×2i199608-199708
MEDIUM OAK,TRIM4#
main71910-33240-G0×2i199608-199708
SAGE,TRIM6#
main71910-33241-B2×2i199708-199908
BLUE GRAY,TRIM1#
main71910-33241-B5×2i199908
BLUISH GRAY,TRIM1#
main71910-33241-B6×2i200008
SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#
main71910-33241-E1×2i199708-199908
MEDIUM OAK,TRIM4#
main71910-33241-E4×2i199908
OAK,TRIM4#
main71910-33241-G2×2i199708-199908
SAGE,TRIM6#
main71910-33241-G3×2i199908
DK.SAGE,TRIM6#
main71910-33241-G4×2i200008
SEAT = TYPE B-*104,DK.SAGE,TRIM6#
main71910-33260-B0×2i199608-199908
LEATHER SEAT,BLUE GRAY,TRIM1#
main71910-33260-B4×2i199908-200012
SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#
main71910-33260-E0×2i199608-199908
LEATHER SEAT,MEDIUM OAK,TRIM4#
main71910-33260-E4×2i199908-200012
SEAT = TYPE C-*104,OAK,TRIM4#
main71910-33290-B0×2i200103
SEAT = TYPE C-*104,BLUISH GRAY,TRIM1#
main71910-33290-E0×2i200103
SEAT = TYPE C-*104,OAK,TRIM4#
main71910-33310-B0i199805-199808
BLUE GRAY,TRIM1#
main71910-33310-E0i199805-199808
MEDIUM OAK,TRIM4#
main71910-33310-G0i199805-199808
SAGE,TRIM6#
main71910-33311-B0×2i199808-199908
BLUE GRAY,TRIM1#
main71910-33311-B2×2i199908
BLUISH GRAY,TRIM1#
main71910-33311-E0×2i199808-199908
MEDIUM OAK,TRIM4#
main71910-33311-E2×2i199908
OAK,TRIM4#
main71910-33311-G0×2i199808-199908
SAGE,TRIM6#
main71910-33311-G2×2i199908
DK.SAGE,TRIM6#
71931SUPPORT, FRONT SEAT HEADREST
main71930-32020-B2×2i199608-199908
W(LOCK),BLUE GRAY,TRIM1#
main71930-32020-E6×2i199608-199908
W(LOCK),MD.OAK,TRIM4#
main71930-32020-G2×2i199608-199908
W(LOCK),SAGE,TRIM6#
main71930-44010-B0×2i199908
W(LOCK),BLUE GRAY,TRIM1#
main71930-44010-E3×2i199908
W(LOCK),MD.OAK,TRIM4#
main71930-44010-G0×2i199908
W(LOCK),SAGE,TRIM6#
main71931-32020-B2×2i199608
W/O(LOCK),BLUE GRAY,TRIM1#
main71931-32020-E6×2i199608
W/O(LOCK),MD.OAK,TRIM4#
main71931-32020-G2×2i199608
W/O(LOCK),SAGE,TRIM6#
72583ABRACKET, SEAT SIDE GARNISH, RH
main72583-33020i199608-199908
72584ABRACKET, SEAT SIDE GARNISH, LH
main72584-33010i199608
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-33020i199608
72791LEVER, LUMBAR SUPPORT
main72791-12010-B2i199608
BLUE GRAY,TRIM1#
main72791-12010-E2i199608
MD.OAK,TRIM4#
main72791-12010-G0i199608-199808
SAGE,TRIM6#
9008046007
main90080-46007
9026903007
main90269-03007
904671001601
main90467-1001601
9046710016A0
main90467-10016A0
9046818071
main90468-18071
9052001006
main90520-01006
9356054010
main93560-54010
9418560600
main94185-60600

33 parts on this diagram · 5 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
