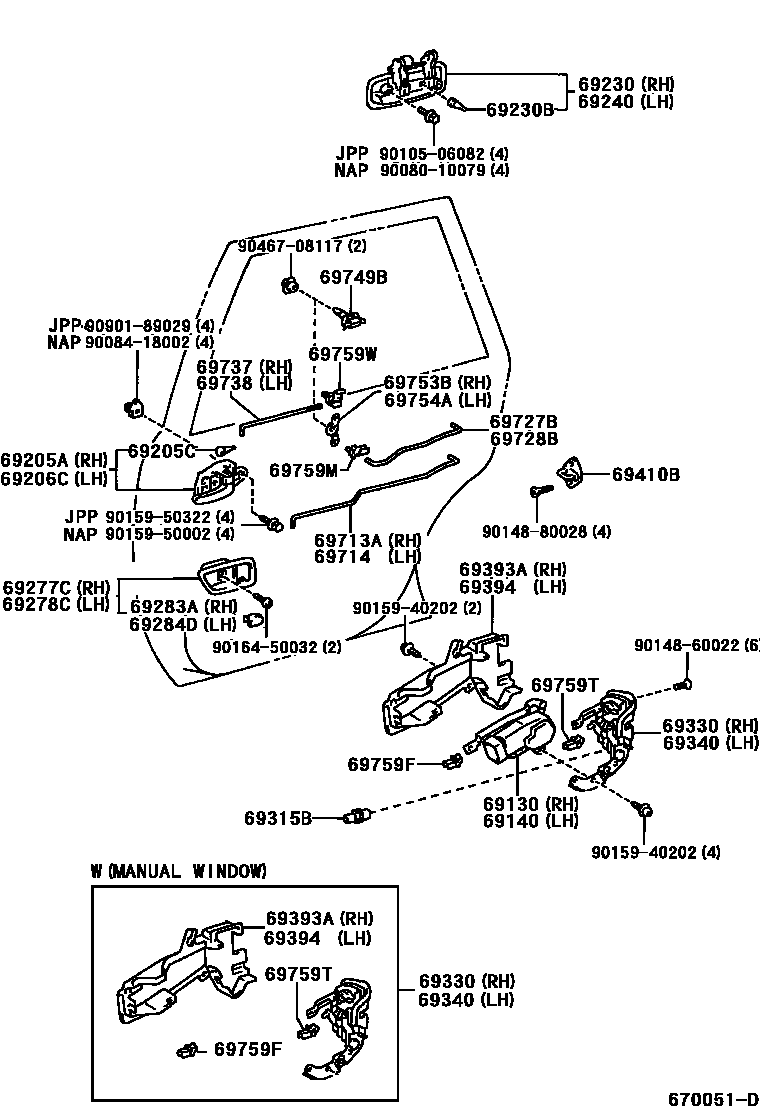

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-33020iMCV20,SXV20..JPP199608-199908

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-33020iMCV20,SXV20..JPP199608-199908

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-22080-B1iMCV20,SXV20..JPP..LE..USA200008-200107

W(CHROME PLATED INSIDE HANDLE),BLUE GRAY,TRIM1#

sub69205-22080

main69205-22080-G1iMCV20,SXV20..JPP..LE..USA200008-200107

W(CHROME PLATED INSIDE HANDLE),SAGE,TRIM6#

sub69205-22080

main69205-30120-B2iMCV20,SXV20..JPP199608-200107

BLUE GRAY,TRIM1#

sub69205-30120

main69205-30120-E1iMCV20,SXV2#..JPP199608-200107

MD.OAK,TRIM4#

sub69205-30120

main69205-30120-G0iMCV20,SXV20..JPP199608-200107

SAGE,TRIM6#

sub69205-30120

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iMCV20,SXV2#..JPP199608-199908

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-22080-B1iMCV20,SXV20..JPP..LE..USA200008-200107

W(CHROME PLATED INSIDE HANDLE),BLUE GRAY,TRIM1#

sub69206-22080

sub69206-30120

main69206-22080-G1iMCV20,SXV20..JPP..LE..USA200008-200107

W(CHROME PLATED INSIDE HANDLE),SAGE,TRIM6#

sub69206-22080

sub69206-30120

main69206-30120-B2iMCV20,SXV20..JPP199608-200107

BLUE GRAY,TRIM1#

sub69206-30120

main69206-30120-E1iMCV20,SXV2#..JPP199608-200107

MD.OAK,TRIM4#

sub69206-30120

main69206-30120-G0iMCV20,SXV20..JPP199608-200107

SAGE,TRIM6#

sub69206-30120

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-33030-A0iMCV20,SXV2#..JPP199608

SUPER WHITE 2,040

main69230-33030-A1iMCV20..JPP..LE199712-199802

40TH ANNIVERSARY PACKAGE,SU.WHITE PM,28Y

main69230-33030-A1iMCV20,SXV20..JPP..LE..USA200008

SU.WHITE PM,2GF

main69230-33030-A1iSXV20..JPP..LE..USA199902-199907

ACCENT PACKAGE(USA/HAWAII),SU.WHITE PM,051 ,28Y

main69230-33030-B0iMCV20,SXV20..JPP..LE..USA199608-200008

GRAY M.M.,1B2

main69230-33030-B0iMCV20,SXV20..JPP..LE..USA200008

GRAY M.M.,1B2 ,2HG

main69230-33030-B2iMCV20,SXV2#..JPP199908

DK.GRAY M.M.,1C6

main69230-33030-B3iMCV20,SXV2#..JPP199908

SLVER ME.,1C8

main69230-33030-C0iMCV20,SXV2#..JPP199608

BLACK,202

main69230-33030-D0iMCV20,SXV20..JPP199608-199808

RED MM,3K4

main69230-33030-D1iMCV20,SXV20..JPP199608-199808

MAGENTA MC.,3L3

main69230-33030-D2iMCV20,SXV2#..JPP199808

DK.RED MC.,3N6

main69230-33030-E0iMCV20,SXV2#..JPP199608-200101

BEIGE ME.,4M9

main69230-33030-E0iMCV20..JPP..LE200101

BEIGE ME.,2HV ,4M9

main69230-33030-E1iSXV20..JPP..LE..USA199902-199907

ACCENT PACKAGE(USA/HAWAII),FLAXEN MM,2GP ,4M7

main69230-33030-E2iMCV20,SXV20..JPP199808-199908

BEIGE M.M.,4N7

main69230-33030-G0iMCV20,SXV20..JPP199608-199808

DK.GREEN M.M.,6P2

main69230-33030-G2iMCV20,SXV2#..JPP199808

GREEN MC.,6R1

main69230-33030-G3iMCV20,SXV20..JPP..LE..USA200008

GRAYISH GREEN M.M.OP,2HH

main69230-33030-J0iMCV20,SXV20..JPP199608-199908

DK.BLUE M.M.,8L3

main69230-33030-J1iMCV20,SXV2#..JPP199908-200008

BLUE M.M.,8N4

main69230-33030-J2iMCV20,SXV2#..JPP199908

BLUE M.M.,8N7

main69230-33030-K0iMCV20,SXV20..JPP199608-199908

GRAYISH PURPLE M.M.,930

main69230-33030-K1iMCV20,SXV20..JPP199608-199908

LT.PURPLE ME.OP.,931

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018iMCV20,SXV20..JPP199608-199908

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-33030-A0iMCV20,SXV2#..JPP199608

SUPER WHITE 2,040

main69240-33030-A1iMCV20..JPP..LE199712-199802

40TH ANNIVERSARY PACKAGE,SU.WHITE PM,28Y

main69240-33030-A1iSXV20..JPP..LE..USA199902-199907

ACCENT PACKAGE(USA/HAWAII),SU.WHITE PM,051 ,28Y

main69240-33030-A1iMCV20,SXV20..JPP..LE..USA200008

SU.WHITE PM,2GF

main69240-33030-B0iMCV20,SXV20..JPP..LE..USA200008

GRAY M.M.,1B2 ,2HG

main69240-33030-B0iMCV20,SXV20..JPP..LE..USA199608-200008

GRAY M.M.,1B2

main69240-33030-B2iMCV20,SXV2#..JPP199908

DK.GRAY M.M.,1C6

main69240-33030-B3iMCV20,SXV2#..JPP199908

SLVER ME.,1C8

main69240-33030-C0iMCV20,SXV2#..JPP199608

BLACK,202

main69240-33030-D0iMCV20,SXV20..JPP199608-199808

RED MM,3K4

main69240-33030-D1iMCV20,SXV20..JPP199608-199808

MAGENTA MC.,3L3

main69240-33030-D2iMCV20,SXV2#..JPP199808

DK.RED MC.,3N6

main69240-33030-E0iMCV20,SXV2#..JPP199608-200101

BEIGE ME.,4M9

main69240-33030-E0iSXV2#..JPP;MCV20..JPP..(CE,XLE)200101

BEIGE ME.,2HV ,4M9

main69240-33030-E1iSXV20..JPP..LE..USA199902-199907

ACCENT PACKAGE(USA/HAWAII),FLAXEN MM,2GP ,4M7

main69240-33030-E2iMCV20,SXV20..JPP199808-199908

BEIGE M.M.,4N7

main69240-33030-G0iMCV20,SXV20..JPP199608-199808

DK.GREEN M.M.,6P2

main69240-33030-G2iMCV20,SXV2#..JPP199808

GREEN MC.,6R1

main69240-33030-G3iMCV20,SXV20..JPP..LE..USA200008

GRAYISH GREEN M.M.OP,2HH

main69240-33030-J0iMCV20,SXV20..JPP199608-199908

DK.BLUE M.M.,8L3

main69240-33030-J1iMCV20,SXV2#..JPP199908-200008

BLUE M.M.,8N4

main69240-33030-J2iMCV20,SXV2#..JPP199908

BLUE M.M.,8N7

main69240-33030-K0iMCV20,SXV20..JPP199608-199908

GRAYISH PURPLE M.M.,930

main69240-33030-K1iMCV20,SXV20..JPP199608-199908

LT.PURPLE ME.OP.,931

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-33020-B0iMCV20,SXV20..JPP199608

BLUE GRAY,TRIM1#

sub69277-33020

main69277-33020-E0iMCV20,SXV2#..JPP199608

MD.OAK,TRIM4#

sub69277-33020

main69277-33020-G0iMCV20,SXV20..JPP199608

SAGE,TRIM6#

sub69277-33020

main69277-33040-B0iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),BLUE GRAY,TRIM1#

main69277-33040-G0iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),SAGE,TRIM6#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-33020-B0iMCV20,SXV20..JPP199608

BLUE GRAY,TRIM1#

sub69278-33020

main69278-33020-E0iMCV20,SXV2#..JPP199608

MD.OAK,TRIM4#

sub69278-33020

main69278-33020-G0iMCV20,SXV20..JPP199608

SAGE,TRIM6#

sub69278-33020

main69278-33040-B0iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),BLUE GRAY,TRIM1#

sub69278-33040

main69278-33040-G0iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),SAGE,TRIM6#

sub69278-33040

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-B3iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),MD. MOON MIST,TRIM1#

sub69283-30040

main69283-30040-G1iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),SAGE,TRIM6#

sub69283-30040

main69283-33010-B0iMCV20,SXV20..JPP199608

BLUE GRAY,TRIM1#

main69283-33010-E0iMCV20,SXV2#..JPP199608

MD. OAK,TRIM4#

main69283-33010-G0iMCV20,SXV20..JPP199608

SAGE,TRIM6#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-B3iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),MD.MOON MIST,TRIM1#

sub69284-30040

main69284-30040-G1iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),SAGE,TRIM6#

sub69284-30040

main69284-33010-B0iMCV20,SXV20..JPP199608

BLUE GRAY,TRIM1#

sub69284-33010

main69284-33010-E0iMCV20,SXV2#..JPP199608

MD. OAK,TRIM4#

sub69284-33010

main69284-33010-G0iMCV20,SXV20..JPP199608

SAGE,TRIM6#

sub69284-33010

69315BRETAINER, REAR DOOR LOCK SOLENOID

main69315-33030iMCV20,SXV20..JPP199608-199908

69330LOCK ASSY, REAR DOOR, RH

main69305-33010iMCV20,SXV20..JPP..CE199805

W(POWER WINDOW)

main69305-33010iMCV20,SXV20..JPP..(LE,XLE)199608-199908

main69330-33050iMCV20,SXV20..JPP..CE199805

69340LOCK ASSY, REAR DOOR, LH

main69306-33010iMCV20,SXV2#..JPP..(LE,XLE)199608-199908

main69306-33010iMCV20,SXV20..JPP..CE199805

W(POWER WINDOW)

main69340-33050iMCV20,SXV20..JPP..CE199805

69393ACOVER, REAR DOOR LOCK, OUTER RH

main69393-33010iMCV20,SXV2#..JPP..(LE,XLE)199608-199908

main69393-33010iMCV20,SXV20..JPP..CE199805

W(POWER WINDOW)

main69393-33030iMCV20,SXV20..JPP..CE199805

69394COVER, REAR DOOR LOCK, OUTER LH

main69394-33010iMCV20,SXV20..JPP..CE199805

W(POWER WINDOW)

main69394-33010iMCV20,SXV20..JPP..(LE,XLE)199608-199908

main69394-33030iMCV20,SXV20..JPP..CE199805

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070iMCV20,SXV2#..JPP199608

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-33030iMCV20,SXV2#..JPP199608-199908

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-33030iMCV20,SXV2#..JPP199608-199908

69727BLINK, REAR DOOR INSIDE LOCKING, NO.2 RH

main69727-33060iMCV20,SXV20..JPP199608-199908

69728BLINK, REAR DOOR INSIDE LOCKING, NO.2 LH

main69727-33060iMCV20,SXV20..JPP199608-199908

69737LINK, REAR DOOR INSIDE LOCKING, RH

main69737-33030iMCV20,SXV20..JPP199608-199908

69738LINK, REAR DOOR INSIDE LOCKING, LH

main69738-33020iMCV20,SXV20..JPP199608-199908

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32030iMCV20,SXV20..JPP199608-199812

main69749-33010iMCV20,SXV2#..JPP199812-199908

69753BBELLCRANK, REAR DOOR LOCK CONTROL, RH

main69753-33040iMCV20,SXV20..JPP199608-199908

69754ABELLCRANK, REAR DOOR LOCK CONTROL, LH

main69753-33040iMCV20,SXV20..JPP199608-199908

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20040iMCV20,SXV20..JPP199608-199908

GREEN

main69759-20050iSXV23..JPP199908

main69759-20050iMCV20,SXV20..JPP199608

GRAY

69759MSNAP, DOOR LOCK CONTROL LINK

main69759-20040iMCV20,SXV2#..JPP199608-199908

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-24050iMCV20,SXV2#..JPP199608-199908

GREEN

main69759-24060iMCV20,SXV20..JPP199608-199908

GRAY

69759WSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20410iMCV20,SXV20..JPP199608-199908

9008010079

main90080-10079

9008418002

main90084-18002

9010506082

main90105-06082

9014860022

main90148-60022

9014880028

main90148-80028

9015940202

main90159-40202

9015950002

main90159-50002

9015950322

main90159-50322

9016450032

main90164-50032

9046708117

main90467-08117

9090189029

main90901-89029

42 parts on this diagram · 1 diagram in section
