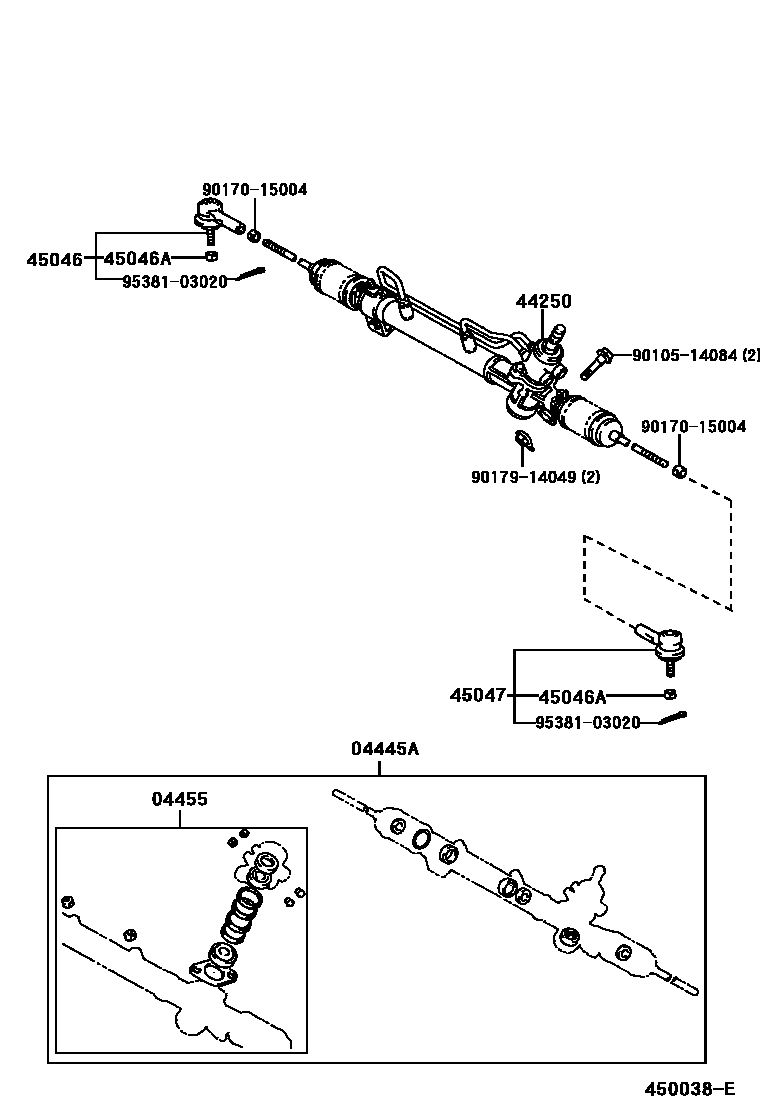

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-33050iMCV20,SXV20..JPP199608-199610

sub04445-33070

main04445-33070iMCV20,SXV20..JPP199610-199908

main04445-33080iMCV20,SXV2#..JPP199908

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-33020iMCV20,SXV2#..JPP199608-199908

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-06120iMCV20..JPP199608-199804

(L)

sub44250-07061

main44250-33150iSXV20..JPP199608-199908

main44250-33160iMCV20..JPP199608-199804

(J)

sub44250-33260

main44250-33160iMCV20..JPP199804-199908

sub44250-33260

main44250-33260iMCV20..JPP199908

main44250-33290iSXV2#..JPP199908

sub44250-33260

45046END SUB-ASSY, TIE ROD, RH

main45046-09020iMCV20..JPP199608-199804

(L)

main45046-29255iSXV20..JPP199608-199804

(J)

main45046-29255iMCV20,SXV20..JPP199804-199908

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMCV20,SXV20..JPP199608-199908

45047END SUB-ASSY, TIE ROD, LH

main45046-09020iMCV20..JPP199608-199804

(L)

main45046-29255iMCV20..JPP199608-199804

(J)

main45046-29255iMCV20,SXV20..JPP199804-199908

9010514084

main90105-14084

9017015004

main90170-15004

9017914049

main90179-14049

9538103020

main95381-03020

10 parts on this diagram · 2 diagrams in section
