16261HOSE, WATER BY-PASS

main16261-74100i199908

16261GHOSE, WATER BY-PASS, NO.1

main16261-0A010i200008

(L)

main16261-20010i199608-200008

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main90467-28008×2i199608

16264HOSE, WATER BY-PASS, NO.2

main16264-0A010i200008

(L)

main16264-20010i199608

(J)

main16264-74101i199908

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-20005×2i199608-199908

main96135-41300×2i199608

16267HOSE, WATER BY-PASS, NO.3

main16267-0A010i200008

(L)

main16267-20010i199608

(J)

main16267-74081i199608

NO.1

main87245-33360i199908

NO.2

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-20005×2i199608

NO.1

main90467-22004i199908

NO.2

main90467-24002i199908

NO.3

main96135-41300×2i199608

16321INLET, WATER

main16321-0A020i200008

(L)

main16321-20010i199608

(J)

main16321-74050i199608-199908

16322PIPE, WATER INLET

main16322-0A020i200008

(L)

main16322-20020i199608

(J)

16322ARING, O(FOR WATER INLET)

main96761-35031i199608

16323HOUSING, WATER INLET

main16323-0A010i200008

(L)

main16323-20010i199608

(J)

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i199608

main16325-63011i199608-199908

16331OUTLET, WATER

main16304-0A010i200008

ENGINE NO.=5XXXXXX-9XXXXXX

main16331-20020i199608-199711

main16331-20040i199711

ENGINE NO.=0XXXXXX-4XXXXXX

main16331-74210i199608-199707

TYPE A

main16331-74220i199908

TYPE B:REFER TO ILLUSTRATION

main16331-74260i199908

TYPE A:REFER TO ILLUSTRATION

16331ATHERMOSTAT

main90916-03084i199608

*WAX 82-95

main90916-03090i199608-199908

*WAX 82-95

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-62090i199608

16361FAN

main16361-20030i199608-199808

main16361-20110i199808

main16361-22030i199908

main16361-74060i199608-199908

16361BFAN, NO.2

main16361-20040i199608-199808

main16361-20120i199808

main16361-74160i199908

main88453-33010i199608-199908

16363MOTOR, COOLING FAN

main16363-0A030i199608-199808

main16363-11050i199608-199908

main16363-20090i199808

main16363-74360i199908

16363AMOTOR, COOLING FAN, NO.2

main16363-0A040i199608-199808

main16363-11050i199608-199908

main16363-20100i199808

main16363-74370i199908

16368BRACKET, COOLING MOTOR

main16368-0A010i199608-199808

16368ABRACKET, COOLING MOTOR, NO.2

main16368-0A010i199608-199808

16384BRACKET, FAN BELT ADJUSTING BAR

main16384-20010i199608

16400RADIATOR ASSY

main16400-20090i199608-199808

main16400-20091i199808-199908

main16400-20161i199908

main16400-7A291i199808

main16400-7A300i199608-199808

main16400-7A301i199908

16470TANK ASSY, RADIATOR RESERVE

main16470-20030i199608-199611

main16470-20031i199611-199808

main16470-20040i199808

main16470-74310i199608-199611

main16470-74311i199611-199808

main16470-74360i199908

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i199608-199908

L=600(*H,L=110)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i199908

16470JHOSE, NO.3(FOR RADIATOR RESERVE TANK)

main85338-70070i199608-199808

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main16472-20030i199608

main16472-74310i199608-199908

16471CAP SUB-ASSY, RESERVE TANK

main16405-20020i199608

main16405-74300i199608-199908

16523ACUSHION, RADIATOR SUPPORT

main16523-74010×2i199908

16533SUPPORT, RADIATOR, UPPER

main16533-74290×2i199608-199908

main16533-74320×2i199908

16535SUPPORT, RADIATOR, LOWER

main16535-20010×2i199608

main16535-74210×2i199608-199908

16571HOSE, RADIATOR, INLET

main16571-20020i199608

main16571-74360i199908

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003×2i199908

main90467-37004×2i199608

16572HOSE, RADIATOR, OUTLET

main16572-20020i199608-199808

main16572-20040i199808

main16572-74290i199908

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003×2i199608-199908

main90467-37002×2i199608

16611BRACKET, RADIATOR RESERVE TANK

main16611-74080i199608-199908

16612BRACKET, RADIATOR RESERVE TANK, NO.2

main16612-74030i199611-199908

16711SHROUD, FAN

main16711-20050i199608-199808

main16711-20091i199808

16712SHROUD, FAN, NO.2

main16711-20060i199608-199808

main16711-20100i199808

main16711-74620i199608-199808

main16711-74621i199808-199908

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

8202WIRING & CLAMP

→ Go to FIG 82-02

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9008010164

main90080-10164

9008011188

main90080-11188

9009904119

main90099-04119

9009905164

main90099-05164

9010906196

main90109-06196

9011606070

main90116-06070

9011908938

main90119-08938

9014880017

main90148-80017

9014880018

main90148-80018

9017906080

main90179-06080

9017908144

main90179-08144

9017908230

main90179-08230

9048018010

main90480-18010

9151160616

main91511-60616

91621B0816

main91621-B0816

91621G0612

main91621-G0612

9163160820

main91631-60820

91651B0616

main91651-B0616

9166660616

main91666-60616

9212260612

main92122-60612

9461310800

main94613-10800

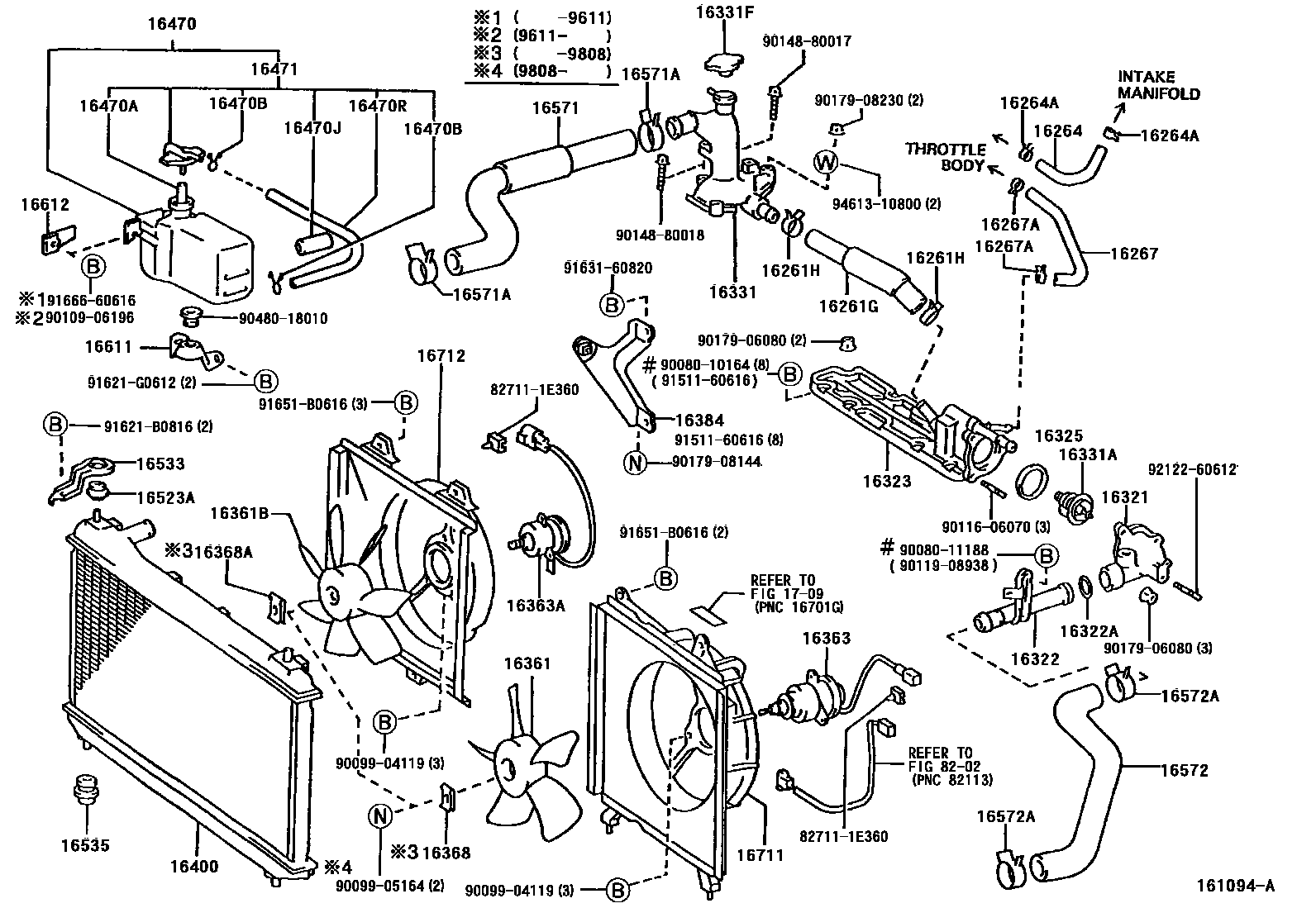

RADIATOR & WATER OUTLET
