VENTILATION HOSE

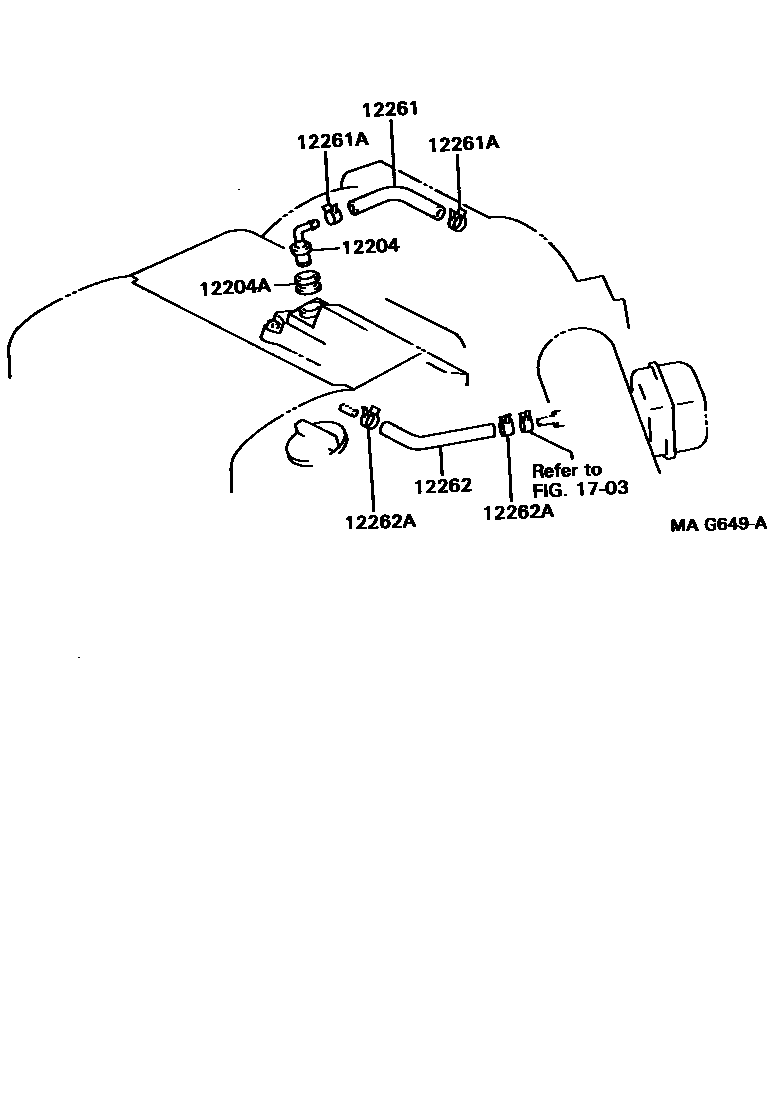

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-20010i199308-199608
main12204-62010i199106-199308
main12204-74020i199106-199608
12204AGROMMET(FOR VENTILATION SYSTEM)
main90480-18001i199106-199608
12261HOSE, VENTILATION
main12261-03030i199204-199608
main12261-20010i199308-199608
sub12261-20011
main12261-62030i199106-199308
main12261-74020i199106-199608
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14017i199106-199608
main90467-14043i199604-199608
main90467-15016i199106-199511
sub96135-51400
main90467-15022i199511-199604
12262HOSE, VENTILATION, NO.2
main12262-20010i199308-199608
main12262-62040i199106-199308
main12262-74050i199106-199608
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-13103i199106-199608
NO.1
main90467-14043i199601-199608
NO.2
main90467-15016i199106-199511
NO.2
sub96135-51400
main90467-15022i199511-199601
NO.2
main90467-17011i199106-199608
sub96134-51700
1703

7 parts on this diagram · 3 diagrams in section
