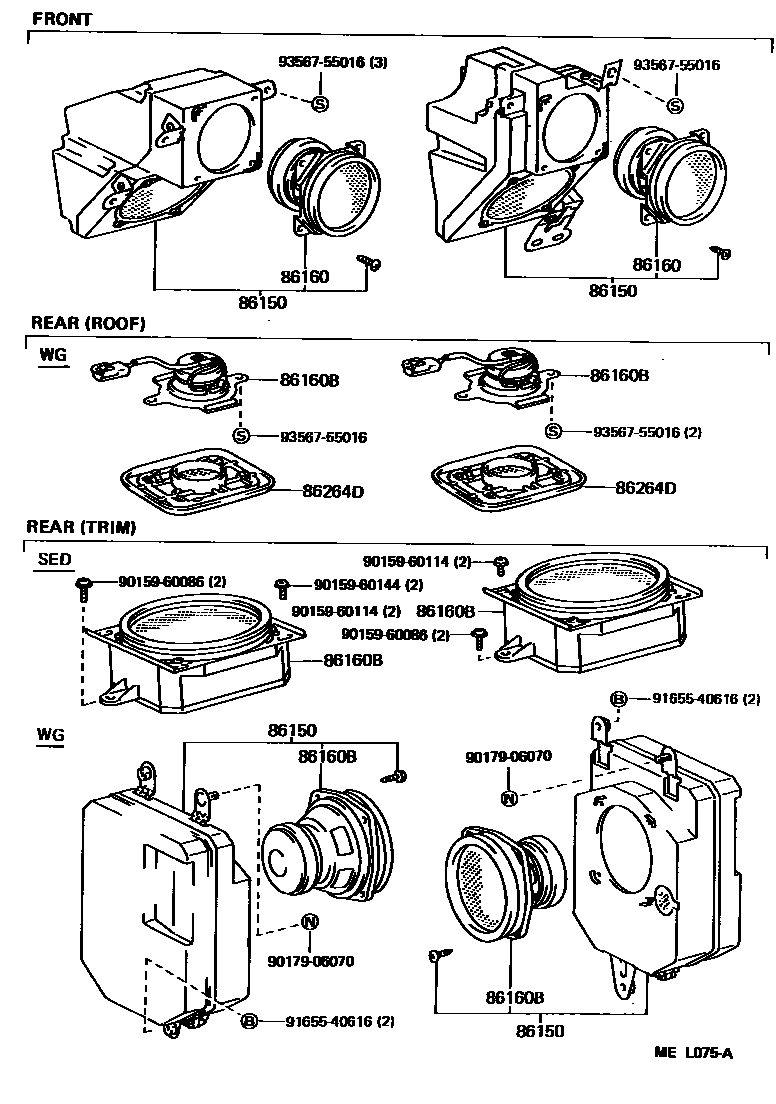

SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-32120iSV21,VZV21..WG..DX..USA198908-199106

REAR,RH

main86150-32130iSV21,VZV21..WG..DX..USA198908-199106

REAR,LH

main86150-32140iSV25..USA;SV21,VZV21..SED..DX..USA;SV21,VZV21..(LE,STD)..USA198808-199106

FRONT,LH

main86150-32150iSV25..USA;SV21,VZV21..SED..DX..USA;SV21,VZV21..(LE,STD)..USA198808-199106

FRONT,RH

main86150-32160iSV25,VZV21..CND;SV21..SED..DX..CND;SV21..(LE,STD)..CND198808-199106

FRONT,RH

main86150-32170iSV25,VZV21..CND;SV21..SED..DX..CND;SV21..(LE,STD)..CND198808-199106

FRONT,LH

86160SPEAKER ASSY, FRONT NO.1

main86160-32141×2iSV2#,VZV21..USA198808-199106

main86160-32190×2iSV2#,VZV21..CND198808-199106

86160BSPEAKER ASSY, REAR

main86160-32150×2iSV21,VZV21..WG198808-199106

TRIM

main86160-32160×2iSV21,VZV21..WG198808-199106

ROOF

main86160-32180×2iSV2#,VZV21..SED198808-199106

86264DGRILLE, SPEAKER, ROOF

main86269-32020-02×2iVZV21..WG..USA199008-199106

MAROON,TRIM3#

main86269-32020-06×2iSV21,VZV21..WG..LE199008-199106

BROWN,TRIM4#

main86269-32020-13×2iSV21,VZV21..WG198808-199008

MEDIUM GRAY,TRIM1#

main86269-32020-14×2iSV21,VZV21..WG..LE199008-199106

DARK BLUE,TRIM8#

9015960086

main90159-60086

9015960114

main90159-60114

9015960144

main90159-60144

9017906070

main90179-06070

9165540616

main91655-40616

9356755016

main93567-55016

10 parts on this diagram · 1 diagram in section
