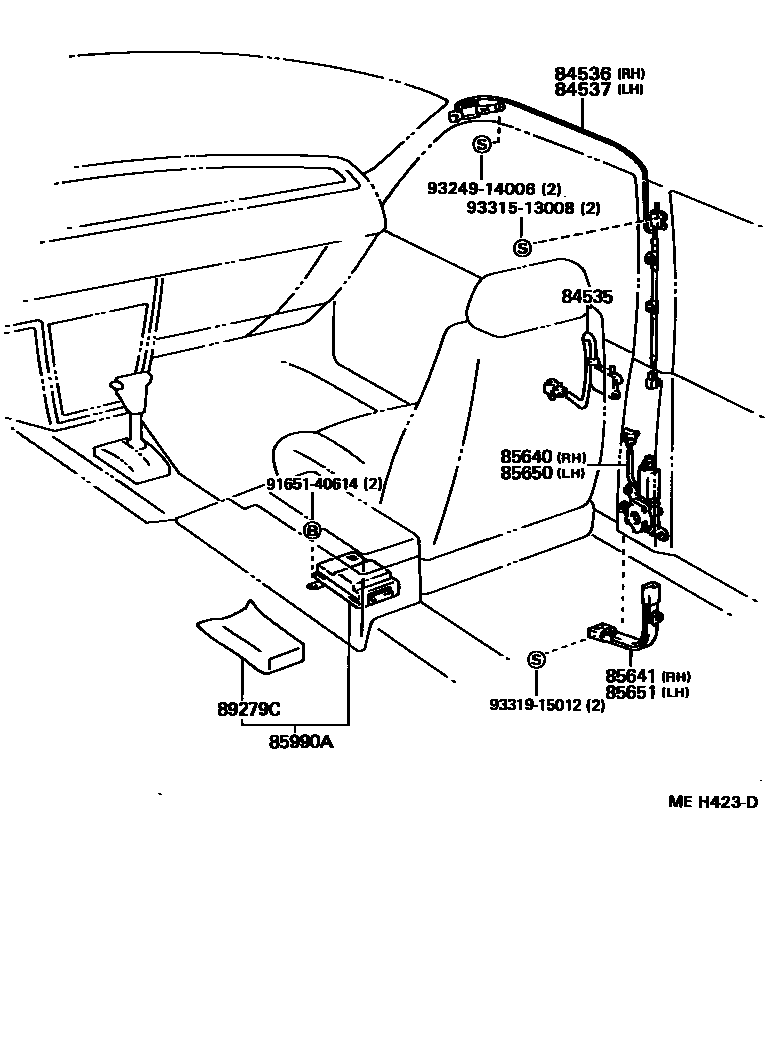

PASSIVE BELT SYSTEM

84535SWITCH, DOOR LOCK

main84535-32010×2iSV2#,VZV21..USA198808-199106

84536SWITCH, SLIDE RAIL LIMIT, FRONT RH

main84536-32010iSV2#,VZV21..USA198808-199106

84537SWITCH, SLIDE RAIL LIMIT, FRONT LH

main84537-32010iSV2#,VZV21..USA198808-199106

85640MOTOR ASSY, PASSIVE BELT DRIVE, RH

main85640-32020iSV2#,VZV21..USA198808-199106

85641TRACK, PASSIVE BELT DRIVE, RH

main85641-20010iSV2#,VZV21..USA198808-199106

85650MOTOR ASSY, PASSIVE BELT DRIVE, LH

main85650-32020iSV2#,VZV21..USA198808-199106

85651TRACK, PASSIVE BELT DRIVE, LH

main85651-20010iSV2#,VZV21..USA198808-199106

85990ACOMPUTER ASSY, SEAT BELT WARNING (FOR PASSIVE BELT)

main85990-32011iSV2#,VZV21..USA198808-199001

main85990-32012iSV2#,VZV21..USA199001-199106

89279CCOVER

main89279-32160iSV2#,VZV21..USA198808-199003

9165140614

main91651-40614

9324914006

main93249-14006

9331513008

main93315-13008

9331915012

main93319-15012

13 parts on this diagram · 1 diagram in section
