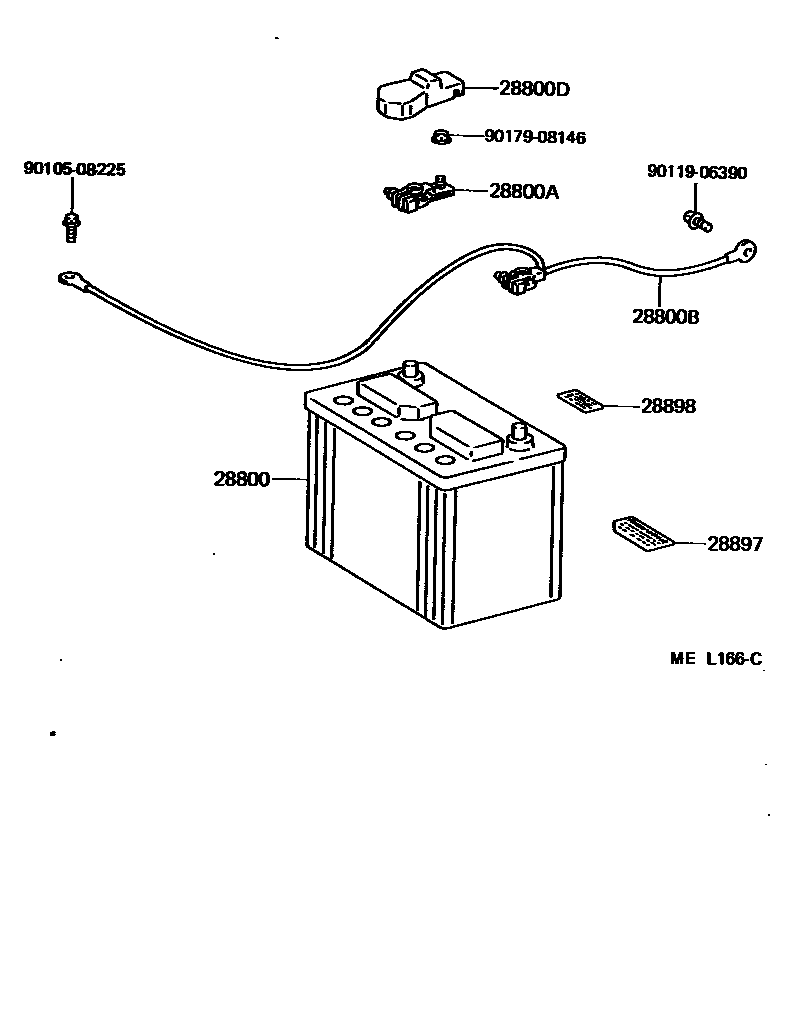

BATTERY & BATTERY CABLE

28800BATTERY

main28800-42030i3SFE..SV21..STD..CND;3SFE,2VZFE..SV2#,VZV21..DX,LE; 3SFE..SV21..STD..USA198808-199106

55D23L; 55D23L,COLD SPEC

main28800-70060i3SFE..SV2#..(DX,LE)..USA; 3SFE..SV21..STD..USA198808-199106

50D20L; 50D20L,W/O(COLD SPEC)

28800ATERMINAL, BATTERY POSITIVE

main90982-05040i3SFE,2VZFE..SV2#,VZV21198808-199106

28800BCABLE, BATTERY TO GROUND

main82123-32051i3SFE..SV2#198808-199106

main82123-32100i2VZFE..VZV21198808-199106

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16010i3SFE,2VZFE..SV2#,VZV21198808-199106

28897PLATE, BATTERY CAUTION

main28897-38010i3SFE,2VZFE..SV2#,VZV21..CND198808-199106

28898PLATE, BATTERY

main28898-26010i3SFE,2VZFE..SV2#,VZV21..USA198808-199106

9010508225

main90105-08225

9011906390

main90119-06390

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section
