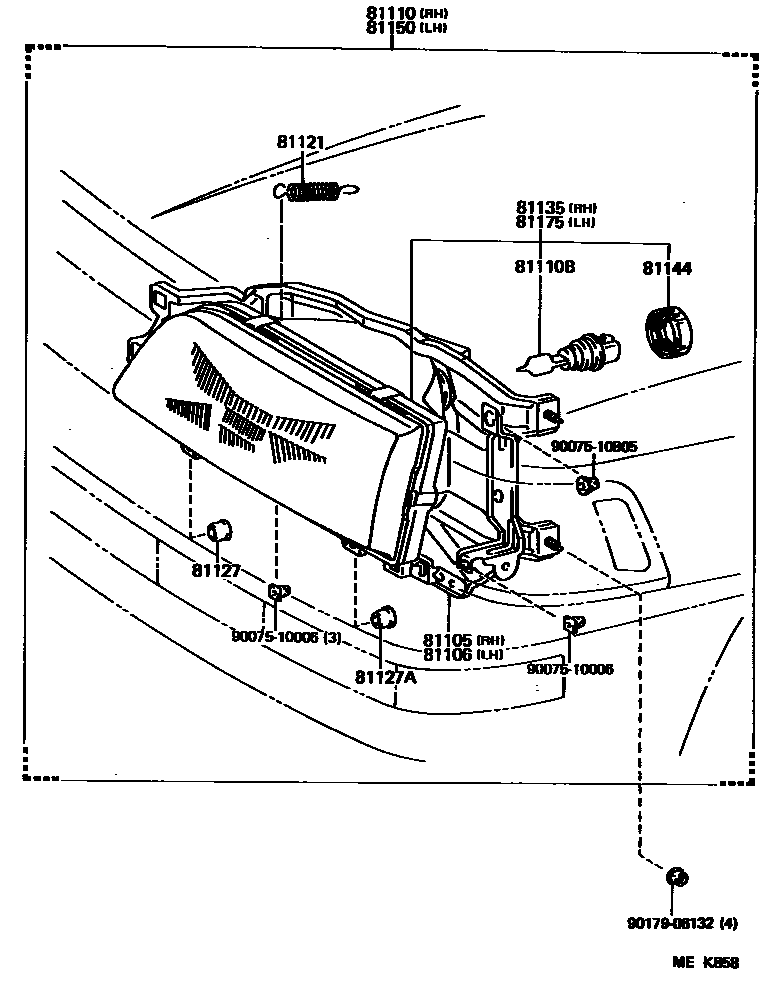

HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-32200iSV2#,VZV21198808-199106

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-32200iSV2#,VZV21198808-199106

81110HEADLAMP ASSY, RH

main81110-32200iSV2#,VZV21198808-199106

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13032×2iSV2#,VZV21198808-199106

12V 65/45W,*HAL,*WH

81121SPRING, HEADLAMP TENSION

main81121-22520×2iSV2#,VZV21198808-199106

81127BEARING, HEADLAMP, NO.1

main81128-32200×4iSV2#,VZV21198808-199106

81127ABEARING, HEADLAMP, NO.2

main90075-10806×2iSV2#,VZV21198808-199106

81135UNIT ASSY, HEADLAMP, RH

main81130-32200iSV2#,VZV21198808-199106

81144COVER, HEADLAMP, NO.1

main81104-22520×2iSV2#,VZV21198808-199106

81150HEADLAMP ASSY, LH

main81150-32200iSV2#,VZV21198808-199106

81175UNIT ASSY, HEADLAMP, LH

main81170-32200iSV2#,VZV21198808-199106

9007510006

main90075-10006

9007510805

main90075-10805

9017906132

main90179-06132

14 parts on this diagram · 1 diagram in section
