FRONT SEAT & SEAT TRACK

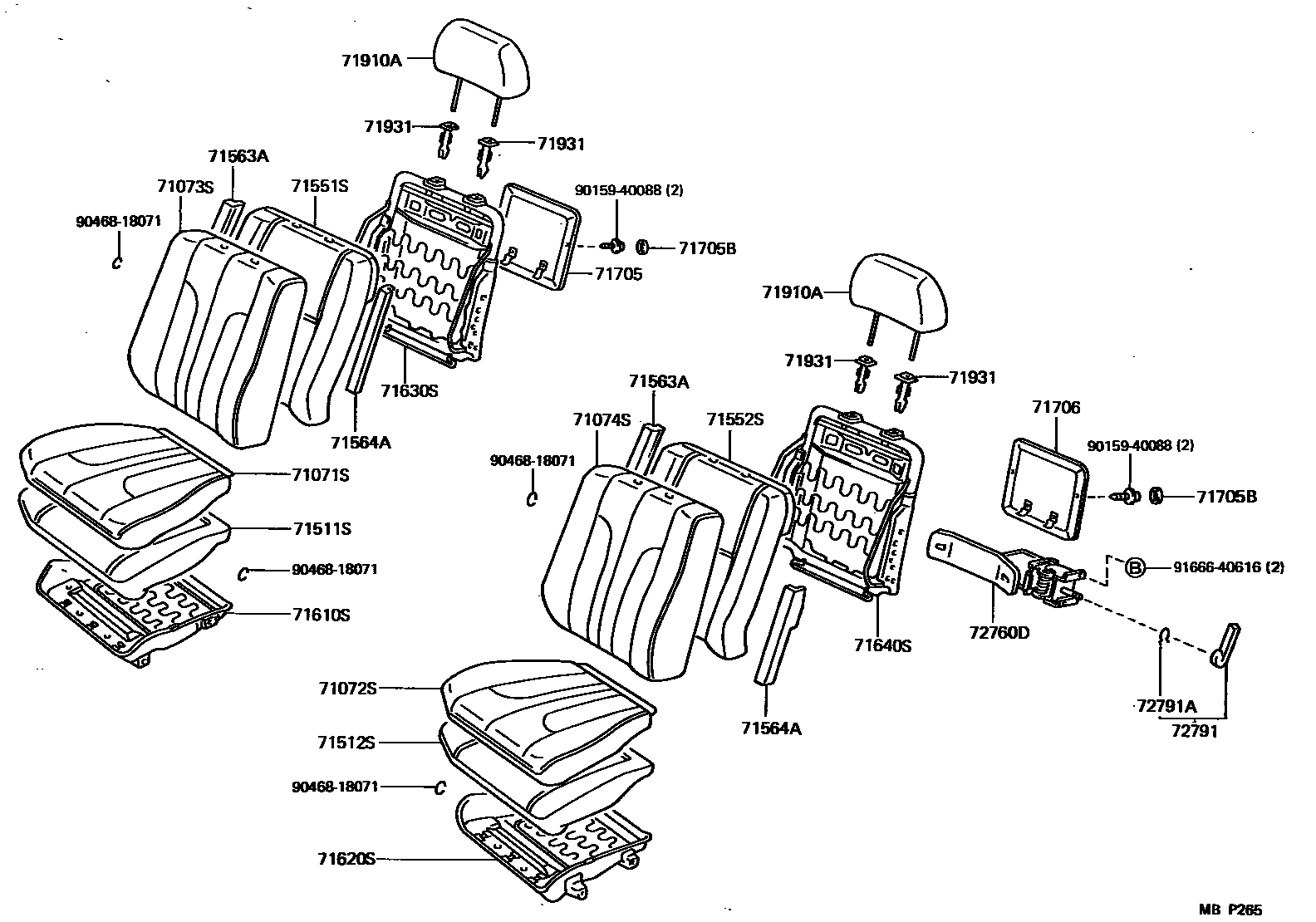

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-32560-02i198808-198901
LEATHER PACKAGE & W(POWER SEAT),MAROON,TRIM3#
main71071-32560-02i198901-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,MAROON,TRIM3#
main71071-32560-03i198912-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,MEDIUM GRAY,TRIM1#
main71071-32560-04i198808-198901
LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#
main71071-32560-04i198901-198908
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,DARK BLUE,TRIM8#
main71071-32560-14i198908-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,DARK BLUE,TRIM8#
main71071-32570-03i198912-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,MEDIUM GRAY,TRIM1#
main71071-32570-04i198901-198908
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,DARK BLUE,TRIM8#
main71071-32570-04i198808-198901
LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#
main71071-32570-14i198908-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,DARK BLUE,TRIM8#
main71071-32630-02i198808-199008
MAROON,TRIM3#
main71071-32630-03i198808-199008
MEDIUM GRAY,TRIM1#
main71071-32630-04i198808-199008
DARK BLUE,TRIM8#
main71071-32630-06i198808-199008
BROWN,TRIM4#
main71071-32631-02i199008-199106
MAROON,TRIM3#
main71071-32631-03i199008-199106
MEDIUM GRAY,TRIM1#
main71071-32631-04i199008-199106
DARK BLUE,TRIM8#
main71071-32631-06i199008-199106
BROWN,TRIM4#
main71071-32640-02i198808-199106
MAROON,TRIM3#
main71071-32640-03i198808-199106
MEDIUM GRAY,TRIM1#
main71071-32640-04i198808-199106
DARK BLUE,TRIM8#
main71071-32640-06i198808-199008
BROWN,TRIM4#
main71071-32640-16i199008-199106
BROWN,TRIM4#
main71071-32650-02i198808-198908
MAROON,TRIM3#
main71071-32650-03i198808-198908
MEDIUM GRAY,TRIM1#
main71071-32650-04i198808-198908
DARK BLUE,TRIM8#
main71071-32650-06i198808-198908
BROWN,TRIM4#
main71071-32651-02i198908-199106
MAROON,TRIM3#
main71071-32651-03i198908-199106
MEDIUM GRAY,TRIM1#
main71071-32651-04i198908-199106
DARK BLUE,TRIM8#
main71071-32651-06i198908-199008
BROWN,TRIM4#
main71071-32651-16i199008-199106
BROWN,TRIM4#
main71071-32660-03i198808-199008
MEDIUM GRAY,TRIM1#
main71071-32660-04i198808-199008
DARK BLUE,TRIM8#
main71071-32660-06i198808-199008
BROWN,TRIM4#
main71071-32661-03i199008-199106
MEDIUM GAY,TRIM1#
main71071-32661-04i199008-199106
DARK BLUE,TRIM8#
main71071-32661-06i199008-199106
BROWN,TRIM4#
main71071-32820-03i198808-198908
MEDIUM GRAY,TRIM1#
main71071-32820-04i198808-198908
DARK BLUE,TRIM8#
main71071-32820-06i198808-198908
BROWN,TRIM4#
main71071-32830-03i198808-199106
MEDIUM GRAY,TRIM1#
main71071-32830-04i198808-199106
DARK BLUE,TRIM8#
main71071-32830-06i198808-199008
BROWN,TRIM4#
main71071-32830-16i199008-199106
BROWN,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-32520-02i198808-199106
LEATHER PACKAGE & W(POWER SEAT),MAROON,TRIM3#
main71072-32520-03i198912-199106
LEATHER PACKAGE & W(POWER SEAT),MEDIUM GRAY,TRIM1#
main71072-32520-04i198808-198908
LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#
main71072-32520-14i198908-199106
LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#
main71072-32600-02i198808-199008
MAROON,TRIM3#
main71072-32600-03i198808-199008
MEDIUM GRAY,TRIM1#
main71072-32600-04i198808-199008
DARK BLUE,TRIM8#
main71072-32600-06i198808-199008
BROWN,TRIM4#
main71072-32601-02i199008-199106
MAROON,TRIM3#
main71072-32601-03i199008-199106
MEDIUM GRAY,TRIM1#
main71072-32601-04i199008-199106
DARK BLUE,TRIM8#
main71072-32601-06i199008-199106
BROWN,TRIM4#
main71072-32610-02i198808-199106
MAROON,TRIM3#
main71072-32610-03i198808-199106
MEDIUM GRAY,TRIM1#
main71072-32610-04i198808-199106
DARK BLUE,TRIM8#
main71072-32610-06i198808-199008
BROWN,TRIM4#
main71072-32610-16i199008-199106
BROWN,TRIM4#
main71072-32620-02i198808-198908
MAROON,TRIM3#
main71072-32620-03i198808-198908
MEDIUM GRAY,TRIM1#
main71072-32620-04i198808-198908
DARK BLUE,TRIM8#
main71072-32620-06i198808-198908
BROWN,TRIM4#
main71072-32621-02i198908-199106
MAROON,TRIM3#
main71072-32621-03i198908-199106
MEDIUM GRAY,TRIM1#
main71072-32621-04i198908-199106
DARK BLUE,TRIM8#
main71072-32621-06i198908-199008
BROWN,TRIM4#
main71072-32621-16i199008-199106
BROWN,TRIM4#
main71072-32630-03i198808-199008
MEDIUM GRAY,TRIM1#
main71072-32630-04i198808-199008
DARK BLUE,TRIM8#
main71072-32630-06i198808-199008
BROWN,TRIM4#
main71072-32631-03i199008-199106
MEDIUM GRAY,TRIM1#
main71072-32631-04i199008-199106
DARK BLUE,TRIM8#
main71072-32631-06i199008-199106
BROWN,TRIM4#
main71072-32640-02i198808-199106
W(POWER SEAT),MAROON,TRIM3#
main71072-32640-03i198808-199106
W(POWER SEAT),MEDIUM GRAY,TRIM1#
main71072-32640-04i198808-199106
W(POWER SEAT),DARK BLUE,TRIM8#
main71072-32640-06i198808-199008
W(POWER SEAT),BROWN,TRIM4#
main71072-32640-16i199008-199106
W(POWER SEAT),BROWN,TRIM4#
main71072-32790-03i198808-198908
MEDIUM GRAY,TRIM1#
main71072-32790-04i198808-198908
DARK BLUE,TRIM8#
main71072-32790-06i198808-198908
BROWN,TRIM4#
main71072-32800-03i198808-199106
MEDIUM GRAY,TRIM1#
main71072-32800-04i198808-199106
DARK BLUE,TRIM8#
main71072-32800-06i198808-199008
BROWN,TRIM4#
main71072-32800-16i199008-199106
BROWN,TRIM4#
main71072-3H090-02i198901-199106
LEATHER PACKAGE,MAROON,TRIM3#
main71072-3H090-03i198912-199106
LEATHER PACKAGE,MEDIUM GRAY,TRIM1#
main71072-3H090-04i198901-198908
LEATHER PACKAGE,DARK BLUE,TRIM8#
main71072-3H090-14i198908-199106
LEATHER PACKAGE,DARK BLUE,TRIM8#
main71072-3H100-03i198912-199106
LEATHER PACKAGE,MEDIUM GRAY,TRIM1#
main71072-3H100-04i198901-198908
LEATHER PACKAGE,DARK BLUE,TRIM8#
main71072-3H100-14i198908-199106
LEATHER PACKAGE,DARK BLUE,TRIM8#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-32460-02i198808-199008
MAROON,TRIM3#
main71073-32460-03i198808-199008
MEDIUM GRAY,TRIM1#
main71073-32460-04i198808-199008
DARK BLUE,TRIM8#
main71073-32460-06i198808-199008
BROWN,TRIM4#
main71073-32461-02i199008-199106
MAROON,TRIM3#
main71073-32461-03i199008-199106
MEDIUM GRAY,TRIM1#
main71073-32461-04i199008-199106
DARK BLUE,TRIM8#
main71073-32461-06i199008-199106
BROWN,TRIM4#
main71073-32480-02i198901-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,MAROON,TRIM3#
main71073-32480-02i198808-198901
LEATHER PACKAGE & W(POWER SEAT),MAROON,TRIM3#
main71073-32480-03i198912-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,MEDIUM GRAY,TRIM1#
main71073-32480-04i198901-198908
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,DARK BLUE,TRIM8#
main71073-32480-04i198808-198901
LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#
main71073-32480-14i198908-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,DARK BLUE,TRIM8#
main71073-32510-02i198808-199106
MAROON,TRIM3#
main71073-32510-03i198808-199106
MEDIUM GRAY,TRIM1#
main71073-32510-04i198808-199106
DARK BLUE,TRIM8#
main71073-32510-06i198808-199008
BROWN,TRIM4#
main71073-32510-16i199008-199106
BROWN,TRIM4#
main71073-32520-02i198808-198908
MAROON,TRIM3#
main71073-32520-03i198808-198908
MEDIUM GRAY,TRIM1#
main71073-32520-04i198808-198908
DARK BLUE,TRIM8#
main71073-32520-06i198808-198908
BROWN,TRIM4#
main71073-32521-02i198908-199106
MAROON,TRIM3#
main71073-32521-03i198908-199106
MEDIUM GRAY,TRIM1#
main71073-32521-04i198908-199106
DARK BLUE,TRIM8#
main71073-32521-06i198908-199008
BROWN,TRIM4#
main71073-32521-16i199008-199106
BROWN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-32250-02i198901-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,MAROON,TRIM3#
main71074-32250-02i198808-198901
LEATHER PACKAGE & W(POWER SEAT),MAROON,TRIM3#
main71074-32250-03i198912-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,MEDIUM GRAY,TRIM1#
main71074-32250-04i198808-198901
LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#
main71074-32250-04i198901-198908
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,DARK BLUE,TRIM8#
main71074-32250-14i198908-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,DARK BLUE,TRIM8#
main71074-32270-02i198808-199008
MAROON,TRIM3#
main71074-32270-03i198808-199008
MEDIUM GRAY,TRIM1#
main71074-32270-04i198808-199008
DARK BLUE,TRIM8#
main71074-32270-06i198808-199008
BROWN,TRIM4#
main71074-32271-02i199008-199106
MAROON,TRIM3#
main71074-32271-03i199008-199106
MEDIUM GRAY,TRIM1#
main71074-32271-04i199008-199106
DARK BLUE,TRIM8#
main71074-32271-06i199008-199106
BROWN,TRIM4#
main71074-32280-02i198808-199106
MAROON,TRIM3#
main71074-32280-03i198808-199106
MEDIUM GRAY,TRIM1#
main71074-32280-04i198808-199106
DARK BLUE,TRIM8#
main71074-32280-06i198808-199008
BROWN,TRIM4#
main71074-32280-16i199008-199106
BROWN,TRIM4#
main71074-32290-02i198808-198908
MAROON,TRIM3#
main71074-32290-03i198808-198908
MEDIUM GRAY,TRIM1#
main71074-32290-04i198808-198908
DARK BLUE,TRIM8#
main71074-32290-06i198808-198908
BROWN,TRIM4#
main71074-32291-02i198908-199106
MAROON,TRIM3#
main71074-32291-03i198908-199106
MEDIUM GRAY,TRIM1#
main71074-32291-04i198908-199106
DARK BLUE,TRIM8#
main71074-32291-06i198908-199008
BROWN,TRIM4#
main71074-32291-16i199008-199106
BROWN,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-32110i198808-199106
main71511-32130i198808-199106
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-32110i198808-199106
W(POWER SEAT)
main71511-32130i198808-199106
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-32100i198808-199106
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-32100i198808-199106
71563APAD, FRONT SEATBACK SIDE, RH
main71563-32030i198808-199106
71564APAD, FRONT SEATBACK SIDE, LH
main71564-32030i198808-199106
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-32030i198808-199106
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-32030i198808-199106
main71610-32050i198808-199106
main71610-32060i198808-199106
W(POWER SEAT)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-32140i198808-199106
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-32130i198808-199106
main71630-32140i198808-199106
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-32140-02i198808-198901
LEATHER PACKAGE & W(POWER SEAT),MAROON,TRIM3#
main71705-32140-02i198901-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,MAROON,TRIM3#
main71705-32140-03i198912-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,MEDIUM GRAY,TRIM1#
main71705-32140-04i198901-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,DARK BLUE,TRIM8#
main71705-32140-04i198808-198901
LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#
main71705-32190-02i198808-199106
MAROON,TRIM3#
main71705-32190-03i198808-199106
MEDIUM GRAY,TRIM1#
main71705-32190-04i198808-199106
DARK BLUE,TRIM8#
main71705-32190-06i198808-199008
BROWN,TRIM4#
main71705-32190-16i199008-199106
BROWN,TRIM4#
71705BCAP(FOR FRONT SEATBACK BOARD)
main90339-10001-B2i198808-199106
MEDIUM GRAY,TRIM1#
main90339-10001-D1i198808-199106
MAROON,TRIM3#
main90339-10001-E0i198808-199106
BROWN,TRIM4#
main90339-10001-J1i198808-199106
DARK BLUE,TRIM8#
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-32140-02i198808-198901
LEATHER PACKAGE & W(POWER SEAT),MAROON,TRIM3#
main71705-32140-02i198901-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,MAROON,TRIM3#
main71705-32140-03i198912-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,MEDIUM GRAY,TRIM1#
main71705-32140-04i198901-199106
LEATHER PACKAGE & W(POWER SEAT) OR LEATHER PACKAGE,DARK BLUE,TRIM8#
main71705-32140-04i198808-198901
LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#
main71705-32190-02i198808-199106
MAROON,TRIM3#
main71705-32190-03i198808-199106
MEDIUM GRAY,TRIM1#
main71705-32190-04i198808-199106
DARK BLUE,TRIM8#
main71705-32190-06i198808-199008
BROWN,TRIM4#
main71705-32190-16i199008-199106
BROWN,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
main71910-32200-B0i198808-199008
MEDIUM GRAY,TRIM1#
main71910-32200-D0i198808-199008
MAROON,TRIM3#
main71910-32200-E0i198808-199008
BROWN,TRIM4#
main71910-32200-J0i198808-199008
DARK BLUE,TRIM8#
main71910-32250-02i198808-198901
LEATHER PACKAGE,MAROON,TRIM3#
main71910-32250-03i198912-199106
LEATHER PACKAGE,MEDIUM GRAY,TRIM1#
main71910-32250-04i198808-198908
LEATHER PACKAGE,DARK BLUE,TRIM8#
main71910-32250-14i198908-199106
LEATHER PACKAGE,DARK BLUE,TRIM8#
main71910-32300-02i198808-199106
MAROON,TRIM3#
main71910-32300-03i198808-199106
MEDIUM GRAY,TRIM1#
main71910-32300-04i198808-199106
DARK BLUE,TRIM8#
main71910-32300-06i198808-199008
BROWN,TRIM4#
main71910-32300-16i199008-199106
BROWN,TRIM4#
main71910-32301-02i199008-199106
MAROON,TRIM3#
main71910-32301-03i199008-199106
MEDIUM GRAY,TRIM1#
main71910-32301-04i199008-199106
DARK BLUE,TRIM8#
main71910-32301-06i199008-199106
BROWN,TRIM4#
main71910-32330-02i198808-199106
MAROON,TRIM3#
main71910-32330-03i198808-199106
MEDIUM GRAY,TRIM1#
main71910-32330-04i198808-199106
DARK BLUE,TRIM8#
main71910-32330-06i198808-199008
BROWN,TRIM4#
main71910-32330-16i199008-199106
BROWN,TRIM4#
main71910-32460-03i198909-198910
25TH ANNIVERSARY,MEDIUM GRAY
71931SUPPORT, FRONT SEAT HEADREST
main71930-10060-B0i198808-199106
W(LOCK),MEDIUM GRAY,TRIM1#
main71930-10060-D0i198808-199106
W(LOCK),MAROON,TRIM3#
main71930-10060-E0i198808-199106
W(LOCK),BROWN,TRIM4#
main71930-10060-J0i198808-199106
W(LOCK),DARK BLUE,TRIM8#
main71931-10010-B0i198808-199106
W/O(LOCK),MEDIUM GRAY,TRIM1#
main71931-10010-D0i198808-199106
W/O(LOCK),MAROON,TRIM3#
main71931-10010-E0i198808-199106
W/O(LOCK),BROWN,TRIM4#
main71931-10010-J0i198808-199106
W/O(LOCK),DARK BLUE,TRIM8#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-32020i198808-199106
72791LEVER, LUMBAR SUPPORT
main72791-22020-B0i198808-199106
MEDIUM GRAY,TRIM1#
main72791-22020-D0i198808-199106
MAROON,TRIM3#
main72791-22020-E0i198808-199106
BROWN,TRIM4#
main72791-22020-J0i198808-199106
DARK BLUE,TRIM8#
72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
main90520-01002i198808-199106
9015940088
main90159-40088
9046818071
main90468-18071
9166640616
main91666-40616

25 parts on this diagram · 5 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
