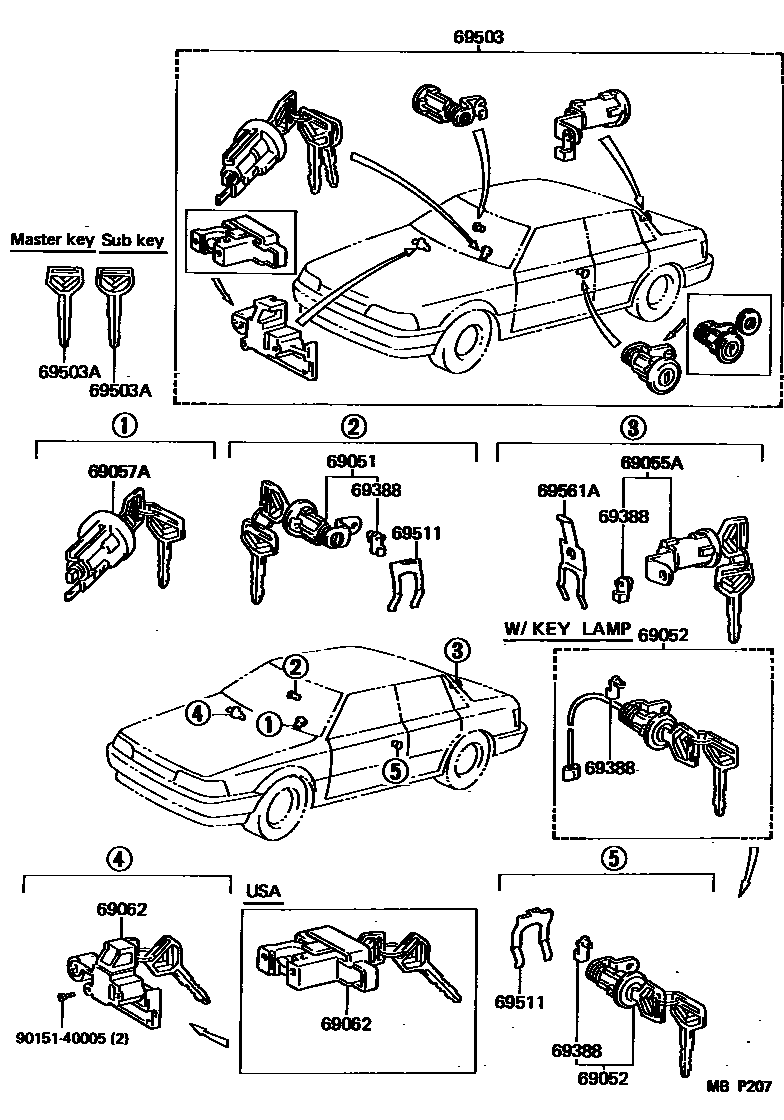

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-32070iSV2#,VZV21198808-199106

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-32070iSV2#,VZV21..DX,STD198808-199106

main69052-32080iSV2#,VZV21..LE198808-199106

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-32150iSV2#,VZV21..SED198808-199106

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-32080iSV2#,VZV21198808-199106

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-32060iSV2#,VZV21..CND198808-199106

main69056-32070-B0iSV2#,VZV21..USA198808-199106

MEDIUM GRAY,TRIM1#

main69056-32070-D0iSV2#,VZV21..USA198808-199106

MAROON,TRIM3#

main69056-32070-E0iSV2#,VZV21..USA198808-199106

BROWN,TRIM4#

main69056-32070-J0iSV2#,VZV21..USA198808-199106

DARK BLUE,TRIM8#

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iSV21,VZV21..WG198808-199106

LUGGAGE DOOR

main69759-24080iSV2#,VZV21..SED198808-199106

LUGGAGE DOOR

main69759-32070iSV2#,VZV21198808-199106

FRONT DOOR,RH

main69759-32080iSV2#,VZV21198808-199106

FRONT DOOR,LH

69503CYLINDER SET, LOCK

main69005-32190iSV2#..SED..(DX,STD)..CND198808-199106

main69005-32230-B0iSV2#,VZV21..SED..(DX,STD)..USA198808-199106

MEDIUM GRAY,TRIM1#

main69005-32230-D0iSV2#,VZV21..SED..(DX,STD)..USA198808-199106

MAROON,TRIM3#

main69005-32230-E0iSV2#,VZV21..SED..(DX,STD)..USA198808-199106

BROWN,TRIM4#

main69005-32230-J0iSV2#,VZV21..SED..(DX,STD)..USA198808-199106

DARK BLUE,TRIM8#

main69005-32240-B0iSV2#,VZV21..SED..LE..USA198808-199106

MEDIUM GRAY,TRIM1#

main69005-32240-D0iSV2#,VZV21..SED..LE..USA198808-199106

MAROON,TRIM3#

main69005-32240-E0iSV2#,VZV21..SED..LE..USA198808-199106

BROWN,TRIM4#

main69005-32240-J0iSV2#,VZV21..SED..LE..USA198808-199106

DARK BLUE,TRIM8#

main69005-32280iSV2#,VZV21..SED..LE..CND198808-199106

main69005-32300-02iSV21,VZV21..WG..DX..USA198808-199106

MAROON,TRIM3#

main69005-32300-03iSV21,VZV21..WG..DX..USA198808-199106

MEDIUM GRAY,TRIM1#

main69005-32300-04iSV21,VZV21..WG..DX..USA198808-199106

DARK BLUE,TRIM8#

main69005-32300-06iSV21,VZV21..WG..DX..USA198808-199106

BROWN,TRIM4#

main69005-32310iSV21..WG..DX..CND198808-199106

main69005-32320-02iSV21,VZV21..WG..LE..USA198808-199106

MAROON,TRIM3#

main69005-32320-03iSV21,VZV21..WG..LE..USA198808-199106

MEDIUM GRAY,TRIM1#

main69005-32320-04iSV21,VZV21..WG..LE..USA198808-199106

DARK BLUE,TRIM8#

main69005-32320-06iSV21,VZV21..WG..LE..USA198808-199106

BROWN,TRIM4#

main69005-32330iSV21,VZV21..WG..LE..CND198808-199106

69503AKEY, BLANK

main90999-00099iSV2#,VZV21198808-199106

MASTER KEY

main90999-00100iSV2#,VZV21198808-199106

SUB KEY

main90999-00118iSV2#,VZV21198808-199106

MASTER KEY,W(*68)

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32020×2iSV2#,VZV21198808-199106

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-32020iSV2#,VZV21..SED198808-199106

9015140005

main90151-40005

11 parts on this diagram · 2 diagrams in section
