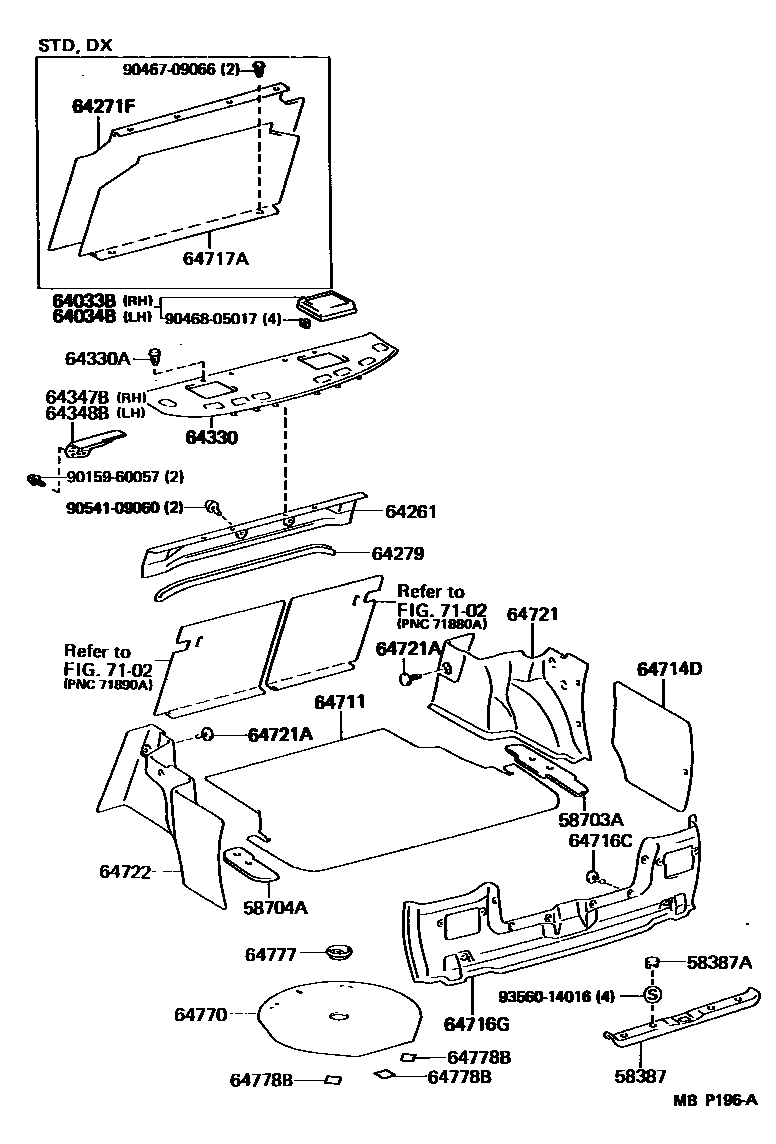

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-32020-03iSV2#,VZV21..SED..USA198808-199106

LIGHT GRAY,TRIM1#,4#,8#

main58387-32020-03iSV2#,VZV21..SED..CND198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

58387APLUG, HOLE(FOR REAR FLOOR FINISH PLATE)

main90950-01503-12iSV2#,VZV21..SED..(LE,STD)..USA198808-199106

MAROON,TRIM3#

sub90950-01503

main90950-01503-13iSV2#,VZV21..SED198808-199106

MEDIUM GRAY,TRIM1#

sub90950-01503

main90950-01503-14iSV2#,VZV21..SED..LE198808-199106

DARK BLUE,TRIM8#

sub90950-01503

main90950-01503-36iSV21..STD198808-199106

BROWN,TRIM4#

sub90950-01503

main90950-01503-B0iSV21,VZV21..SED..DX199008-199106

LIGHT GRAY,TRIM1#

sub90950-01503

main90950-01503-B0iSV21,VZV21..SED..DX198808-199106

LIGHT GRAY,TRIM1#,4#,8#

sub90950-01503

main90950-01503-B0iSV21,VZV21..SED..DX198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

sub90950-01503

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-32010iSV21,VZV21..SED198808-199106

main58703-32020iSV25198808-199106

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-32010iSV21,VZV21..SED198808-199106

main58704-32040iSV25198808-199106

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-03010-B1iSV2#,VZV21..SED..LE199010-199106

MEDIUM GRAY,TRIM1#

main64033-03010-D1iSV2#,VZV21..SED..(DX,STD)..USA199010-199106

MAROON,TRIM3#

main64033-03010-E0iSV2#..SED..DX..CND199010-199106

BROWN,TRIM4#

main64033-03010-J1iSV2#,VZV21..SED..LE199010-199106

LIGHT BLUE,TRIM8#

main64033-22040-02iSV2#,VZV21..SED..LE..USA198808-199106

MAROON,TRIM3#

main64033-22040-03iSV2#..SED..DX..CND198808-199106

MEDIUM GRAY,TRIM1#

main64033-22040-04iSV2#,VZV21..SED..(DX,STD)..USA198808-199106

DARK BLUE,TRIM8#

main64033-22040-06iSV2#..SED..DX..CND198808-199106

BROWN,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-03010-B1iSV2#..SED..DX..CND199010-199106

MEDIUM GRAY,TRIM1#

main64033-03010-D1iSV2#,VZV21..SED..(DX,STD)..USA199010-199106

MAROON,TRIM3#

main64033-03010-E0iSV2#..SED..DX..CND199010-199106

BROWN,TRIM4#

main64033-03010-J1iSV2#,VZV21..SED..LE199010-199106

LIGHT BLUE,TRIM8#

main64033-22040-02iSV2#,VZV21..SED..LE..USA198808-199106

MAROON,TRIM3#

main64033-22040-03iSV2#,VZV21..SED..LE198808-199106

MEDIUM GRAY,TRIM1#

main64033-22040-04iSV2#,VZV21..SED..(DX,STD)..USA198808-199106

DARK BLUE,TRIM8#

main64033-22040-06iSV2#,VZV21..SED198808-199106

BROWN,TRIM4#

64261GARNISH, ROOM PARTITION

main64261-32010-02iSV2#,VZV21..SED..LE..USA198808-199106

MAROON,TRIM3#

sub64261-32010

main64261-32010-03iSV2#,VZV21..SED..LE198808-199106

MEDIUM GRAY,TRIM1#

sub64261-32010

main64261-32010-04iSV2#,VZV21..SED..(DX,LE)198808-199106

DARK BLUE,TRIM8#

sub64261-32010

main64261-32010-06iSV2#,VZV21..SED..LE198808-199106

BROWN,TRIM4#

sub64261-32010

64271FTRIM, ROOM PARTITION

main64271-32030iSV2#,VZV21..SED..(DX,STD)198808-199106

64279PROTECTOR, ROOM PARTITION

main64279-32020-02iSV2#,VZV21..SED..(DX,LE)..USA198808-199106

MAROON,TRIM3#

main64279-32020-02iSV2#,VZV21..SED..LE..USA199008-199106

MAROON,TRIM4#

main64279-32020-03iSV2#,VZV21..SED..LE198808-199106

MEDIUM GRAY,TRIM1#

main64279-32020-04iSV2#,VZV21..SED..(DX,LE)198808-199106

DARK BLUE,TRIM8#

main64279-32020-06iSV2#,VZV21..SED..LE198808-199106

BROWN,TRIM4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-32142-02iSV2#,VZV21..SED..(DX,STD)..USA198808-199106

MAROON,TRIM3#

sub64330-32142

main64330-32142-03iSV2#,VZV21..SED..(DX,STD)198808-199106

MEDIUM GRAY,TRIM1#

sub64330-32142

main64330-32142-04iSV2#,VZV21..SED..(DX,STD)198808-199106

DARK BLUE,TRIM8#

sub64330-32142

main64330-32142-06iSV2#,VZV21..SED..(DX,STD)198808-199106

BROWN,TRIM4#

sub64330-32142

main64330-32232-02iSV2#,VZV21..SED..DX..USA198808-199106

W(REAR SPEAKER),MAROON,TRIM3#

sub64330-32232

main64330-32232-02iSV2#,VZV21..SED..LE..USA198808-199106

MAROON,TRIM3#

sub64330-32232

main64330-32232-03iSV2#..SED..(DX,STD)..CND198808-199106

W(REAR SPEAKER),MEDIUM GRAY,TRIM1#

sub64330-32232

main64330-32232-03iSV2#,VZV21..SED..LE198808-199106

MEDIUM GRAY,TRIM1#

sub64330-32232

main64330-32232-04iSV2#..SED..(DX,STD)..CND198808-199106

W(REAR SPEAKER),DARK BLUE,TRIM8#

sub64330-32232

main64330-32232-04iSV2#,VZV21..SED..LE198808-199106

DARK BLUE,TRIM8#

sub64330-32232

main64330-32232-06iSV2#,VZV21..SED..(DX,STD)..USA198808-199106

W(REAR SPEAKER),BROWN,TRIM4#

sub64330-32232

main64330-32232-06iSV2#,VZV21..SED..LE198808-199106

BROWN,TRIM4#

sub64330-32232

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-B0iSV2#,VZV21..SED198808-199106

MEDIUM GRAY,TRIM1#

sub90467-08046

sub90467-08037

main90467-08046-D0iSV2#,VZV21..SED..USA198808-199106

MAROON,TRIM3#

sub90467-08046

sub90467-08037

main90467-08046-E0iSV2#,VZV21..SED198808-199106

BROWN,TRIM4#

sub90467-08046

sub90467-08037

main90467-08046-J0iSV2#,VZV21..SED198808-199106

LIGHT BLUE,TRIM8#

sub90467-08046

sub90467-08037

64347BBRACKET, PACKAGE TRAY REINFORCEMENT, RH

main64347-32020iSV2#,VZV21..SED198808-199106

64348BBRACKET, PACKAGE TRAY REINFORCEMENT, LH

main64348-32010iSV2#,VZV21..SED198808-199106

sub64348-32020

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-03010-B1iSV21,VZV21..SED..(DX,LE)..CND198809-199106

LIGHT GRAY,TRIM1#,4#,8#

main64711-03010-B1iSV21,VZV21..SED..(DX,LE)..CND198809-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64711-32030-03iSV21..STD..USA198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64711-32030-03iSV21..STD..USA198808-199106

LIGHT GRAY,TRIM1#,4#,8#

main64711-32040-03iSV21,VZV21..SED..LE..CND198808-199106

LIGHT GRAY,TRIM1#,4#,8#

main64711-32040-03iSV21,VZV21..SED..(DX,LE)..CND198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64711-32120-03iSV25..DX..CND198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64711-32120-03iSV25..DX..CND198808-199106

LIGHT GRAY,TRIM1#,4#,8#

main64711-32130-03iSV25..LE..USA198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64711-32130-03iSV25..DX..USA198908-199106

W(SPLIT REAR SEAT),LIGHT GRAY,TRIM1#,3#,4#,8#

main64711-32130-03iSV25..LE..USA198808-199106

LIGHT GRAY,TRIM1#,4#,8#

main64711-32130-03iSV25..DX..CND198908-199106

W(SPLIT REAR SEAT),LIGHT GRAY,TRIM1#,4#,8#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-32040-03iSV21,VZV21..SED..CND198808-199106

LIGHT GRAY,TRIM1#,4#,8#

main64714-32040-03iSV21,VZV21..SED..CND198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64714-32120-03iSV25..CND198808-199106

GRAY,TRIM1#,3#,4#,8#

main64714-32120-03iSV25..USA198808-199106

GRAY,TRIM1#,4#,8#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-33iSV2#,VZV21..SED..USA198808-199106

GRAY,TRIM1#,3#,4#,8#

sub90467-05004

main90467-05004-33iSV2#,VZV21..SED..USA198808-199106

GRAY,TRIM1#,4#,8#

sub90467-05004

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-32040-03iSV21..SED..(DX,STD)..CND198808-199106

LIGHT GRAY,TRIM1#,4#,8#

sub64716-32050

main64716-32040-03iSV21,VZV21..SED..(DX,STD)..USA198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

sub64716-32050

main64716-32050-03iSV21,VZV21..SED..LE..USA198808-199106

LIGHT GRAY,TRIM1#,4#,8#

main64716-32050-03iSV21,VZV21..SED..LE..CND198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64716-32120-03iSV25..DX..CND198808-199106

LIGHT GRAY,TRIM1#,4#,8#

main64716-32120-03iSV25..DX..USA198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64716-32130-03iSV25..LE..CND198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64716-32130-03iSV25..LE..USA198808-199106

LIGHT GRAY,TRIM1#,4#,8#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-03010-B2iSV21..SED..(DX,STD)..CND198809-199106

LIGHT GRY,TRIM1#,3#,4#,8#

main64717-03010-B2iSV21..SED..(DX,STD)..CND198809-199106

LIGHT GRY,TRIM1#,4#,8#

main64717-32030-03iSV21..SED..(DX,STD)..CND198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64717-32030-03iSV21..SED..(DX,STD)..CND198808-199106

LIGHT GRAY,TRIM1#,4#,8#

main64717-32040-03iSV25..DX..CND198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64717-32040-03iSV25..DX..CND198808-199106

LIGHT GRAY,TRIM1#,4#,8#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-32110-03iSV21,VZV21..SED..CND198808-199106

LIGHT GRAY,TRIM1#,4#,8#

main64721-32110-03iSV21,VZV21..SED..CND198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64721-32120-03iSV25..LE..USA198808-199106

LIGHT GRAY,TRIM1#,4#,8#

main64721-32120-03iSV25..DX..CND198908-199106

W(SPLIT REAR SEAT),LIGHT GRAY,TRIM1#,4#,8#

main64721-32120-03iSV25..DX..CND198908-199106

W(SPLIT REAR SEAT),LIGHT GRAY,TRIM1#,3#,4#,8#

main64721-32120-03iSV25..LE..USA198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64721-32130-03iSV25..DX..CND198808-199106

GRAY,TRIM1#,3#,4#,8#

main64721-32130-03iSV25..DX..USA198808-199106

GRAY,TRIM1#,4#,8#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-06114-03iSV2#,VZV21..SED..(DX,STD)..USA198906-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

sub90467-06114

main90467-06114-03iSV2#,VZV21..SED..(DX,STD)..USA198906-199106

LIGHT GRAY,TRIM1#,4#,8#

sub90467-06114

main90467-06114-03iSV2#..SED..DX..CND198908-199106

W(SPLIT REAR SEAT),LIGHT GRAY,TRIM1#,4#,8#

sub90467-06114

main90467-06114-03iSV2#..SED..DX..CND198908-199106

W(SPLIT REAR SEAT),LIGHT GRAY,TRIM1#,3#,4#,8#

sub90467-06114

main90467-07042-B0iSV2#,VZV21..SED..(DX,STD)..USA198808-198906

LIGHT GRAY,TRIM1#,3#,4#,8#

sub90467-07042

sub90467-06175

main90467-07042-B0iSV2#,VZV21..SED..(DX,STD)..USA198808-198906

LIGHT GRAY,TRIM1#,4#,8#

sub90467-07042

sub90467-06175

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-32110-03iSV21,VZV21..SED..USA198808-199106

LIGHT GRAY,TRIM1#,4#,8#

main64722-32110-03iSV21,VZV21..SED..USA198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64722-32120-03iSV25..LE..CND198808-199106

LIGHT GRAY,TRIM1#,4#,8#

main64722-32120-03iSV25..DX..USA198908-199106

W(SPLIT REAR SEAT),LIGHT GRAY,TRIM1#,3#,4#,8#

main64722-32120-03iSV25..LE..USA198808-199106

LIGHT GRAY,TRIM1#,3#,4#,8#

main64722-32120-03iSV25..DX..CND198908-199106

W(SPLIT REAR SEAT),LIGHT GRAY,TRIM1#,4#,8#

main64722-32130-03iSV25..DX..USA198808-199106

GRAY,TRIM1#,3#,4#,8#

main64722-32130-03iSV25..DX..CND198808-199106

GRAY,TRIM1#,4#,8#

64770COVER ASSY, SPARE WHEEL

main64770-32060iSV25198808-199106

main64771-32040iSV21,VZV21..SED198808-199106

64777CLAMP, SPARE WHEEL COVER

main64777-32030iSV2#,VZV21..SED198808-199106

64778BPROTECTOR, SPARE WHEEL

main64778-14020iSV21..STD198808-199106

7102

9015960057

main90159-60057

9046709066

main90467-09066

9046805017

main90468-05017

9054109060

main90541-09060

9356014016

main93560-14016

30 parts on this diagram · 2 diagrams in section
