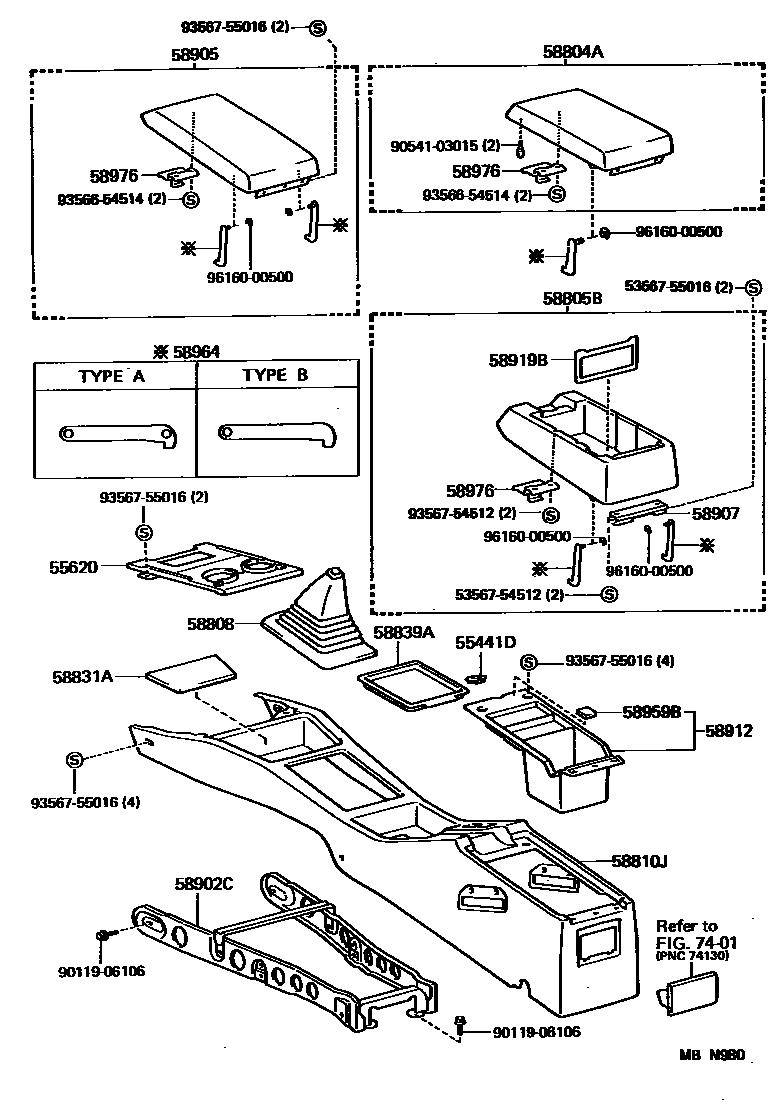

CONSOLE BOX & BRACKET
55441DBOX, INSTRUMENT PANEL COIN
main55539-20020-B0iSV21..5F;SV21..4FC..CND;SV25,VZV21..CND;SV21..4FC..STD..USA;SV25,VZV21..5F..USA198808-198906
MEDIUM GRAY,TRIM1#
sub55539-20020
main55539-20020-E0iSV21..5F;SV21..4FC..CND;SV25,VZV21..CND;SV21..4FC..STD..USA;SV25,VZV21..5F..USA198808-198906
BROWN,TRIM4#
sub55539-20020
main55539-20020-J0iSV21..5F;SV21..4FC..CND;SV25,VZV21..CND;SV21..4FC..STD..USA;SV25,VZV21..5F..USA198808-198906
DARK BLUE,TRIM8#
sub55539-20020
MEDIUM GARY,TRIM1#
sub55539-32030
main55539-32030-04iSV21..5F;SV21..4FC..CND;SV25,VZV21..CND;SV21..4FC..STD..USA;SV25,VZV21..5F..USA198906-199106
DARK BLUE,TRIM8#
sub55539-32030
main55539-32030-06iSV21..5F;SV21..4FC..CND;SV25,VZV21..CND;SV21..4FC..STD..USA;SV25,VZV21..5F..USA198906-199106
BROWN,TRIM4#
sub55539-32030
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
58805BPANEL SUB-ASSY, CONSOLE, LOWER
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
58810JBOX ASSY, CONSOLE
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
58839ACOVER, CONSOLE BOX HOLE
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58912BOX, REAR CONSOLE, NO.2
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
58919BPLATE, CONSOLE BOX
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
TYPE A
TYPE B
7401
5356754512
main53567-54512
5356755016
main53567-55016
9011906106
main90119-06106
9054103015
main90541-03015
9356654514
main93566-54514
9356754512
main93567-54512
9356755016
main93567-55016
9616000500
main96160-00500
25 parts on this diagram · 2 diagrams in section
