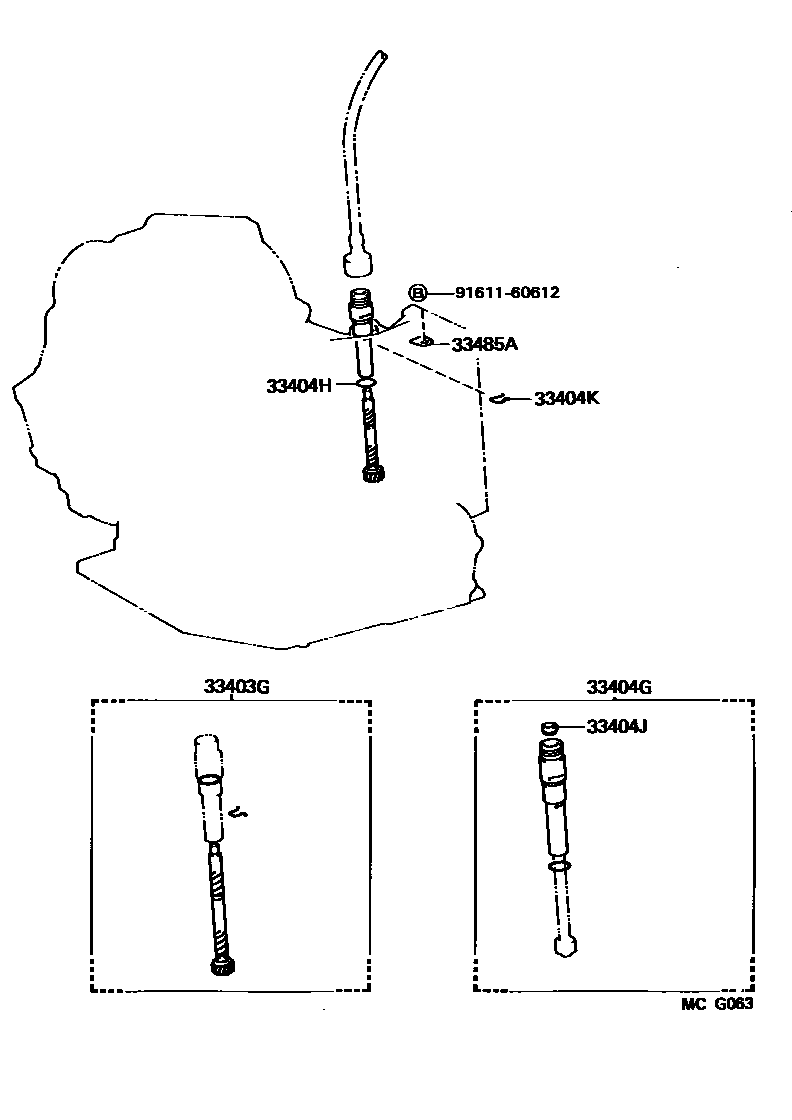

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1 0002 1

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39155iSV21..4FC198808-199106

N=22,MARK 22:27

main33403-39225iSV25,VZV21..4FC198808-199106

N=24,MARK 24:29

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12030iSV25,VZV21..4FC198808-199106

main33404-32010iSV21..4FC198808-199106

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iSV21..4FC198808-199106

main96711-24030iSV25,VZV21..4FC198808-199106

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iSV2#,VZV21..4FC198808-199106

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iSV2#,VZV21..4FC198808-199106

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010iSV21..4FC198808-199106

main33485-30020iSV25,VZV21..4FC198808-199106

9161160612

main91611-60612

7 parts on this diagram · 2 diagrams in section
