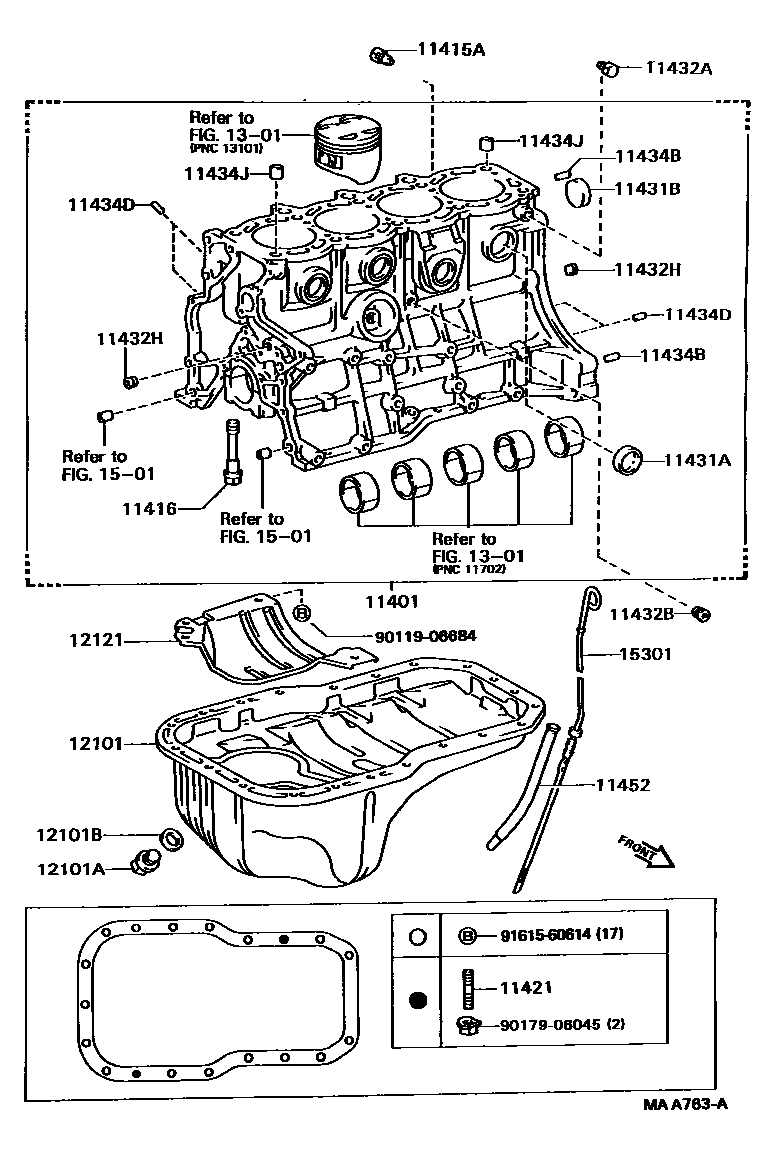

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-69325i2VZFE..VZV21198808-198906

sub11401-69385

main11401-69385i2VZFE..VZV21198906-199106

sub11401-69386

main11401-79295i3SFE..SV21198808-198906

sub11401-79296

sub90915-03001

main11401-79296i3SFE..SV21198906-199005

sub11401-79297

main11401-79297i3SFE..SV21199005-199106

sub11401-79298

main11401-79345i3SFE..SV25198808-198906

sub11401-79346

main11401-79346i3SFE..SV25198906-199005

sub11401-79347

main11401-79347i3SFE..SV25199005-199106

sub11401-79348

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i3SFE..SV2#198808-199106

main96431-23814i2VZFE..VZV21198808-199106

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10028i3SFE..SV2#198808-199106

main90910-02072i2VZFE..VZV21198808-199106

sub90910-02176

11421BOLT, STUD(FOR OIL PAN)

main90116-06014i2VZFE..VZV21198808-199105

main90116-06022i3SFE..SV2#198808-199106

main90116-06119i2VZFE..VZV21199105-199106

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500i2VZFE..VZV21198808-199106

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i3SFE..SV2#198808-199106

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51006i3SFE..SV2#198808-199008

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90344-52003i3SFE..SV2#198808-199106

11432HPLUG, W/HEAD TAPER SCREW, NO.5

main90344-53006i3SFE..SV2#199012-199106

main90344-53008i3SFE..SV2#198808-199007

main90344-53015i2VZFE..VZV21198808-199106

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i3SFE..SV2#198808-199106

L=22,OD=10

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i2VZFE..VZV21198808-199106

L=14,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i3SFE..SV2#198808-199106

main90253-16001i2VZFE..VZV21198808-199106

11452GUIDE, OIL LEVEL GAGE

main11452-62010i2VZFE..VZV21198808-199106

main11452-74030i3SFE..SV2#198808-199106

sub11452-74031

12101PAN SUB-ASSY, OIL

main12101-62010i2VZFE..VZV21198808-198905

sub12101-62030

sub12122-62010

sub15147-62020

main12101-62030i2VZFE..VZV21198905-199105

sub12101-62031

main12101-62031i2VZFE..VZV21199105-199106

main12101-74022i3SFE..SV2#198808-198908

sub12101-74050

main12101-74050i3SFE..SV2#198908-199106

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3SFE..SV2#198808-199106

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12019i3SFE..SV2#198808-198812

sub90430-12028

main90430-12020i2VZFE..VZV21198808-199105

sub90430-12028

main90430-12024i3SFE..SV2#198812-198912

sub90430-12028

main90430-12027i3SFE..SV2#198912-199106

sub90430-12031

12121PLATE, OIL PAN BAFFLE, NO.1

main12122-62010i2VZFE..VZV21198905-199106

sub12122-62011

main12123-74040i3SFE..SV2#198908-199106

main12123-88360i3SFE..SV2#198808-198908

1301

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-62010i2VZFE..VZV21198808-198905

sub15301-62020

main15301-62020i2VZFE..VZV21198906-199106

main15301-74010i3SFE..SV2#198808-199106

9011906684

main90119-06684

9017906045

main90179-06045

9161560614

main91615-60614

23 parts on this diagram · 2 diagrams in section
