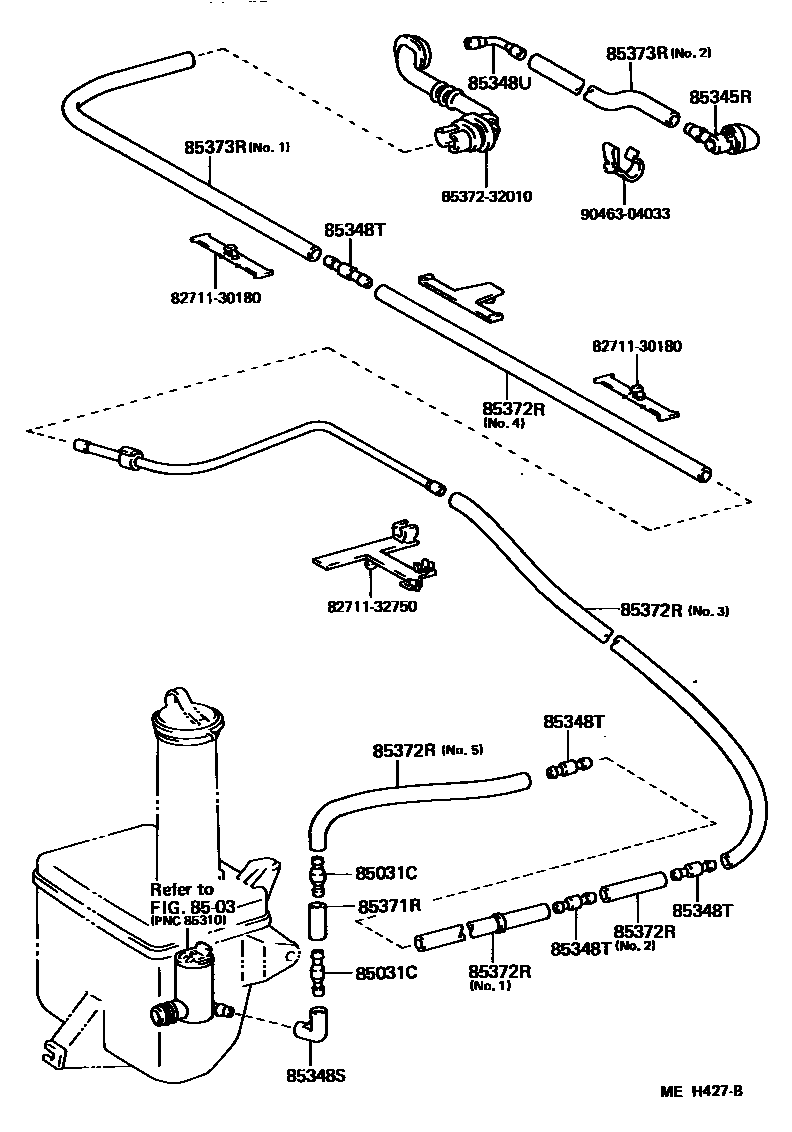

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031CVALVE SUB-ASSY, WASHER

main85031-30010198710-198808

85345RNOZZLE, REAR WASHER

main85345-32010198608-198808

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481198705-198808

main85355-20070198608-198705

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122198608-198808

85348UJOINT, REAR WASHER HOSE, NO.3

main85355-32020198608-198808

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299198608-198808

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33299198608-198808

main90099-33366198710-198808

main90446-06013198608-198710

main90446-07001198608-198808

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33221198608-198808

main90099-33299198710-198808

main90446-06013198608-198710

8271130180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30180

8271132750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32750

8537232010HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-32010

9046304033

main90463-04033

13 parts on this diagram · 1 diagram in section
