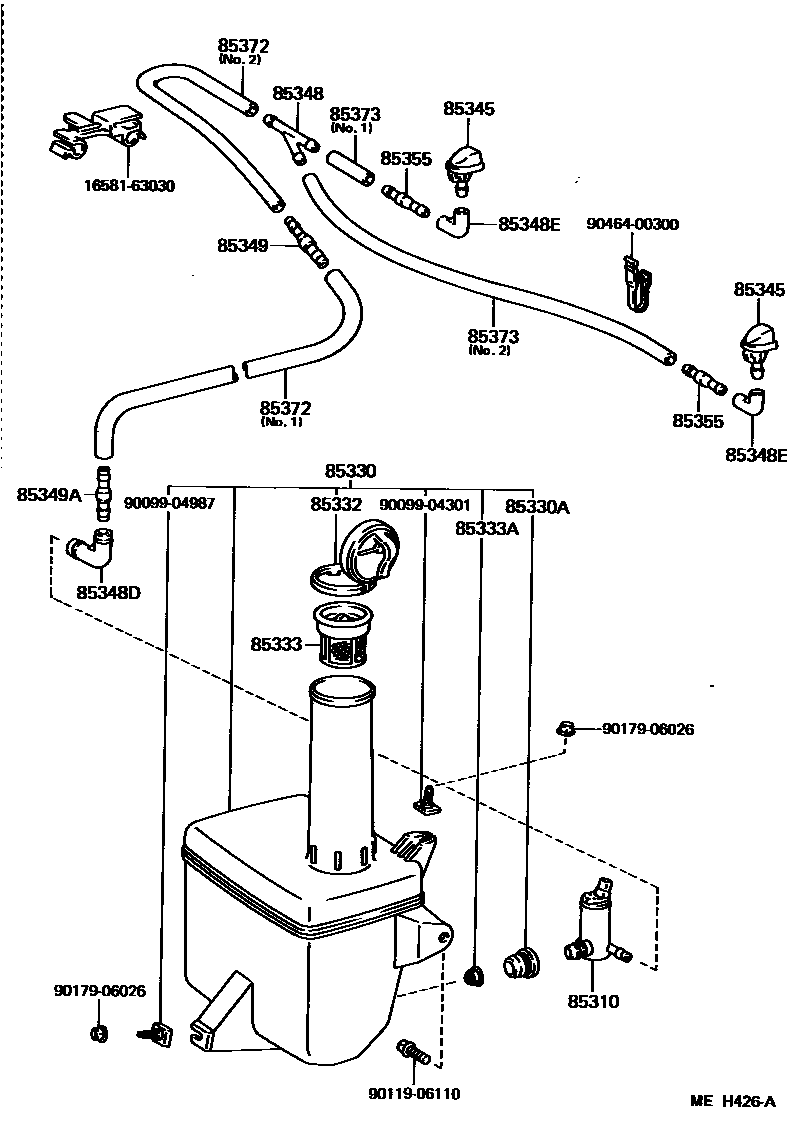

WINDSHIELD WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
RR MOTOR
FR MOTOR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85333AFILTER, WINDSHIELD WASHER JAR, NO.2
85345NOZZLE, WINDSHIELD WASHER
LH
RH
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
sub85334-22470
85349AJOINT, WINDSHIELD WASHER HOSE, NO.2
sub85334-22480
85355VALVE, WINDSHIELD WASHER HOSE
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1240),NO.1
L=1450(*H,L=615),NO.2
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=30),NO.1
L=1450,NO.1,NO.2
L=1000(*H,L=530),NO.2
1658163030CLAMP, HOSE(FOR WATER HOSE)
main16581-63030
9009904301
main90099-04301
9009904987
main90099-04987
9011906110
main90119-06110
9017906026
main90179-06026
9046400300
main90464-00300
21 parts on this diagram · 2 diagrams in section
