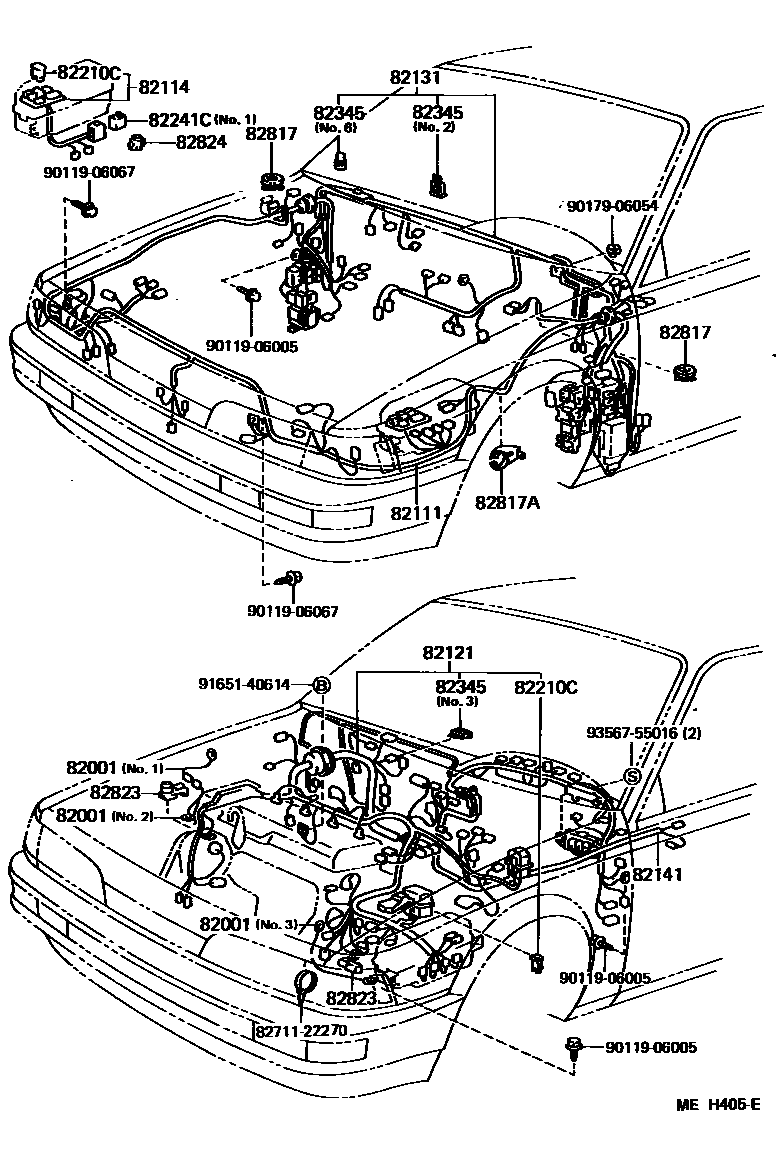

WIRING & CLAMP
82001CABLE, BOND, NO.1
NO.3
NO.2
NO.2
NO.2
NO.1
82111WIRE, ENGINE ROOM MAIN
sub82111-32081
sub82111-32161
W(CRUISE CONTROL)
W(*66) OR W(*66 & *CRC)
sub82111-32241
W(ANTI-LOCK BRAKE SYSTEM)
82114WIRE, ENGINE ROOM, NO.4
W/*AIC
82121WIRE, ENGINE
82131WIRE, COWL
W/*PW OR *SNR
W(*PW) OR W(*MR) OR W(*PW & *MR)
W/*PW OR *SNR OR *PW,*SNR
W(POWER WINDOW)
W(POWER WINDOW)
W(*PW) OR W(*MR) OR W(*PW & *MR)
W/*PHC
W(*PW & *CRC) OR W(*MR & *CRC)
W(*PW & *CRC) OR W(*MR & *CRC) OR W(*PW & *MR & *CRC)
W/*PW,*CRC OR *SNR,*CRC;W/*PW,*SNR,*CRC
W(*PW & *CRC) OR W(*MR & *CRC)
W(*PW & *CRC) OR W(*PW & *MR & *CRC)
W(*PW & *CRC) OR W(*MR & *CRC) OR W(*PW & *MR & CRC)
W/*PW
W/*PHC & *PW
W(*PW) OR W(*PW & *MR)
W(POWER WINDOW)
W/*PW OR *PW,*SNR
W(POWER WINDOW)
W(*PW) OR W(*PW & *MR)
W(*PW) OR W(*PW & *CRC)
W/*PHC
W/*CRC
W/*CRC
W(CRUISE CONTROL)
BASE GRADE
BASE GRADE
W(*PW) OR W(*MR) OR W(*PW & *MR)
W(*PW) OR W(*PW & *CRC)
W/*PW OR *SNR
W(*PW) OR W(*PW & *CRC)
W(*PW) OR W(*MR) OR W(*PW & *MR)
W(*PW) OR W(*MR) OR W(*PW & *MR) OR W(*PW & *CRC) OR W(*PW & *MR & *CRC)
W/*PW OR *SNR OR W/*PW,*SNR
W(*PW) OR W(*PW & *MR)
W(CRUISE CONTROL)
82141WIRE, INSTRUMENT PANEL
W/*DS
W(DIGITAL SPEEDOMETER)
W/*DS
W(DIGITAL SPEEDOMETER)
W/*DS
W(DIGITAL SPEEDOMETER)
W/DS
BASE GRADE
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK,30A
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
40A,TERM.:FEMALE,GRN,40A
80A,TERM.:MALE,BLK,80A
80A,TERM.:MALE,BLK
82241CWIRE, RELAY
W/O(AIR CONDITIONER),NO.1
W/O *AIC,NO.1
W/O(LAMP FAILURE SENSOR),NO.2
W/O(LAMP FAILUE SENSOR),NO.2
BASE GRADE W/O(LAMP FAILURE SENSOR),NO.2
82345DIODE
COWL WIRE,NO.2
ENGINE WIRE,NO.3
COWL WIRE,NO.6
COWL WIER,NO.6
BASE GRADE,COWL WIRE,NO.6
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82823CAP, TERMINAL, NO.1
ST
STARTER
ALTERNATOR
82824CONNECTOR, WIRING HARNESS
W/O *AIC
8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22270
9011906005
main90119-06005
9011906067
main90119-06067
9017906054
main90179-06054
9165140614
main91651-40614
9356755016
main93567-55016
