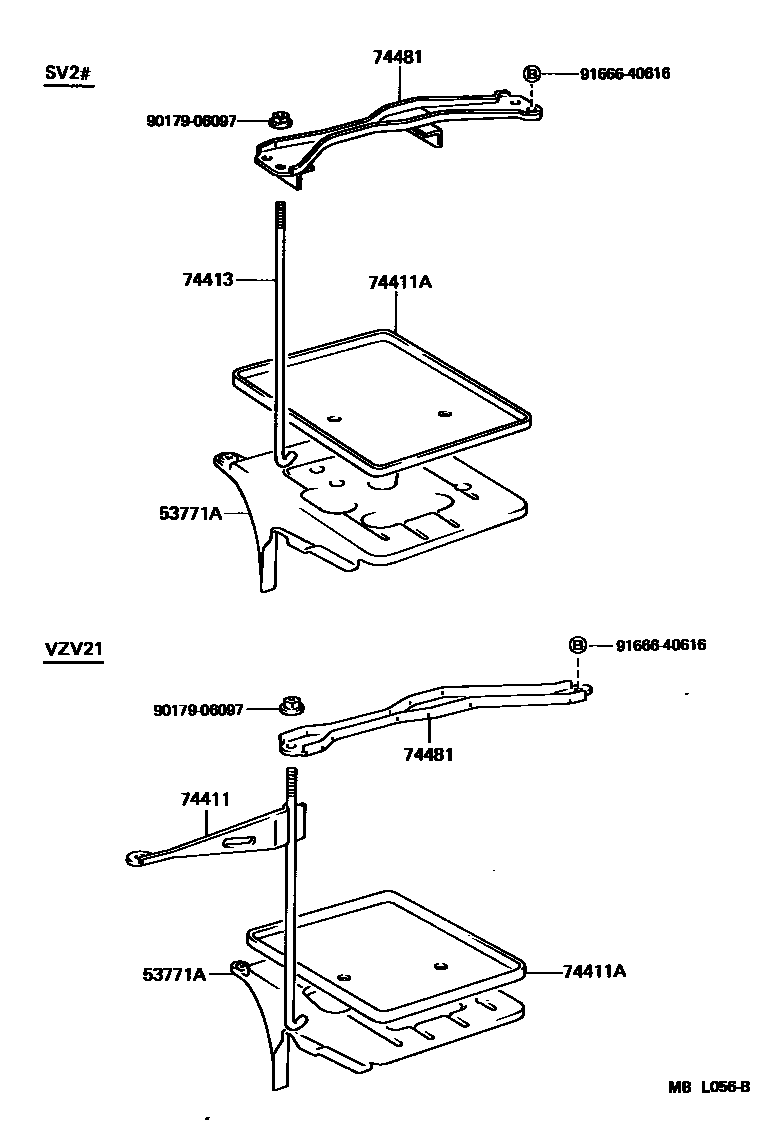

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-32020iSV21198702-198710

74411CARRIER, BATTERY

main74403-32050iVZV21198802-198808

74411ATRAY, BATTERY

main74431-14030iSV21198608-198710

74413BOLT, BATTERY CLAMP

main74451-32010iSV21198608-198710

74481CLAMP, BATTERY HOLD DOWN

main74404-32050iSV21198608-198710

9017906097

main90179-06097

9166640616

main91666-40616

7 parts on this diagram · 1 diagram in section
