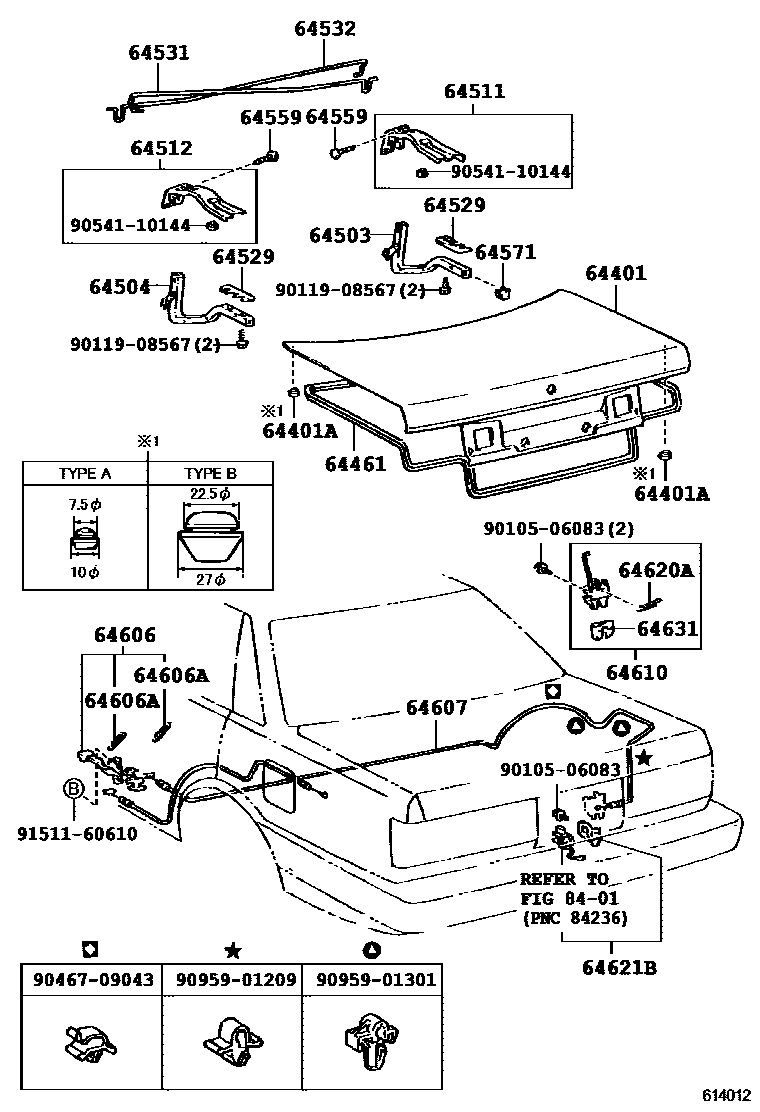

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
TYPE B
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
sub64461-32051
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64559PIN, LUGGAGE DOOR HINGE
64571COVER, LUGGAGE COMPARTMENT DOOR HINGE
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64631PROTECTOR, LUGGAGE DOOR LOCK
8401
9010506083
main90105-06083
9011908567
main90119-08567
9046709043
main90467-09043
9054110144
main90541-10144
9095901209
main90959-01209
9095901301
main90959-01301
9151160610
main91511-60610
27 parts on this diagram · 1 diagram in section
