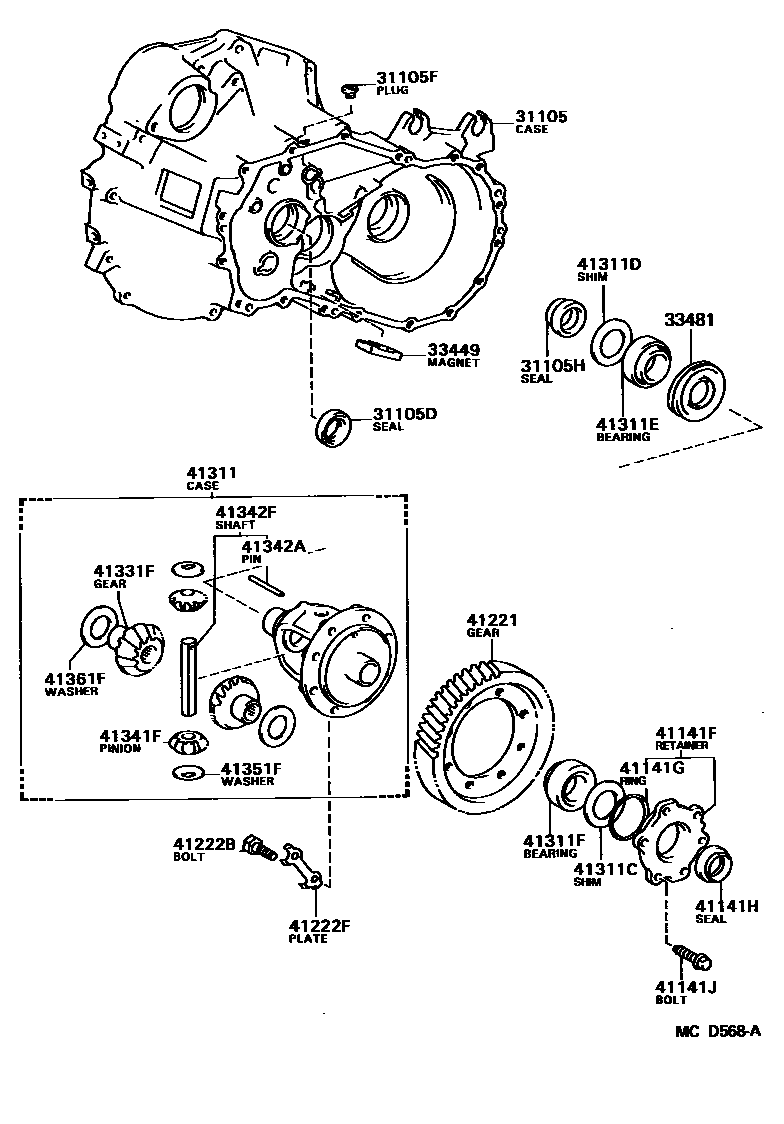

FRONT AXLE HOUSING & DIFFERENTIAL
31105CASE SUB-ASSY, TRANSAXLE(MTM)
sub31115-20014
31105FPLUG(FOR TRANSAXLE CASE)
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
sub90311-35026
33481GEAR, SPEEDOMETER DRIVE (MTM)
W(ANTI-LOCK BRAKE SYSTEM)
41141GRING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41311CASE, FRONT DIFFERENTIAL
sub41301-32H00
sub90564-49001
sub90564-49002
sub90564-49003
sub90564-49004
sub90564-49005
sub90564-49006
sub90564-49007
sub90564-49008
sub90564-49009
sub90564-49010
sub90564-49011
sub90564-49012
sub90564-49013
sub90564-49014
sub90564-49015
sub90564-49016
sub90564-49017
sub90564-49018
sub90564-49019
sub41301-32022
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.90,MARK 01
T=1.90,MARK 01,T=1.90,MARK 01
T=1.95,MARK 02,T=1.95,MARK 02
T=1.95,MARK 02
T=2.00,MARK 03
T=2.00,MARK 03,T=2.00,MARK 03
T=2.05,MARK 04
T=2.05,MARK 04,T=2.05,MARK 04
T=2.10,MARK 05,T=2.10,MARK 05
T=2.10,MARK 05
T=2.15,MARK 06,T=2.15,MARK 06
T=2.15,MARK 06
T=2.20,MARK 07,T=2.20,MARK 07
T=2.20,MARK 07
T=2.25,MARK 08,T=2.25,MARK 08
T=2.25,MARK 08
T=2.30,MARK 09
T=2.30,MARK 09,T=2.30,MARK 09
T=2.35,MARK 10
T=2.35,MARK 10,T=2.35,MARK 10
T=2.40,MARK 11,T=2.40,MARK 11
T=2.40,MARK 11
T=2.45,MARK 12,T=2.45,MARK 12
T=2.45,MARK 12
T=2.50,MARK 13,T=2.50,MARK 13
T=2.50,MARK 13
T=2.55,MARK 14,T=2.55,MARK 14
T=2.55,MARK 14
T=2.60,MARK 15
T=2.60,MARK 15,T=2.60,MARK 15
T=2.65,MARK 16,T=2.65,MARK 16
T=2.65,MARK 16
T=2.70,MARK 17,T=2.70,MARK 17
T=2.70,MARK 17
T=2.75,MARK 18,T=2.75,MARK 18
T=2.75,MARK 18
T=2.80,MARK 19,T=2.80,MARK 19
T=2.80,MARK 19
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.90,MARK 01,T=1.90,MARK 01
T=1.95,MARK 02,T=1.95,MARK 02
T=2.00,MARK 03,T=2.00,MARK 03
T=2.05,MARK 04,T=2.05,MARK 04
T=2.10,MARK 05,T=2.10,MARK 05
T=2.15,MARK 06,T=2.15,MARK 06
T=2.20,MARK 07,T=2.20,MARK 07
T=2.25,MARK 08,T=2.25,MARK 08
T=2.30,MARK 09,T=2.30,MARK 09
T=2.35,MARK 10,T=2.35,MARK 10
T=2.40,MARK 11,T=2.40,MARK 11
T=2.40,MARK 11
T=2.45,MARK 12,T=2.45,MARK 12
T=2.50,MARK 13,T=2.50,MARK 13
T=2.55,MARK 14,T=2.55,MARK 14
T=2.60,MARK 15,T=2.60,MARK 15
T=2.65,MARK 16,T=2.65,MARK 16
T=2.70,MARK 17,T=2.70,MARK 17
T=2.75,MARK 18,T=2.75,MARK 18
T=2.80,MARK 19,T=2.80,MARK 19
T=1.90,MARK 01
T=1.90,MARK 01,T=1.90,MARK 01
T=1.95,MARK 02,T=1.95,MARK 02
T=1.95,MARK 02
T=2.00,MARK 03
T=2.00,MARK 03,T=2.00,MARK 03
T=2.05,MARK 04
T=2.05,MARK 04,T=2.05,MARK 04
T=2.10,MARK 05,T=2.10,MARK 05
T=2.10,MARK 05
T=2.15,MARK 06
T=2.15,MARK 06,T=2.15,MARK 06
T=2.20,MARK 07,T=2.20,MARK 07
T=2.20,MARK 07
T=2.25,MARK 08,T=2.25,MARK 08
T=2.25,MARK 08
T=2.30,MARK 09,T=2.30,MARK 09
T=2.30,MARK 09
T=2.35,MARK 10,T=2.35,MARK 10
T=2.35,MARK 10
T=2.40,MARK 11
T=2.40,MARK 11,T=2.40,MARK 11
T=2.45,MARK 12,T=2.45,MARK 12
T=2.45,MARK 12
T=2.50,MARK 13,T=2.50,MARK 13
T=2.50,MARK 13
T=2.55,MARK 14
T=2.55,MARK 14,T=2.55,MARK 14
T=2.60,MARK 15,T=2.60,MARK 15
T=2.60,MARK 15
T=2.65,MARK 16
T=2.65,MARK 16,T=2.65,MARK 16
T=2.70,MARK 17,T=2.70,MARK 17
T=2.70,MARK 17
T=2.75,MARK 18
T=2.75,MARK 18,T=2.75,MARK 18
T=2.80,MARK 19,T=2.80,MARK 19
T=2.80,MARK 19
T=1.0
41331FGEAR, FRONT DIFFERENTIAL SIDE
W(ANTI-LOCK BRAKE SYSTEM)
41341FPINION, FRONT DIFFERENTIAL
W(ANTI-LOCK BRAKE SYSTEM),FR
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95,MARK A
T=1.00,MARK B
T=1.05,MARK C
T=1.10,MARK D
T=1.15,MARK E
T=1.20,MARK F
T=1.25,MARK G
T=1.30,MARK H
T=1.35,MARK J
T=1.40,MARK K
T=1.00,MARK 02,T=1.00
T=1.00,MARK 02
T=1.10,MARK 03
T=1.10,MARK 03,T=1.10
T=1.20,MARK 04,T=1.20
T=1.20,MARK 04
T=0.95,MARK 14
T=0.95,MARK 14,T=0.95
T=1.05,MARK 15,T=1.05
T=1.05,MARK 15
T=1.15,MARK 16
T=1.15,MARK 16,T=1.15
T=0.80,MARK FA
T=0.90,MARK FB
T=1.00,MARK FC
T=1.10,MARK FD
T=1.20,MARK FE
T=1.30,MARK FF
T=1.40,MARK FG
24 parts on this diagram · 6 diagrams in section
