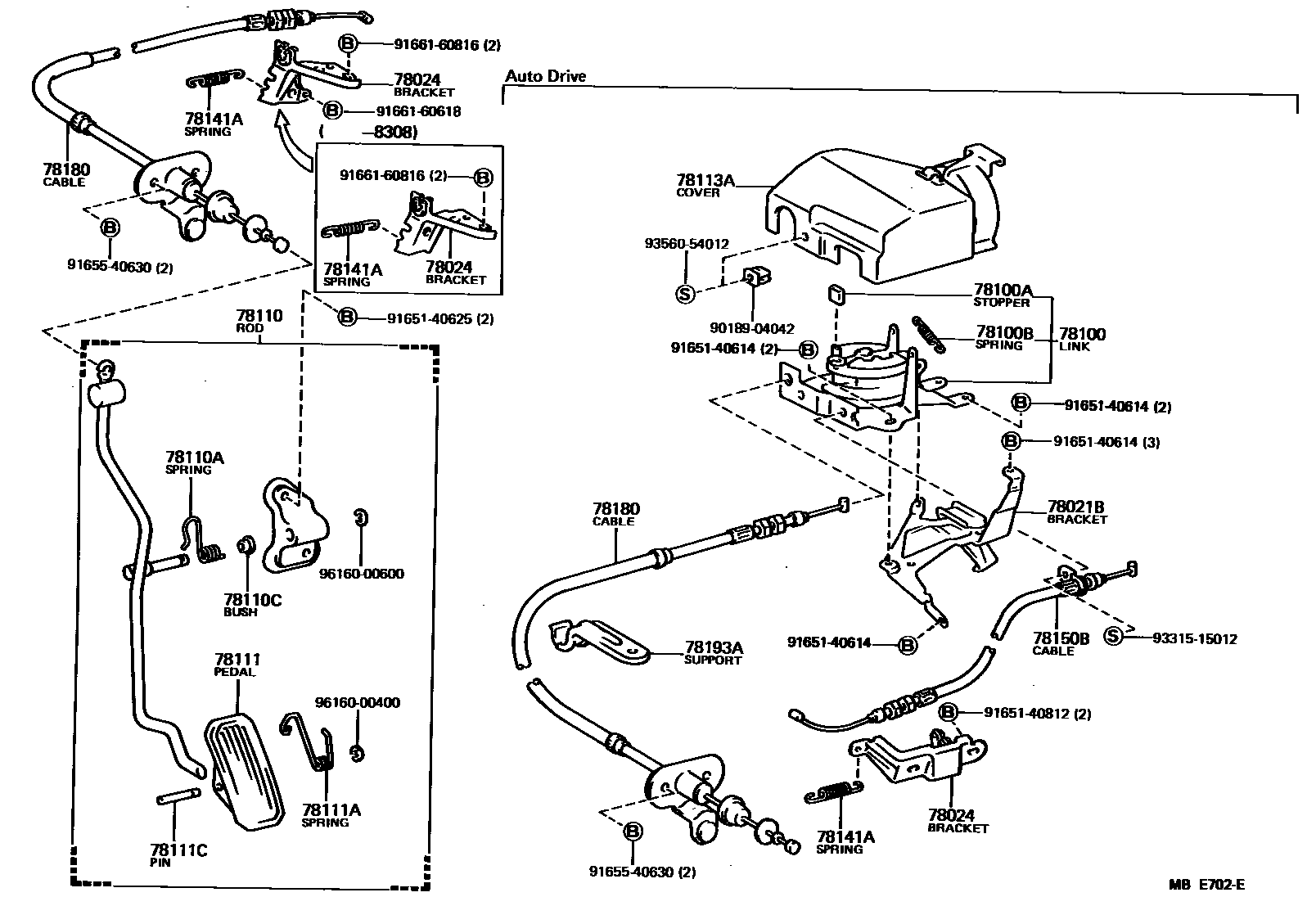

ACCELERATOR LINK

0001 1 0002 1

78021BBRACKET SUB-ASSY, ACCEL CONTROL BELLCRANK

main78021-32010iCV10,SV11198301-198405

main78021-32020iCV1#,SV11198405-198607

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-32020iSV11198301-198607

W/AUTO DRIVE

main78024-32030iSV11198301-198308

W/O AUTO DRIVE

main78024-32031iSV11198308-198607

W/O AUTO DRIVE

main78024-32050iCV1#198308-198607

W/O AUTO DRIVE

78100LINK ASSY, ACCELERATOR

main78100-12080iSV11198601-198607

main78100-32020iSV11198301-198601

main78100-32030iCV1#198308-198607

78100ASTOPPER, ACCELERATOR LINK

main78118-12010iSV11198301-198607

78100BSPRING (FOR ACCELERATOR LINK)

main90506-08019iCV1#,SV11198301-198607

78110ROD ASSY, ACCELERATOR PEDAL

main78120-32020iCV1#,SV11..4FC198301-198607

W/AUTO DRIVE

main78120-32050iCV10,SV11..5F198301-198607

W/O AUTO DRIVE

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iCV1#,SV11..4FC198301-198607

W/AUTO DRIVE

main90508-23069iCV10,SV11..5F198301-198607

W/O AUTO DRIVE

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-12023iCV1#,SV11198305-198607

78111PEDAL, ACCELERATOR

main78111-32010iCV1#,SV11198301-198607

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18046iCV1#,SV11198301-198607

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iCV1#,SV11198301-198607

78113ACOVER, AUTO DRIVE ACCELERATOR LINK

main78113-12110iSV11198601-198607

main78113-32020iSV11198301-198601

main78113-32030iCV1#198308-198607

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90506-12041iSV11..5F198301-198307

sub90507-11002

main90507-10008iSV11..4FC198301-198307

sub90507-11002

main90507-11002iSV11198307-198607

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-32020iSV11198301-198607

main78150-32030iCV1#198308-198607

78180WIRE ASSY, ACCELERATOR

main78180-32050iSV11198301-198607

W/AUTO DRIVE

main78180-32070iSV11198301-198405

W/O AUTO DRIVE

sub78180-32090

main78180-32090iSV11198405-198607

W/O AUTO DRIVE

main78180-32110iCV1#198308-198607

W/O AUTO DRIVE

main78180-32120iCV1#198308-198607

W/AUTO DRIVE

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-32020iSV11198301-198607

main78193-32030iCV1#198308-198607

9018904042

main90189-04042

9165140614

main91651-40614

9165140625

main91651-40625

9165140812

main91651-40812

9165540630

main91655-40630

9166160618

main91661-60618

9166160816

main91661-60816

9331515012

main93315-15012

9356054012

main93560-54012

9616000400

main96160-00400

9616000600

main96160-00600

27 parts on this diagram · 2 diagrams in section
