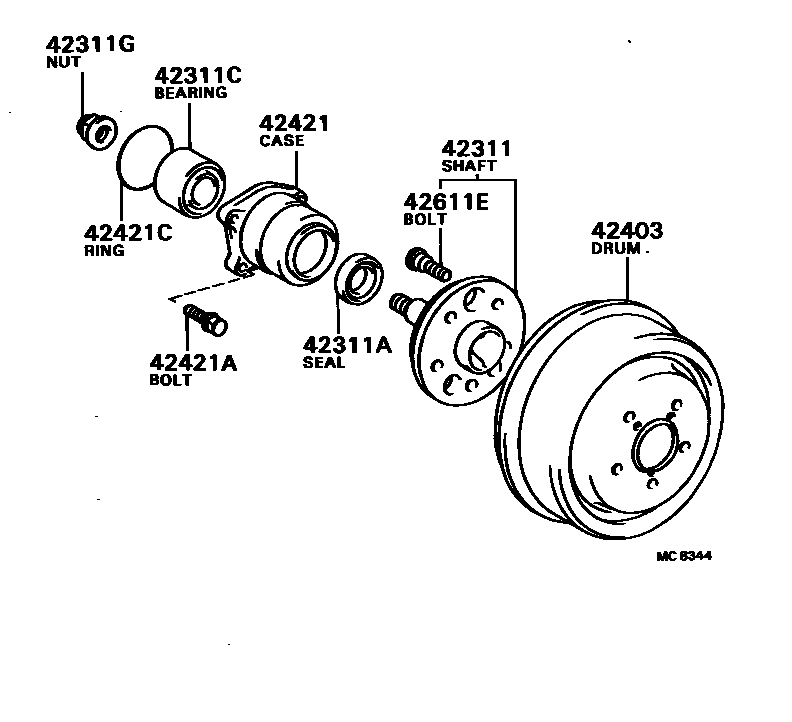

REAR AXLE SHAFT & HUB

42311SHAFT, REAR AXLE

main42301-32010×2iCV1#,SV11198301-198607

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42006×2iCV1#,SV11198301-198511

main90311-42018×2iCV11,SV11198511-198607

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30043×2iCV10,SV11198301-198504

main90369-30044×2iCV1#,SV11198504-198607

42311GNUT(FOR REAR AXLE SHAFT)

main90179-20003×2iCV1#,SV11198301-198607

42403DRUM SUB-ASSY, REAR BRAKE

main42431-32010×2iCV1#,SV11198301-198607

42421CASE, REAR AXLE BEARING

main42421-20020×2iCV1#,SV11198301-198607

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10006×8iCV10,SV11198301-198406

main90105-10120×8iCV1#,SV11198406-198607

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003×2iCV1#,SV11198301-198607

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×10iCV1#,SV11198301-198607

9 parts on this diagram · 1 diagram in section
