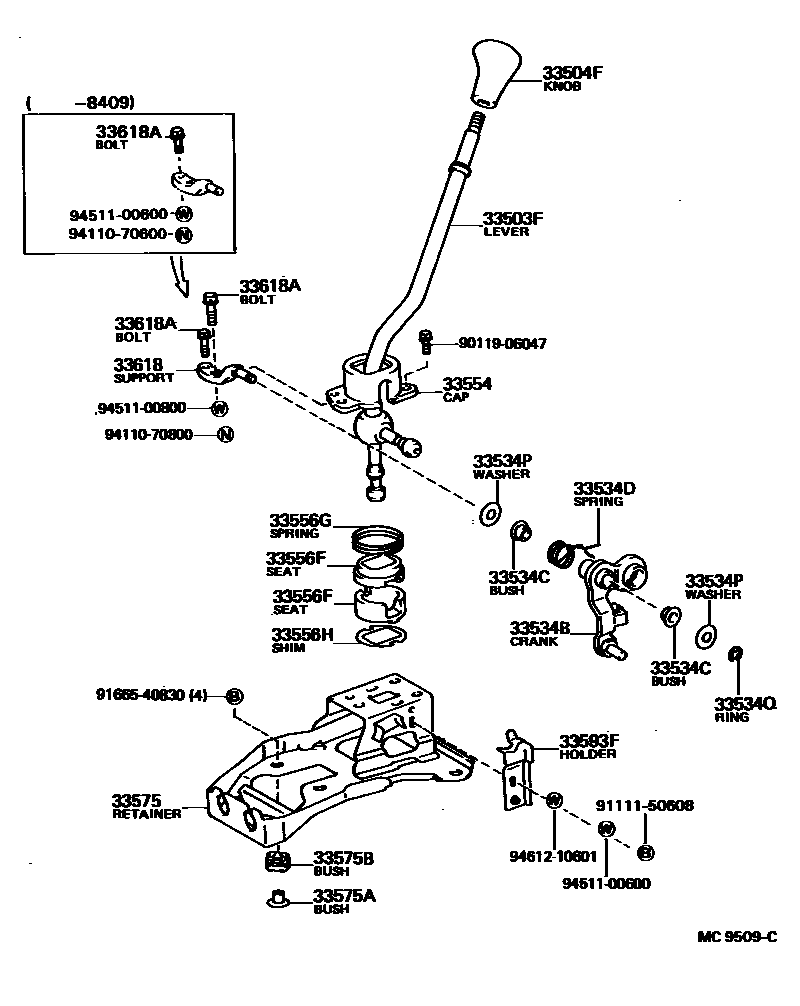

SHIFT LEVER & RETAINER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
33534CBUSH (FOR SELECTING BELLCRANK NO.1)
33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)
33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)
33534QRING, E (FOR SELECTING BELLCRANK NO.1)
33554CAP, SHIFT LEVER
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
LWR
UPR
33556GSPRING (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
33556HSHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
T=0.5,MARK C 0R 5,T=0.5
T=0.6,MARK D 0R 6,T=0.6
T=0.7,MARK E 0R 7,T=0.7
T=0.8,MARK F 0R 8,T=0.8
T=0.9,MARK G 0R 9,T=0.9
T=1.0,MARK H 0R 10,T=1.0
T=1.1,MARK K 0R 11,T=1.1
T=1.2,MARK L 0R 12,T=1.2
33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)
33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)
33593FHOLDER, SPRING (FOR FLOOR SHIFT)
33618SUPPORT, SELECTING BELLCRANK, NO.1
sub33618-12040
33618ABOLT (FOR SELECTING BELLCRANK SUPPORT)
*6-1.00PX25-10
*8-1.25PX28-13,*8-1.25PX28-13
*6-1.00PX24-20,*6-1.00PX24-20
9011906047
main90119-06047
9111150608
main91111-50608
9166548830
main91665-48830
9411070600
main94110-70600
9411070800
main94110-70800
9451100600
main94511-00600
9451100800
main94511-00800
9461210601
main94612-10601
25 parts on this diagram · 5 diagrams in section
