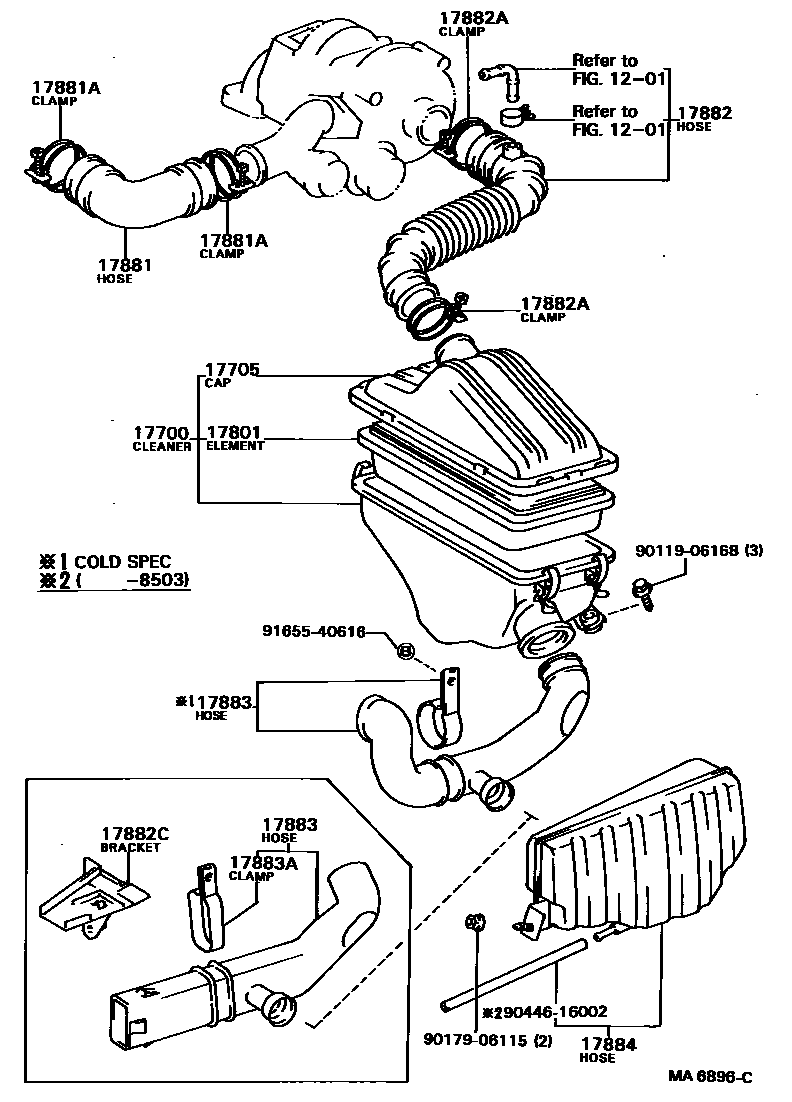

AIR CLEANER

0001 1 0002 1

1201

17700CLEANER ASSY, AIR

main17700-64100i1CTLC,2CTLC..CV1#198308-198607

main17700-64140i1CTLC..CV10198410-198411

sub17700-64100

main17700-74010i2SELC..SV11198301-198607

17705CAP SUB-ASSY, AIR CLEANER

main17705-64030i1CTLC,2CTLC..CV1#198308-198607

main17705-74010i2SELC..SV11198301-198607

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64040i1CTLC..CV10198308-198607

main17801-64050i1CTLC..CV10198410-198411

sub17801-64040

main17801-74010i2SELC..SV11198301-198607

sub17801-55010

17881HOSE, AIR CLEANER, NO.1

main17341-64020i1CTLC,2CTLC..CV1#198308-198607

main17881-74010i2SELC..SV11198301-198607

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-70001i1CTLC,2CTLC..CV1#198308-198607

sub90467-56001

main96111-10710i2SELC..SV11198301-198607

17882HOSE, AIR CLEANER, NO.2

main17880-64040i1CTLC,2CTLC..CV1#198308-198607

main17882-74010i2SELC..SV11198301-198607

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-75001i1CTLC,2CTLC..CV1#198308-198607

TURBO SIDE

main96111-10670i1CTLC,2CTLC..CV1#198308-198607

AIR CLEANER SIDE

main96111-10710i2SELC..SV11198301-198607

PIPE SIDE

main96111-10800i2SELC..SV11198301-198607

AIR FLOW METER SIDE

17882CBRACKET(FOR COOL AIR INTAKE)

main53849-32010i1CTLC..CV10198308-198508

sub53849-32020

main53849-32020i2CTLC..CV11198508-198607

17883HOSE, AIR CLEANER, NO.3

main17882-32020i2SELC..SV11198301-198408

main17882-32030i1CTLC..CV10198308-198408

COLD SPEC

main17882-32040i1CTLC..CV10198308-198408

main17882-32060i1CTLC,2CTLC..CV1#198410-198607

sub17882-32080

main17882-32070i1CTLC,2CTLC..CV1#198410-198607

COLD SPEC

main17882-32080i2SELC..SV11198408-198607

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-01028i1CTLC,2CTLC..CV1#198301-198607

17884HOSE, AIR CLEANER, NO.4

main17883-32020i2SELC..SV11198301-198408

main17883-32030i2SELC..SV11198408-198607

9011906168

main90119-06168

9017906115

main90179-06115

9044616002

main90446-16002

9165540616

main91655-40616

16 parts on this diagram · 2 diagrams in section
