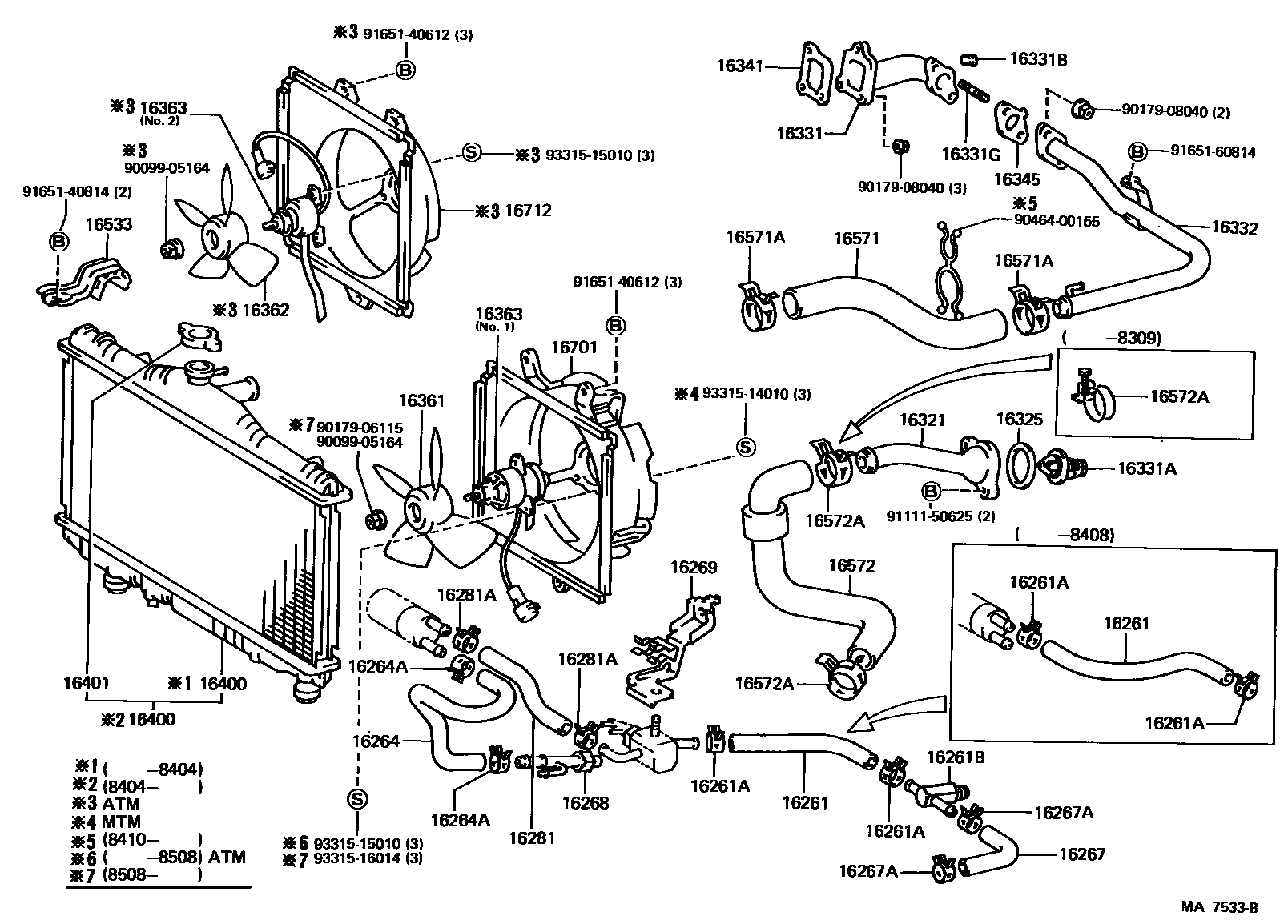

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16261HOSE, WATER BY-PASS

main16261-63010i2SELC..SV11198301-198607

main16261-64060i1CTLC..CV10198308-198408

main16261-64070i1CTLC,2CTLC..CV1#198410-198607

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15004i1CTLC,2CTLC..CV1#198308-198607

main90467-21001i2SELC..SV11198508-198607

sub90467-21006

main96111-10250i2SELC..SV11198301-198308

sub96112-10250

main96112-10250i2SELC..SV11198308-198508

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-53050i1CTLC,2CTLC..CV1#198308-198607

16264HOSE, WATER BY-PASS, NO.2

main16264-64050i1CTLC..CV10198308-198505

main16264-64060i1CTLC,2CTLC..CV1#198505-198607

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15004i1CTLC,2CTLC..CV1#198308-198607

16267HOSE, WATER BY-PASS, NO.3

main16267-64010i1CTLC,2CTLC..CV1#198308-198607

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-11009i1CTLC,2CTLC..CV1#198308-198607

sub96135-51100

16268PIPE, WATER BY-PASS, NO.1

main16268-64020i1CTLC..CV10198308-198505

main16268-64040i1CTLC,2CTLC..CV1#198505-198607

16269SUPPORT, WATER BY-PASS PIPE

main16269-64010i1CTLC,2CTLC..CV1#198410-198607

16281HOSE, WATER BY-PASS, NO.4

main16281-64010i1CTLC,2CTLC..CV1#198410-198607

16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

main90467-15004i1CTLC,2CTLC..CV1#198410-198607

16321INLET, WATER

main16321-64020i1CTLC,2CTLC..CV1#198308-198607

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1CTLC,2CTLC..CV1#198301-198607

sub16325-63011

16331OUTLET, WATER

main16331-63080i2SELC..SV11..5F198301-198607

main16331-63090i2SELC..SV11..4FC198301-198607

main16331-64030i1CTLC,2CTLC..CV1#198308-198607

16331ATHERMOSTAT

main90916-03046i1CTLC,2CTLC..CV1#198301-198607

*WAX 82-95,*WAX 82-95

16331BPLUG(FOR WATER OUTLET)

main90344-53011i2SELC..SV11..CND198308-198607

16331GBOLT, STUD(FOR WATER INLET)

main92122-60816i1CTLC,2CTLC..CV1#198308-198607

16332PIPE, WATER OUTLET, NO.1

main16332-64010i1CTLC,2CTLC..CV1#198308-198607

16341GASKET, WATER OUTLET

main16341-63010i2SELC..SV11198301-198607

sub16341-63011

main16341-64010i1CTLC,2CTLC..CV1#198308-198607

sub16341-64020

16345GASKET, WATER OUTLET PIPE

main16345-64020i1CTLC,2CTLC..CV1#198308-198607

sub16345-64040

16361FAN

main16361-63020i2SELC..SV11..4FC198301-198607

sub16361-74070

main16361-63030i2SELC..SV11..5F198301-198408

main16361-63040i2SELC..SV11..5F198408-198607

main16361-64020i1CTLC..CV10198308-198408

main16361-64030i1CTLC..CV10198410-198508

main16361-64031i2CTLC..CV11198508-198607

16362FAN, NO.2

main16361-64040i1CTLC,2CTLC..CV1#198410-198607

16363MOTOR, COOLING FAN

main16363-16030i2SELC..SV11..5F198408-198607

main16363-63020i2SELC..SV11..5F198301-198408

sub16363-15090

main16363-63030i2SELC..SV11..4FC198301-198408

sub16363-64030

main16363-64020i1CTLC,2CTLC..CV1#198410-198607

NO.2

main16363-64030i2SELC..SV11..4FC198408-198607

main16363-64040i1CTLC..CV10198410-198508

NO.1

main16363-64050i2CTLC..CV11198508-198607

NO.1

16400RADIATOR ASSY

main16400-63030i2SELC..SV11..5F198301-198408

sub16400-63040

main16400-63040i2SELC..SV11..4FC198301-198607

main16400-63120i2SELC..SV11..5F198408-198607

sub16400-63040

main16400-64110i1CTLC..CV10198404-198408

sub16400-64120

main16400-64190i1CTLC..CV10198410-198508

sub16400-64191

main16400-64191i2CTLC..CV11198508-198607

main16410-63030i2SELC..SV11..5F198308-198404

sub16400-63030

main16410-63040i2SELC..SV11..4FC198308-198404

sub16400-63040

main16410-63090i2SELC..SV11..5F..CND198305-198308

sub16410-63030

main16410-63100i2SELC..SV11..4FC..CND198305-198308

sub16410-63040

main16410-64090i1CTLC..CV10198308-198404

sub16400-64110

16401CAP SUB-ASSY, RADIATOR

main16401-63010i2SELC..SV11198301-198607

16533SUPPORT, RADIATOR, UPPER

main16533-63040i2SELC..SV11198301-198405

sub16533-63070

main16533-63070i2SELC..SV11198405-198607

main16533-64020i1CTLC..CV10198308-198408

sub16533-64021

main16533-64040i1CTLC,2CTLC..CV1#198410-198607

sub16533-64070

16571HOSE, RADIATOR, INLET

main16571-63020i2SELC..SV11198301-198607

main16571-64070i1CTLC,2CTLC..CV1#198308-198607

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i1CTLC,2CTLC..CV1#198406-198607

sub90467-34003

main90467-34001i1CTLC..CV10198301-198406

sub90467-33003

16572HOSE, RADIATOR, OUTLET

main16572-63020i2SELC..SV11198301-198607

main16572-64060i1CTLC..CV10198308-198408

main16572-64090i1CTLC,2CTLC..CV1#198410-198607

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i1CTLC,2CTLC..CV1#198406-198607

RADIATOR SIDE

sub90467-34003

main90467-34001i2SELC..SV11198301-198406

sub90467-33003

main90467-34002i1CTLC..CV10198308-198406

RADIATOR SIDE

sub90467-34003

main90467-37001i1CTLC,2CTLC..CV1#198309-198607

INLET SIDE

sub90467-37003

main96111-10450i1CTLC..CV10198308-198309

INLET SIDE

16701SHROUD SUB-ASSY, FAN

main16711-63030i2SELC..SV11..4FC198301-198607

main16711-63050i2SELC..SV11..5F198301-198408

main16711-63080i2SELC..SV11..5F198408-198607

main16711-64070i1CTLC..CV10198308-198408

main16711-64090i1CTLC..CV10198410-198508

main16711-64091i2CTLC..CV11198508-198607

16712SHROUD, FAN, NO.2

main16712-64030i1CTLC,2CTLC..CV1#198410-198607

9009905164

main90099-05164

9017906115

main90179-06115

9017908040

main90179-08040

9046400155

main90464-00155

9111150625

main91111-50625

9165140612

main91651-40612

9165140814

main91651-40814

9165160814

main91651-60814

9331514010

main93315-14010

9331515010

main93315-15010

9331516014

main93315-16014

43 parts on this diagram · 4 diagrams in section
