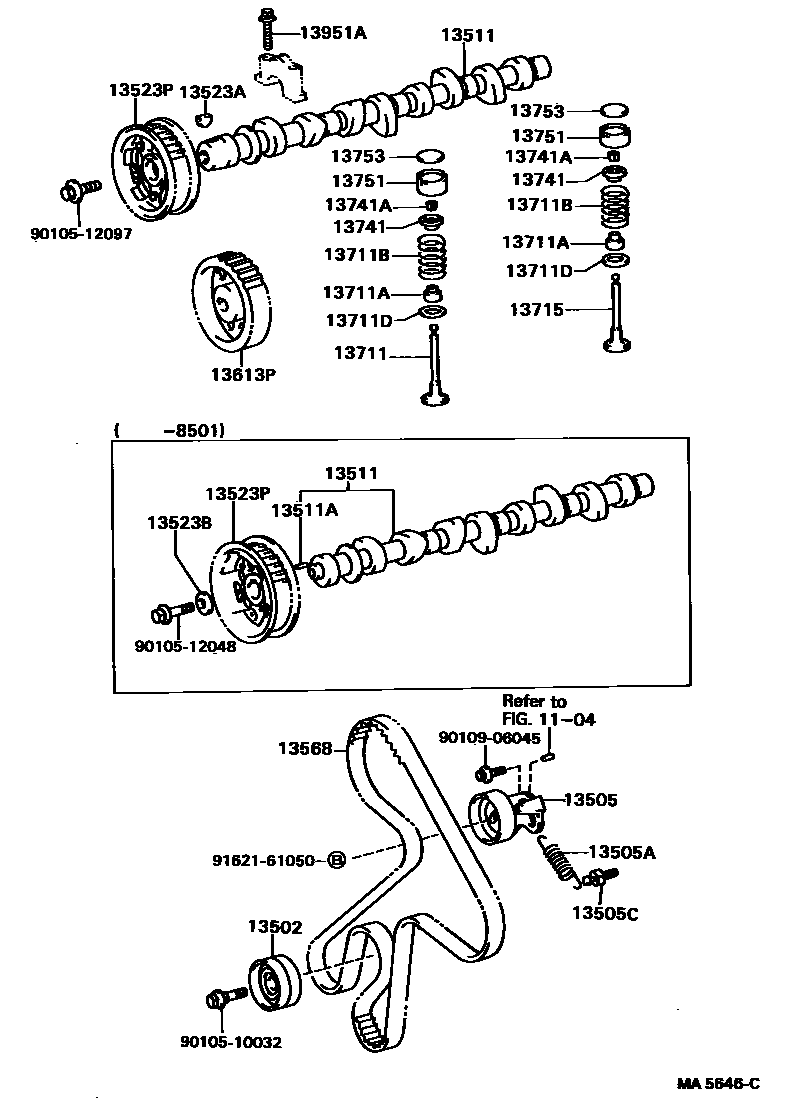

CAMSHAFT & VALVE
1104
13505ASPRING, TENSION(FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523BWASHER, PLATE(FOR TIMING GEAR)
13711VALVE, INTAKE
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.20,T=2.20
T=2.25,T=2.25
T=2.30,T=2.30
T=2.35,T=2.35
T=2.40,T=2.40
T=2.45,T=2.45
T=2.50,T=2.50
T=2.55,T=2.55
T=2.60,T=2.60
T=2.65,T=2.65
T=2.70,T=2.70
T=2.75,T=2.75
T=2.80,T=2.80
T=2.85,T=2.85
T=2.90,T=2.90
T=2.95,T=2.95
T=3.00,T=3.00
T=3.05,T=3.05
T=3.10,T=3.10
T=3.15,T=3.15
T=3.20,T=3.20
T=3.25,T=3.25
T=3.30,T=3.30
T=3.35,T=3.35
T=3.40,T=3.40
9010510032
main90105-10032
9010512048
main90105-12048
9010512097
main90105-12097
9010906045
main90109-06045
9162161050
main91621-61050
27 parts on this diagram · 2 diagrams in section
