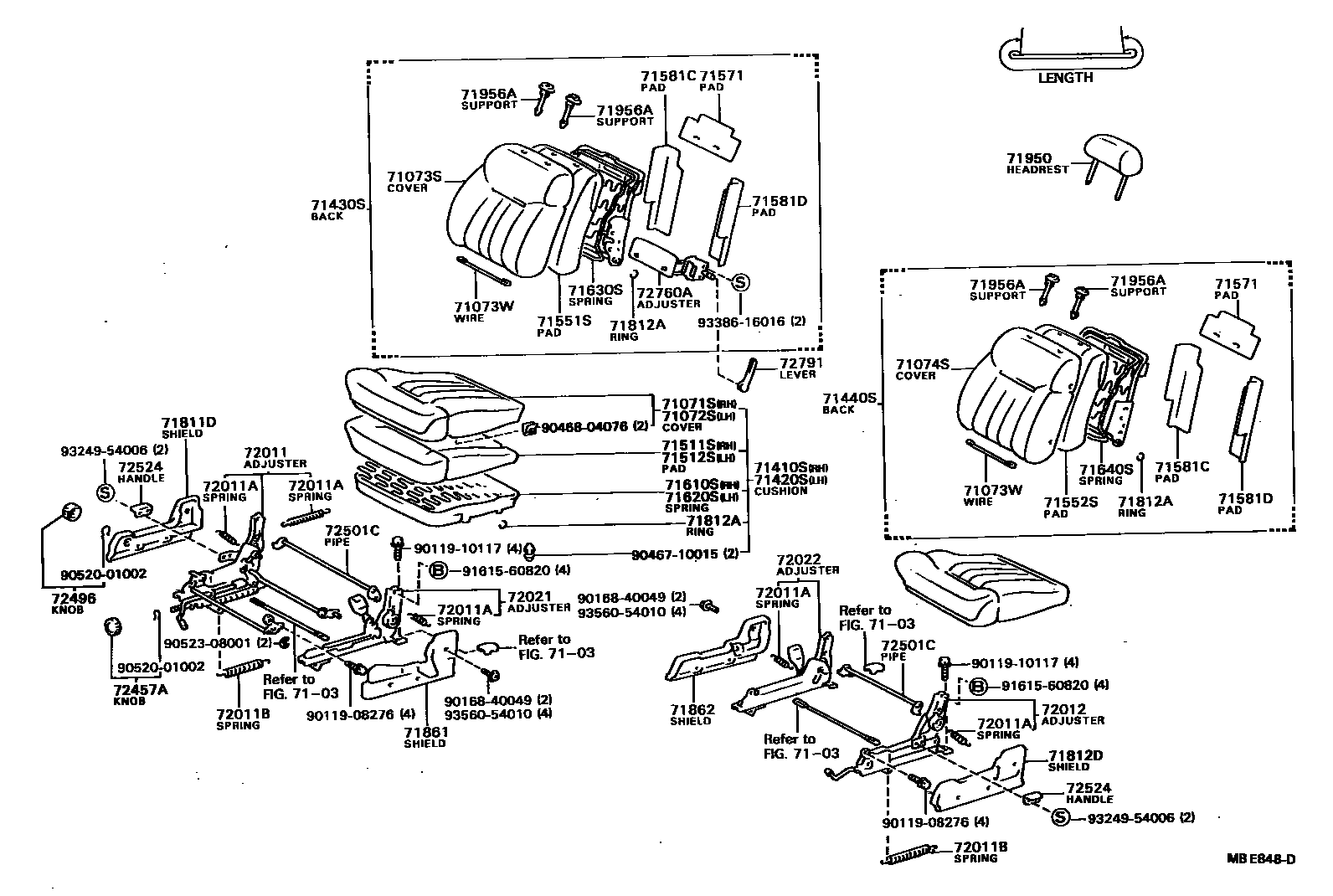

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1

7103

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-32080-03iSV1#..RHD198210-198308

FB,GRAY,GRAY,TRIM1#

main71071-32080-04iSV1#..RHD198210-198308

FB,BLUE,BLUE,TRIM8#

main71071-32080-06iSV1#..RHD198210-198308

FB,BROWN,BROWN,TRIM4#

main71071-32120-03iCV10,SV1#..RHD198308-198406

FB,GRAY,GRAY,TRIM1#

main71071-32120-04iCV10,SV1#..RHD198308-198406

FB,BLUE,BLUE,TRIM8#

main71071-32120-05iCV10,SV1#..RHD198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71071-32230-03iCV10,SV1#..RHD198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71071-32230-04iCV10,SV1#..RHD198406-198508

FB,BLUE,BLUE,TRIM8#

main71071-32230-05iCV10,SV1#..RHD198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71071-32231-03iCV11,SV1#..RHD198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub71071-32212

main71071-32231-04iCV11,SV1#..RHD198508-198610

FB,BLUE,BLUE,TRIM8#

sub71071-32212

main71071-32231-05iCV11,SV1#..RHD198508-198610

FB,BEIGE,BEIGE,TRIM4#

sub71071-32212

main71071-32250-03iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71071-32250-04iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71071-32250-05iSV11..SDZ198408-198508

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71071-32251-03iSV11..SDZ198508-198511

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71071-32251-04iSV11..SDZ198508-198511

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71071-32251-05iSV11..SDZ198508-198511

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71071-32252-03iSV11..SDZ198511-198610

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71071-32252-04iSV11..SDZ198511-198610

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71071-32252-05iSV11..SDZ198511-198610

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71072-32020-03iSV10..DLX198210-198308

FB,GRAY,GRAY,TRIM1#

sub71072-32050

main71072-32020-04iSV10..DLX198210-198308

FB,BLUE,BLUE,TRIM8#

sub71072-32050

main71072-32020-05iSV10..DLX198210-198308

FB,BEIGE,BEIGE,TRIM4#

sub71072-32050

main71072-32070-03iSV1#..LHD..(GL,GLI)198210-198308

FB,GRAY,GRAY,TRIM1#

main71072-32070-04iSV1#..LHD..(GL,GLI)198210-198308

FB,BLUE,BLUE,TRIM8#

main71072-32070-06iSV1#..LHD..(GL,GLI)198210-198308

FB,BROWN,BROWN,TRIM4#

main71072-32110-03iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,GRAY,GRAY,TRIM1#

main71072-32110-04iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,BLUE,BLUE,TRIM8#

main71072-32110-05iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71072-32120-03iCV10,SV10..DLX198308-198406

FB,GRAY,GRAY,TRIM1#

sub71072-32051

main71072-32120-04iCV10,SV10..DLX198308-198406

FB,BLUE,BLUE,TRIM8#

sub71072-32051

main71072-32120-05iCV10,SV10..DLX198308-198406

FB,BEIGE,BEIGE,TRIM4#

sub71072-32051

main71072-32140-03iCV1#,SV10..DLX198406-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71072-32140-04iCV1#,SV10..DLX198406-198610

FB,BLUE,BLUE,TRIM8#

main71072-32140-05iCV1#,SV10..DLX198408-198610

FB,BEIGE,BEIGE,TRIM4#

main71072-32170-03iCV10,SV1#..LHD..(GL,GLI)198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71072-32170-04iCV10,SV1#..LHD..(GL,GLI)198406-198508

FB,BLUE,BLUE,TRIM8#

main71072-32170-05iCV10,SV1#..LHD..(GL,GLI)198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71072-32220-03iCV11,SV1#..LHD..(GL,GLI)198508-198511

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub71071-32212

main71072-32220-04iCV11,SV1#..LHD..(GL,GLI)198508-198511

FB,BLUE,BLUE,TRIM8#

sub71071-32212

main71072-32220-05iCV11,SV1#..LHD..(GL,GLI)198508-198511

FB,BEIGE,BEIGE,TRIM4#

sub71071-32212

main71072-32250-03iCV11,SV1#..LHD..(GL,GLI)198511-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub71071-32212

main71072-32250-04iCV11,SV1#..LHD..(GL,GLI)198511-198610

FB,BLUE,BLUE,TRIM8#

sub71071-32212

main71072-32250-05iCV11,SV1#..LHD..(GL,GLI)198511-198610

FB,BEIGE,BEIGE,TRIM4#

sub71071-32212

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-32020-03iSV10..DLX198210-198308

FB,GRAY,GRAY,TRIM1#

sub71071-32060

main71071-32020-04iSV10..DLX198210-198308

FB,BLUE,BLUE,TRIM8#

sub71071-32060

main71071-32020-05iSV10..DLX198210-198308

FB,BEIGE,BEIGE,TRIM4#

sub71071-32060

main71071-32080-03iSV1#..LHD..(GL,GLI)198210-198308

FB,GRAY,GRAY,TRIM1#

main71071-32080-04iSV1#..LHD..(GL,GLI)198210-198308

FB,BLUE,BLUE,TRIM8#

main71071-32080-06iSV1#..LHD..(GL,GLI)198210-198308

FB,BROWN,BROWN,TRIM4#

main71071-32120-03iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,GRAY,GRAY,TRIM1#

main71071-32120-04iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,BLUE,BLUE,TRIM8#

main71071-32120-05iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71071-32130-03iCV10,SV10..DLX198308-198406

FB,GRAY,GRAY,TRIM1#

sub71071-32061

main71071-32130-04iCV10,SV10..DLX198308-198406

FB,BLUE,BLUE,TRIM8#

sub71071-32061

main71071-32130-05iCV10,SV10..DLX198308-198406

FB,BEIGE,BEIGE,TRIM4#

sub71071-32061

main71071-32220-03iCV1#,SV10..DLX198406-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71071-32220-04iCV1#,SV10..DLX198406-198610

FB,BLUE,BLUE,TRIM8#

main71071-32220-05iCV1#,SV10..DLX198408-198610

FB,BEIGE,BEIGE,TRIM4#

main71071-32230-03iCV10,SV1#..LHD..(GL,GLI)198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71071-32230-04iCV10,SV1#..LHD..(GL,GLI)198406-198508

FB,BLUE,BLUE,TRIM8#

main71071-32230-05iCV10,SV1#..LHD..(GL,GLI)198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71071-32231-03iCV11,SV1#..LHD..(GL,GLI)198508-198511

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub71071-32212

main71071-32231-04iCV11,SV1#..LHD..(GL,GLI)198508-198511

FB,BLUE,BLUE,TRIM8#

sub71071-32212

main71071-32231-05iCV11,SV1#..LHD..(GL,GLI)198508-198511

FB,BEIGE,BEIGE,TRIM4#

sub71071-32212

main71071-32240-03iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71071-32240-04iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71071-32240-05iSV11..SDZ198408-198508

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71071-32241-03iSV11..SDZ198508-198511

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71071-32241-04iSV11..SDZ198508-198511

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71071-32241-05iSV11..SDZ198508-198511

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71071-32242-03iSV11..SDZ198511-198610

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71071-32242-04iSV11..SDZ198511-198610

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71071-32242-05iSV11..SDZ198511-198610

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71071-32290-03iCV11,SV1#..LHD..(GL,GLI)198511-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub71071-32212

main71071-32290-04iCV11,SV1#..LHD..(GL,GLI)198511-198610

FB,BLUE,BLUE,TRIM8#

sub71071-32212

main71071-32290-05iCV11,SV1#..LHD..(GL,GLI)198511-198610

FB,BEIGE,BEIGE,TRIM4#

sub71071-32212

main71072-32070-03iSV1#..RHD198210-198308

FB,GRAY,GRAY,TRIM1#

main71072-32070-04iSV1#..RHD198210-198308

FB,BLUE,BLUE,TRIM8#

main71072-32070-06iSV1#..RHD198210-198308

FB,BROWN,BROWN,TRIM4#

main71072-32110-03iCV10,SV1#..RHD198308-198406

FB,GRAY,GRAY,TRIM1#

main71072-32110-04iCV10,SV1#..RHD198308-198406

FB,BLUE,BLUE,TRIM8#

main71072-32110-05iCV10,SV1#..RHD198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71072-32170-03iCV10,SV1#..RHD198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71072-32170-04iCV10,SV1#..RHD198406-198508

FB,BLUE,BLUE,TRIM8#

main71072-32170-05iCV10,SV1#..RHD198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71072-32220-03iCV11,SV1#..RHD198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub71071-32212

main71072-32220-04iCV11,SV1#..RHD198508-198610

FB,BLUE,BLUE,TRIM8#

sub71071-32212

main71072-32220-05iCV11,SV1#..RHD198508-198610

FB,BEIGE,BEIGE,TRIM4#

sub71071-32212

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-32020-03iSV10..DLX198210-198308

FB,GRAY,GRAY,TRIM1#

main71073-32020-04iSV10..DLX198210-198308

FB,BLUE,BLUE,TRIM8#

main71073-32020-05iSV10..DLX198210-198308

FB,BEIGE,BEIGE,TRIM4#

main71073-32080-03iSV1#..GL,GLI198210-198308

FB,GRAY,GRAY,TRIM1#

main71073-32080-04iSV1#..GL,GLI198210-198308

FB,BLUE,BLUE,TRIM8#

main71073-32080-06iSV1#..GL,GLI198210-198308

FB,BROWN,BROWN,TRIM4#

main71073-32130-03iCV10,SV10..DLX198308-198406

FB,GRAY,GRAY,TRIM1#

main71073-32130-04iCV10,SV10..DLX198308-198406

FB,BLUE,BLUE,TRIM8#

main71073-32130-05iCV10,SV10..DLX198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71073-32150-03iCV1#,SV10..DLX198406-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32150-04iCV1#,SV10..DLX198406-198610

FB,BLUE,BLUE,TRIM8#

main71073-32150-05iCV1#,SV10..DLX198408-198610

FB,BEIGE,BEIGE,TRIM4#

main71073-32180-03iCV10,SV1#..GL,GLI198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32180-04iCV10,SV1#..GL,GLI198406-198508

FB,BLUE,BLUE,TRIM8#

main71073-32180-05iCV10,SV1#..GL,GLI198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71073-32220-03iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32220-04iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71073-32220-05iSV11..SDZ198408-198508

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71073-32221-03iSV11..SDZ198508-198610

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32221-04iSV11..SDZ198508-198610

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71073-32221-05iSV11..SDZ198508-198610

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71073-32240-03iCV11,SV1#..GL,GLI198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32240-04iCV11,SV1#..GL,GLI198508-198610

FB,BLUE,BLUE,TRIM8#

main71073-32240-05iCV11,SV1#..GL,GLI198508-198610

FB,BEIGE,BEIGE,TRIM4#

main71074-32030-03iCV10,SV1#..GL,GLI198308-198406

FB,GRAY,GRAY,TRIM1#

main71074-32030-04iCV10,SV1#..GL,GLI198308-198406

FB,BLUE,BLUE,TRIM8#

main71074-32030-05iCV10,SV1#..GL,GLI198308-198406

FB,BEIGE,BEIGE,TRIM4#

71073WWIRE, FRONT SEATBACK COVER

main90580-20127×4iCV1#,SV1#198210-198610

WD=2.0,L=460

main90580-29011×2iCV1#,SV10..DLX198406-198610

WD=2.9,L=330

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-32020-03iSV10..DLX198210-198308

FB,GRAY,GRAY,TRIM1#

main71073-32020-04iSV10..DLX198210-198308

FB,BLUE,BLUE,TRIM8#

main71073-32020-05iSV10..DLX198210-198308

FB,BEIGE,BEIGE,TRIM4#

main71073-32080-03iSV1#..GL,GLI198210-198308

FB,GRAY,GRAY,TRIM1#

main71073-32080-04iSV1#..GL,GLI198210-198308

FB,BLUE,BLUE,TRIM8#

main71073-32080-06iSV1#..GL,GLI198210-198308

FB,BROWN,BROWN,TRIM4#

main71073-32130-03iCV10,SV10..DLX198308-198406

FB,GRAY,GRAY,TRIM1#

main71073-32130-04iCV10,SV10..DLX198308-198406

FB,BLUE,BLUE,TRIM8#

main71073-32130-05iCV10,SV10..DLX198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71073-32150-03iCV1#,SV10..DLX198406-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32150-04iCV1#,SV10..DLX198406-198610

FB,BLUE,BLUE,TRIM8#

main71073-32150-05iCV1#,SV10..DLX198408-198610

FB,BEIGE,BEIGE,TRIM4#

main71073-32180-03iCV10,SV1#..GL,GLI198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32180-04iCV10,SV1#..GL,GLI198406-198508

FB,BLUE,BLUE,TRIM8#

main71073-32180-05iCV10,SV1#..GL,GLI198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71073-32221-03iSV11..SDZ198508-198610

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32221-04iSV11..SDZ198508-198610

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71073-32221-05iSV11..SDZ198508-198610

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71073-32240-03iCV11,SV1#..GL,GLI198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-32240-04iCV11,SV1#..GL,GLI198508-198610

FB,BLUE,BLUE,TRIM8#

main71073-32240-05iCV11,SV1#..GL,GLI198508-198610

FB,BEIGE,BEIGE,TRIM4#

main71074-32030-03iCV10,SV1#..GL,GLI198308-198406

FB,GRAY,GRAY,TRIM1#

main71074-32030-04iCV10,SV1#..GL,GLI198308-198406

FB,BLUE,BLUE,TRIM8#

main71074-32030-05iCV10,SV1#..GL,GLI198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71074-32060-03iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub71073-32060

main71074-32060-04iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

sub71073-32060

main71074-32060-05iSV11..SDZ198408-198508

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

sub71073-32060

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-32100-03iSV1#..RHD198210-198308

FB,GRAY,GRAY,TRIM1#

main71410-32100-04iSV1#..RHD198210-198308

FB,BLUE,BLUE,TRIM8#

main71410-32100-06iSV1#..RHD198210-198308

FB,BROWN,BROWN,TRIM4#

main71410-32110-03iSV1#..LHD..(GL,GLI)198210-198308

FB,GRAY,GRAY,TRIM1#

main71410-32110-04iSV1#..LHD..(GL,GLI)198210-198308

FB,BLUE,BLUE,TRIM8#

main71410-32110-06iSV1#..LHD..(GL,GLI)198210-198308

FB,BROWN,BROWN,TRIM4#

main71410-32150-03iCV10,SV1#..RHD198308-198406

FB,GRAY,GRAY,TRIM1#

main71410-32150-04iCV10,SV1#..RHD198308-198406

FB,BLUE,BLUE,TRIM8#

main71410-32150-05iCV10,SV1#..RHD198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71410-32250-03iCV10,SV1#..RHD198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71410-32250-04iCV10,SV1#..RHD198406-198508

FB,BLUE,BLUE,TRIM8#

main71410-32250-05iCV10,SV1#..RHD198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71410-32251-03iCV11,SV1#..RHD198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71410-32251-04iCV11,SV1#..RHD198508-198610

FB,BLUE,BLUE,TRIM8#

main71410-32251-05iCV11,SV1#..RHD198508-198610

FB,BEIGE,BEIGE,TRIM4#

main71410-32260-03iCV10,SV1#..LHD..(GL,GLI)198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71410-32260-04iCV10,SV1#..LHD..(GL,GLI)198406-198508

FB,BLUE,BLUE,TRIM8#

main71410-32260-05iCV10,SV1#..LHD..(GL,GLI)198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71410-32261-03iCV11,SV1#..LHD..(GL,GLI)198508-198511

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71410-32261-04iCV11,SV1#..LHD..(GL,GLI)198508-198511

FB,BLUE,BLUE,TRIM8#

main71410-32261-05iCV11,SV1#..LHD..(GL,GLI)198508-198511

FB,BEIGE,BEIGE,TRIM4#

main71410-32270-03iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71410-32270-04iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71410-32270-05iSV11..SDZ198408-198508

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71410-32271-03iSV11..SDZ198508-198511

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71410-32271-04iSV11..SDZ198508-198511

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71410-32271-05iSV11..SDZ198508-198511

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71410-32272-03iSV11..SDZ198511-198610

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71410-32272-04iSV11..SDZ198511-198610

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71410-32272-05iSV11..SDZ198511-198610

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71410-32290-03iCV11,SV1#..LHD..(GL,GLI)198511-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71410-32290-04iCV11,SV1#..LHD..(GL,GLI)198511-198610

FB,BLUE,BLUE,TRIM8#

main71410-32290-05iCV11,SV1#..LHD..(GL,GLI)198511-198610

FB,BEIGE,BEIGE,TRIM4#

main71420-32010-03iSV10..DLX198210-198308

FB,GRAY,GRAY,TRIM1#

main71420-32010-04iSV10..DLX198210-198308

FB,BLUE,BLUE,TRIM8#

main71420-32010-05iSV10..DLX198210-198308

FB,BEIGE,BEIGE,TRIM4#

main71420-32120-03iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,GRAY,GRAY,TRIM1#

main71420-32120-04iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,BLUE,BLUE,TRIM8#

main71420-32120-05iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71420-32130-03iCV10,SV10..DLX198308-198406

FB,GRAY,GRAY,TRIM1#

main71420-32130-04iCV10,SV10..DLX198308-198406

FB,BLUE,BLUE,TRIM8#

main71420-32130-05iCV10,SV10..DLX198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71420-32140-03iCV1#,SV10..DLX198406-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71420-32140-04iCV1#,SV10..DLX198406-198610

FB,BLUE,BLUE,TRIM8#

main71420-32140-05iCV1#,SV10..DLX198408-198610

FB,BEIGE,BEIGE,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71410-32020-03iSV10..DLX198210-198308

FB,GRAY,GRAY,TRIM1#

main71410-32020-04iSV10..DLX198210-198308

FB,BLUE,BLUE,TRIM8#

main71410-32020-05iSV10..DLX198210-198308

FB,BEIGE,BEIGE,TRIM4#

main71410-32100-03iSV1#..LHD..(GL,GLI)198210-198308

FB,GRAY,GRAY,TRIM1#

main71410-32100-04iSV1#..LHD..(GL,GLI)198210-198308

FB,BLUE,BLUE,TRIM8#

main71410-32100-06iSV1#..LHD..(GL,GLI)198210-198308

FB,BROWN,BROWN,TRIM4#

main71410-32110-03iSV1#..RHD198210-198308

FB,GRAY,GRAY,TRIM1#

main71410-32110-04iSV1#..RHD198210-198308

FB,BLUE,BLUE,TRIM8#

main71410-32110-06iSV1#..RHD198210-198308

FB,BROWN,BROWN,TRIM4#

main71410-32150-03iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,GRAY,GRAY,TRIM1#

main71410-32150-04iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,BLUE,BLUE,TRIM8#

main71410-32150-05iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71410-32160-03iCV10,SV10..DLX198308-198406

FB,GRAY,GRAY,TRIM1#

main71410-32160-04iCV10,SV10..DLX198308-198406

FB,BLUE,BLUE,TRIM8#

main71410-32160-05iCV10,SV10..DLX198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71410-32250-03iCV10,SV1#..LHD..(GL,GLI)198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71410-32250-04iCV10,SV1#..LHD..(GL,GLI)198406-198508

FB,BLUE,BLUE,TRIM8#

main71410-32250-05iCV10,SV1#..LHD..(GL,GLI)198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71410-32251-03iCV11,SV1#..LHD..(GL,GLI)198508-198511

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71410-32251-04iCV11,SV1#..LHD..(GL,GLI)198508-198511

FB,BLUE,BLUE,TRIM8#

main71410-32251-05iCV11,SV1#..LHD..(GL,GLI)198508-198511

FB,BEIGE,BEIGE,TRIM4#

main71410-32260-03iCV10,SV1#..RHD198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71410-32260-04iCV10,SV1#..RHD198406-198508

FB,BLUE,BLUE,TRIM8#

main71410-32260-05iCV10,SV1#..RHD198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71410-32261-03iCV11,SV1#..RHD198508-198610

FB,SHADOW,SHADOW GRAY,TRIM1#

main71410-32261-04iCV11,SV1#..RHD198508-198610

FB,BLUE,BLUE,TRIM8#

main71410-32261-05iCV11,SV1#..RHD198508-198610

FB,BEIGE,BEIGE,TRIM4#

main71420-32120-03iCV10,SV1#..RHD198308-198406

FB,GRAY,GRAY,TRIM1#

main71420-32120-04iCV10,SV1#..RHD198308-198406

FB,BLUE,BLUE,TRIM8#

main71420-32120-05iCV10,SV1#..RHD198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71420-32210-03iCV1#,SV10..DLX198406-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71420-32210-04iCV1#,SV10..DLX198406-198610

FB,BLUE,BLUE,TRIM8#

main71420-32210-05iCV1#,SV10..DLX198408-198610

FB,BEIGE,BEIGE,TRIM4#

main71420-32230-03iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71420-32230-04iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71420-32230-05iSV11..SDZ198408-198508

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71420-32231-03iSV11..SDZ198508-198511

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71420-32231-04iSV11..SDZ198508-198511

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71420-32231-05iSV11..SDZ198508-198511

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71420-32232-03iSV11..SDZ198511-198610

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71420-32232-04iSV11..SDZ198511-198610

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71420-32232-05iSV11..SDZ198511-198610

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71420-32250-03iCV11,SV1#..LHD..(GL,GLI)198511-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71420-32250-04iCV11,SV1#..LHD..(GL,GLI)198511-198610

FB,BLUE,BLUE,TRIM8#

main71420-32250-05iCV11,SV1#..LHD..(GL,GLI)198511-198610

FB,BEIGE,BEIGE,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-32020-03iSV10..DLX198210-198308

FB,GRAY,GRAY,TRIM1#

main71430-32020-04iSV10..DLX198210-198308

FB,BLUE,BLUE,TRIM8#

main71430-32020-05iSV10..DLX198210-198308

FB,BEIGE,BEIGE,TRIM4#

main71430-32090-03iSV1#..RHD198210-198308

FB,GRAY,GRAY,TRIM1#

main71430-32090-04iSV1#..RHD198210-198308

FB,BLUE,BLUE,TRIM8#

main71430-32090-06iSV1#..RHD198210-198308

FB,BROWN,BROWN,TRIM4#

main71430-32091-03iCV10,SV1#..RHD198308-198406

FB,GRAY,GRAY,TRIM1#

main71430-32091-04iCV10,SV1#..RHD198308-198406

FB,BLUE,BLUE,TRIM8#

main71430-32091-05iCV10,SV1#..RHD198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71430-32100-03iSV1#..LHD..(GL,GLI)198210-198308

FB,GRAY,GRAY,TRIM1#

main71430-32100-04iSV1#..LHD..(GL,GLI)198210-198308

FB,BLUE,BLUE,TRIM8#

main71430-32100-06iSV1#..LHD..(GL,GLI)198210-198308

FB,BROWN,BROWN,TRIM4#

main71430-32150-03iCV10,SV10..DLX198308-198406

FB,GRAY,GRAY,TRIM1#

main71430-32150-04iCV10,SV10..DLX198308-198406

FB,BLUE,BLUE,TRIM8#

main71430-32150-05iCV10,SV10..DLX198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71430-32170-03iCV1#,SV10..DLX198406-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71430-32170-04iCV1#,SV10..DLX198406-198610

FB,BLUE,BLUE,TRIM8#

main71430-32170-05iCV1#,SV10..DLX198408-198610

FB,BEIGE,BEIGE,TRIM4#

main71430-32200-03iCV10,SV1#..RHD198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71430-32200-04iCV10,SV1#..RHD198406-198508

FB,BLUE,BLUE,TRIM8#

main71430-32200-05iCV10,SV1#..RHD198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71430-32240-03iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71430-32240-04iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71430-32240-05iSV11..SDZ198408-198508

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71430-32241-03iSV11..SDZ198508-198610

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71430-32241-04iSV11..SDZ198508-198610

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71430-32241-05iSV11..SDZ198508-198610

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71430-32250-03iCV11,SV1#..RHD198508-198610

FB,SHADOW,SHADOW GRAY,TRIM1#

main71430-32250-04iCV11,SV1#..RHD198508-198610

FB,BLUE,BLUE,TRIM8#

main71430-32250-05iCV11,SV1#..RHD198508-198610

FB,BEIGE,BEIGE,TRIM4#

main71440-32050-03iCV11,SV1#..LHD..(GL,GLI)198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71440-32050-04iCV11,SV1#..LHD..(GL,GLI)198508-198610

FB,BLUE,BLUE,TRIM8#

main71440-32050-05iCV11,SV1#..LHD..(GL,GLI)198508-198610

FB,BEIGE,BEIGE,TRIM4#

main71440-32090-03iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,GRAY,GRAY,TRIM1#

main71440-32090-04iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,BLUE,BLUE,TRIM8#

main71440-32090-05iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71440-32120-03iCV10,SV1#..LHD..(GL,GLI)198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71440-32120-04iCV10,SV1#..LHD..(GL,GLI)198406-198508

FB,BLUE,BLUE,TRIM8#

main71440-32120-05iCV10,SV1#..LHD..(GL,GLI)198408-198508

FB,BEIGE,BEIGE,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-32020-03iSV10..DLX198210-198308

FB,GRAY,GRAY,TRIM1#

main71430-32020-04iSV10..DLX198210-198308

FB,BLUE,BLUE,TRIM8#

main71430-32020-05iSV10..DLX198210-198308

FB,BEIGE,BEIGE,TRIM4#

main71430-32100-03iSV1#..RHD198210-198308

FB,GRAY,GRAY,TRIM1#

main71430-32100-04iSV1#..RHD198210-198308

FB,BLUE,BLUE,TRIM8#

main71430-32100-06iSV1#..RHD198210-198308

FB,BROWN,BROWN,TRIM4#

main71430-32150-03iCV10,SV10..DLX198308-198406

FB,GRAY,GRAY,TRIM1#

main71430-32150-04iCV10,SV10..DLX198308-198406

FB,BLUE,BLUE,TRIM8#

main71430-32150-05iCV10,SV10..DLX198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71430-32170-03iCV1#,SV10..DLX198406-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71430-32170-04iCV1#,SV10..DLX198406-198610

FB,BLUE,BLUE,TRIM8#

main71430-32170-05iCV1#,SV10..DLX198408-198610

FB,BEIGE,BEIGE,TRIM4#

main71440-32050-03iCV11,SV1#..RHD198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71440-32050-04iCV11,SV1#..RHD198508-198610

FB,BLUE,BLUE,TRIM8#

main71440-32050-05iCV11,SV1#..RHD198508-198610

FB,BEIGE,BEIGE,TRIM4#

main71440-32060-03iSV1#..LHD..(GL,GLI)198210-198308

FB,GRAY,GRAY,TRIM1#

main71440-32060-04iSV1#..LHD..(GL,GLI)198210-198308

FB,BLUE,BLUE,TRIM8#

main71440-32060-06iSV1#..LHD..(GL,GLI)198210-198308

FB,BROWN,BROWN,TRIM4#

main71440-32061-03iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,GRAY,GRAY,TRIM1#

main71440-32061-04iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,BLUE,BLUE,TRIM8#

main71440-32061-05iCV10,SV1#..LHD..(GL,GLI)198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71440-32090-03iCV10,SV1#..RHD198308-198406

FB,GRAY,GRAY,TRIM1#

main71440-32090-04iCV10,SV1#..RHD198308-198406

FB,BLUE,BLUE,TRIM8#

main71440-32090-05iCV10,SV1#..RHD198308-198406

FB,BEIGE,BEIGE,TRIM4#

main71440-32120-03iCV10,SV1#..RHD198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71440-32120-04iCV10,SV1#..RHD198406-198508

FB,BLUE,BLUE,TRIM8#

main71440-32120-05iCV10,SV1#..RHD198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71440-32150-03iCV10,SV1#..LHD..(GL,GLI)198406-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71440-32150-04iCV10,SV1#..LHD..(GL,GLI)198406-198508

FB,BLUE,BLUE,TRIM8#

main71440-32150-05iCV10,SV1#..LHD..(GL,GLI)198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71440-32151-03iCV11,SV1#..LHD..(GL,GLI)198508-198610

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71440-32151-04iCV11,SV1#..LHD..(GL,GLI)198508-198610

FB,BLUE,BLUE,TRIM8#

main71440-32151-05iCV11,SV1#..LHD..(GL,GLI)198508-198610

FB,BEIGE,BEIGE,TRIM4#

main71440-32160-03iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71440-32160-04iSV11..SDZ198406-198508

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71440-32160-05iSV11..SDZ198408-198508

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

main71440-32161-03iSV11..SDZ198508-198610

SWEEDEN SPEC,FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71440-32161-04iSV11..SDZ198508-198610

SWEEDEN SPEC,FB,BLUE,BLUE,TRIM8#

main71440-32161-05iSV11..SDZ198508-198610

SWEEDEN SPEC,FB,BEIGE,BEIGE,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-32010iSV10..DLX198210-198306

main71511-32020iSV1#..GL,GLI198210-198306

main71511-32030iCV10,SV10..DLX198306-198406

main71511-32040iCV10,SV1#..GL,GLI198306-198406

main71511-32060iCV1#,SV1#198502-198610

main71511-32070iCV10,SV1#198406-198502

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-32010iSV10..DLX198210-198306

main71511-32020iSV1#..GL,GLI198210-198306

main71511-32030iCV10,SV10..DLX198306-198406

main71511-32040iCV10,SV1#..GL,GLI198306-198406

main71511-32060iCV1#,SV1#198502-198610

main71511-32070iCV10,SV1#198406-198502

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-32010iSV10..DLX198210-198306

main71551-32020iSV1#..GL,GLI198210-198306

main71551-32040iCV10,SV10..DLX198306-198406

main71551-32050iCV10,SV1#..GL,GLI198306-198406

main71551-32060iCV10,SV1#198406-198502

main71551-32070iCV1#,SV1#198502-198610

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-32010iSV10..DLX198210-198306

main71551-32020iSV1#..GL,GLI198210-198306

main71551-32040iCV10,SV10..DLX198306-198406

main71551-32050iCV10,SV1#..GL,GLI198306-198406

main71551-32060iCV10,SV1#198406-198502

main71551-32070iCV1#,SV1#198502-198610

71571PAD, FRONT SEATBACK SILENCER, A

main71571-24010×2iCV1#,SV1#198210-198610

71581CPAD, FRONT SEATBACK CORNER, C

main71583-32010×2iCV1#,SV10..DLX198210-198610

71581DPAD, FRONT SEATBACK CORNER, D

main71584-32010×2iCV1#,SV10..DLX198210-198610

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-32010iCV1#,SV1#..LHD198210-198610

main71610-32020iCV1#,SV1#..RHD198210-198610

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-32010iCV1#,SV1#..RHD198210-198610

main71610-32020iCV1#,SV1#..LHD198210-198610

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-32010iCV10,SV1#..LHD198210-198406

main71630-32020iCV10,SV1#..RHD198210-198406

main71630-32040iCV1#,SV10..DLX198406-198610

main71630-32050iCV1#,SV1#..RHD198406-198610

main71630-32060iCV1#,SV1#..LHD..(GL,GLI)198406-198610

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-32010iCV10,SV1#..RHD;CV10,SV10..DLX198210-198406

main71630-32040iCV1#,SV10..DLX198406-198610

main71630-32060iCV1#,SV1#..RHD198406-198610

main71640-32010iCV10,SV1#..LHD..(GL,GLI)198210-198406

main71640-32020iCV1#,SV1#..LHD..(GL,GLI)198406-198610

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-32010-03iCV10,SV1#..LHD198210-198406

GRAY,GRAY,TRIM1#

main71811-32010-04iCV1#,SV1#..LHD198210-198610

BLUE,BLUE,TRIM8#

main71811-32010-05iCV1#,SV1#..LHD198408-198610

BEIGE,BEIGE,TRIM4#

main71811-32010-06iCV10,SV1#..LHD198210-198406

BROWN,BROWN,TRIM4#

main71811-32010-13iCV1#,SV1#..LHD198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71811-32020-03iCV10,SV1#..RHD198210-198406

GRAY,GRAY,TRIM1#

main71811-32020-04iCV1#,SV1#..RHD198210-198610

BLUE,BLUE,TRIM8#

main71811-32020-05iCV1#,SV1#..RHD198408-198610

BEIGE,BEIGE,TRIM4#

main71811-32020-06iCV10,SV1#..RHD198210-198406

BROWN,BROWN,TRIM4#

main71811-32020-13iCV1#,SV1#..RHD198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iCV1#,SV1#198210-198610

sub90468-18008

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-32010-03iCV10,SV1#..RHD198210-198406

GRAY,GRAY,TRIM1#

main71812-32010-04iCV1#,SV1#..RHD198210-198610

BLUE,BLUE,TRIM8#

main71812-32010-05iCV1#,SV1#..RHD198408-198610

BEIGE,BEIGE,TRIM4#

main71812-32010-06iCV10,SV1#..RHD198210-198406

BROWN,BROWN,TRIM4#

main71812-32010-13iCV1#,SV1#..RHD198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71812-32020-03iCV10,SV1#..LHD198210-198406

GRAY,GRAY,TRIM1#

main71812-32020-04iCV1#,SV1#..LHD198210-198610

BLUE,BLUE,TRIM8#

main71812-32020-05iCV1#,SV1#..LHD198408-198610

BEIGE,BEIGE,TRIM4#

main71812-32020-06iCV10,SV1#..LHD198210-198406

BROWN,BROWN,TRIM4#

main71812-32020-13iCV1#,SV1#..LHD198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-32010-03iCV10,SV1#198210-198406

GRAY,GRAY,TRIM1#

main71861-32010-04iCV1#,SV1#198210-198610

BLUE,BLUE,TRIM8#

main71861-32010-05iCV1#,SV1#198408-198610

BEIGE,BEIGE,TRIM4#

main71861-32010-06iCV10,SV1#198210-198406

BROWN,BROWN,TRIM4#

main71861-32010-13iCV1#,SV1#198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-32010-03iCV10,SV1#198210-198406

GRAY,GRAY,TRIM1#

main71862-32010-04iCV1#,SV1#198210-198610

BLUE,BLUE,TRIM8#

main71862-32010-05iCV1#,SV1#198408-198610

BEIGE,BEIGE,TRIM4#

main71862-32010-06iCV10,SV1#198210-198406

BROWN,BROWN,TRIM4#

main71862-32010-13iCV1#,SV1#198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

71950HEADREST ASSY, FRONT SEAT

main71910-32010-03×2iCV10,SV10..DLX198210-198406

GRAY,GRAY,TRIM1#

sub71910-32100

main71910-32010-04×2iCV10,SV10..DLX198210-198406

BLUE,BLUE,TRIM8#

sub71910-32100

main71910-32010-05×2iCV10,SV10..DLX198210-198406

BEIGE,BEIGE,TRIM4#

sub71910-32100

main71910-32050-03×2iSV1#..GL,GLI198210-198308

GRAY,GRAY,TRIM1#

main71910-32050-04×2iSV1#..GL,GLI198210-198308

BLUE,BLUE,TRIM8#

main71910-32050-06×2iSV1#..GL,GLI198210-198308

BROWN,BROWN,TRIM4#

main71910-32051-03×2iCV10,SV1#..GL,GLI198308-198406

GRAY,GRAY,TRIM1#

main71910-32051-04×2iCV10,SV1#..GL,GLI198308-198406

BLUE,BLUE,TRIM8#

main71910-32051-05×2iCV10,SV1#..GL,GLI198308-198406

BEIGE,BEIGE,TRIM4#

main71910-32110-03×2iCV1#,SV10..DLX198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71910-32110-04×2iCV1#,SV10..DLX198406-198610

BLUE,BLUE,TRIM8#

main71910-32110-05×2iCV1#,SV10..DLX198408-198610

BEIGE,BEIGE,TRIM4#

main71910-32160-03×2iCV10,SV1#..GL,GLI198406-198508

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71910-32160-04×2iCV10,SV1#..GL,GLI198406-198508

BLUE,BLUE,TRIM8#

main71910-32160-05×2iCV10,SV1#..GL,GLI198408-198508

BEIGE,BEIGE,TRIM4#

main71910-32170-03×2iCV11,SV1#..GL,GLI198508-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

main71910-32170-04×2iCV11,SV1#..GL,GLI198508-198610

BLUE,BLUE,TRIM8#

main71910-32170-05×2iCV11,SV1#..GL,GLI198508-198610

BEIGE,BEIGE,TRIM4#

71956ASUPPORT, FRONT SEAT HEADREST

main71930-10060-04×2iCV1#,SV1#198210-198610

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

main71930-10060-13×2iCV1#,SV1#198210-198610

W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1#

main71930-10060-16×2iCV1#,SV1#198408-198610

W(LOCK),W/LOCK,DARK BROWN,SABLE,TRIM4#

main71930-10060-25×2iCV10,SV1#198210-198406

W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4#

main71931-10010-04×2iCV1#,SV1#198210-198610

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

main71931-10010-13×2iCV1#,SV1#198210-198610

W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1#

main71931-10010-16×2iCV1#,SV1#198408-198610

W/O(LOCK),W/O LOCK,DARK BROWN,SABLE,TRIM4#

main71931-10010-25×2iCV10,SV1#198210-198406

W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4#

72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

main72011-32010iCV10,SV1#..LHD198210-198406

sub72011-32H00

main72011-32020iCV10,SV1#..RHD198210-198406

main72011-32030iCV1#,SV1#..LHD198406-198610

main72011-32040iCV1#,SV1#..RHD198406-198610

72011ASPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)

main90506-14039×4iCV1#,SV1#198210-198610

WD=1.4

main90506-35001iCV1#,SV1#198210-198610

WD=3.5

72011BSPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)

main90506-18035×2iCV10,SV1#198210-198406

72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

main72012-32010iCV10,SV1#..RHD198210-198406

sub72012-32H00

main72012-32020iCV10,SV1#..LHD198210-198406

main72012-32040iCV1#,SV1#..RHD198406-198610

main72012-32050iCV1#,SV1#..LHD198406-198610

72021ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

main72021-32010iCV10,SV1#..LHD198210-198406

sub72011-32H00

main72021-32020iCV10,SV1#..RHD198210-198406

main72021-32040iCV1#,SV1#..LHD198406-198610

main72021-32050iCV1#,SV1#..RHD198406-198610

72022ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

main72022-32010iCV10,SV1#..RHD198210-198406

sub72012-32H00

main72022-32020iCV10,SV1#..LHD198210-198406

main72022-32040iCV1#,SV1#..RHD198406-198610

main72022-32050iCV1#,SV1#..LHD198406-198610

72457AKNOB, SEAT ADJUSTER

main72496-32010-03iCV10,SV1#198210-198406

GRAY,GRAY,TRIM1#

main72496-32010-04iCV1#,SV1#198210-198610

BLUE,BLUE,TRIM8#

main72496-32010-05iCV1#,SV1#198408-198610

BEIGE,BEIGE,TRIM4#

main72496-32010-06iCV10,SV1#198210-198406

BROWN,BROWN,TRIM4#

main72496-32010-23iCV1#,SV1#198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

72496KNOB, VERTICAL SEAT ADJUSTER, NO.2

main72457-14030-03iCV10,SV1#198210-198406

GRAY,GRAY,TRIM1#

sub72457-89102

main72457-14030-04iCV1#,SV1#198210-198610

BLUE,BLUE,TRIM8#

sub72457-89102

main72457-14030-16iCV10,SV1#198210-198406

BROWN,BROWN,TRIM4#

sub72457-89102

main72457-14030-23iCV1#,SV1#198406-198610

SHADOW GRAY,GRAY,TRIM1#

sub72457-89102

main72457-14030-35iCV1#,SV1#198408-198610

BEIGE,BEIGE,TRIM4#

sub72457-89102

72501CPIPE SUB-ASSY, RECLINING CONNECTING

main72501-32010×2iCV1#,SV1#198210-198610

72524HANDLE, RECLINING ADJUSTER RELEASE

main72525-20050-13iCV10,SV1#198210-198406

RH,GRAY,GRAY,TRIM1#

main72525-20050-24iCV1#,SV1#198210-198610

RH,BLUE,BLUE,TRIM8#

main72525-20050-26iCV10,SV1#198210-198406

RH,BROWN,BROWN,TRIM4#

main72525-20050-53iCV1#,SV1#198406-198610

RH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main72525-20050-55iCV1#,SV1#198408-198610

RH,BEIGE,BEIGE,TRIM4#

main72526-20040-13iCV10,SV1#198210-198406

LH,GRAY,GRAY,TRIM1#

main72526-20040-24iCV1#,SV1#198210-198610

LH,BLUE,BLUE,TRIM8#

main72526-20040-26iCV10,SV1#198210-198406

LH,BROWN,BROWN,TRIM4#

main72526-20040-53iCV1#,SV1#198406-198610

LH,SHADOW GRAY,SHADOW GRAY,TRIM1#

main72526-20040-55iCV1#,SV1#198408-198610

LH,BEIGE,BEIGE,TRIM4#

72760AADJUSTER ASSY, LUMBAR SUPPORT

main72750-32010iCV1#,SV1#..RHD198210-198610

main72760-32010iCV1#,SV1#..LHD..(GL,GLI)198210-198610

72791LEVER, LUMBAR SUPPORT

main72791-22020-03iCV10,SV1#..GL,GLI198210-198406

GRAY,GRAY,TRIM1#

main72791-22020-04iCV1#,SV1#..GL,GLI198210-198610

BLUE,BLUE,TRIM8#

main72791-22020-16iCV10,SV1#..GL,GLI198210-198406

BROWN,BROWN,TRIM4#

main72791-22020-23iCV1#,SV1#..GL,GLI198406-198610

SHADOW GRAY,GRAY,TRIM1#

main72791-22020-25iCV1#,SV1#..GL,GLI198408-198610

BEIGE,BEIGE,TRIM4#

9011908276

main90119-08276

9011910117

main90119-10117

9016840049

main90168-40049

9046710015

main90467-10015

9046804076

main90468-04076

9052001002

main90520-01002

9052308001

main90523-08001

9161560820

main91615-60820

9324954006

main93249-54006

9338616016

main93386-16016

9356054010

main93560-54010

51 parts on this diagram · 3 diagrams in section
