PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

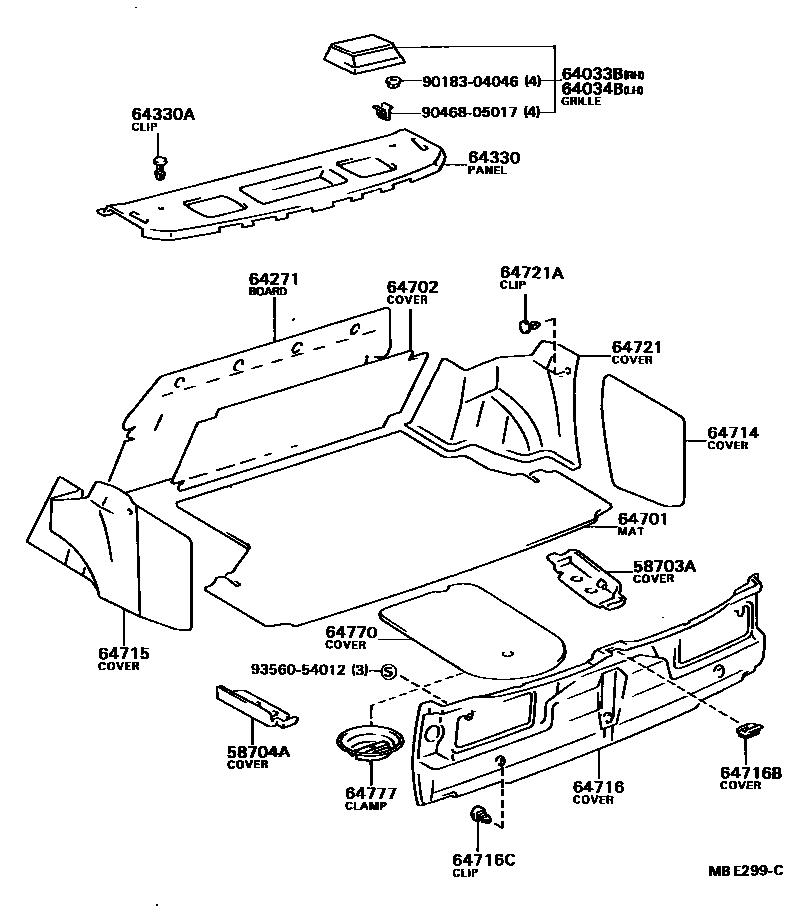

Parts diagram
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58773-32010i198210-198610
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
main58774-32010i198210-198610
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-32010-05i198603-198610
BEIGE,BEIGE,TRIM4#
sub64033-32010
main64033-32010-13i198603-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
sub64033-32010
main64033-32010-14i198603-198610
BLUE,BLUE,TRIM8#
sub64033-32010
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
main64033-32010-05i198603-198610
BEIGE,BEIGE,TRIM4#
sub64033-32010
main64033-32010-13i198603-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
sub64033-32010
main64033-32010-14i198603-198610
BLUE,BLUE,TRIM8#
sub64033-32010
64271BOARD, ROOM PARTITION, NO.1
main64271-32010i198210-198610
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-32030-04i198603-198610
W/SPEAKER,SEAT BELT,BLUE,BLUE,TRIM8#
sub64330-32030
sub64330-32040
main64330-32030-05i198603-198610
W/SPEAKER,SEAT BELT,BEIGE,BEIGE,TRIM4#
sub64330-32030
sub64330-32040
main64330-32030-13i198603-198610
W/SPEAKER,SEAT BELT,GRAY,SHADOW GRAY,TRIM1#
sub64330-32030
sub64330-32040
main64330-32040-03i198210-198406
W/RR SEAT BELT,DARK GRAY,GRAY,TRIM1#
sub64330-32040
main64330-32040-04i198210-198610
W/RR SEAT BELT,BLUE,BLUE,TRIM8#
sub64330-32040
main64330-32040-05i198408-198610
W/RR SEAT BELT,BEIGE,BEIGE,TRIM4#
sub64330-32040
main64330-32040-06i198210-198406
W/RR SEAT BELT,DARK BROWN,BROWN,TRIM4#
sub64330-32040
main64330-32040-13i198406-198610
W/RR SEAT BELT,SHADOW GRAY,SHADOW GRAY,TRIM1#
sub64330-32040
main64330-32050-04i198603-198610
W/SPEAKER,W/O SEAT BELT,BLUE,BLUE,TRIM8#
sub64330-32050
sub64330-32070
main64330-32050-05i198603-198610
W/SPEAKER,W/O SEAT BELT,BEIGE,BEIGE,TRIM4#
sub64330-32050
sub64330-32070
main64330-32050-13i198603-198610
W/SPEAKER,W/O SEAT BELT,GRAY,SHADOW GRAY,TRIM1#
sub64330-32050
sub64330-32070
main64330-32070-03i198210-198406
W/O RR SEAT BELT,DARK GRAY,GRAY,TRIM1#
sub64330-32070
main64330-32070-04i198210-198610
W/O RR SEAT BELT,BLUE,BLUE,TRIM8#
sub64330-32070
main64330-32070-05i198408-198610
W/O RR SEAT BELT,BEIGE,BEIGE,TRIM4#
sub64330-32070
main64330-32070-06i198210-198406
W/O RR SEAT BELT,DARK BROWN,BROWN,TRIM4#
sub64330-32070
main64330-32070-13i198406-198610
W/O RR SEAT BELT,SHADOW GRAY,SHADOW GRAY,TRIM1#
sub64330-32070
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-09012-01i198210-198406
BLACK,BLACK
sub90467-09012
main90467-09047-01i198406-198610
BLACK,BLACK
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
main64711-32010i198210-198308
main64711-32020i198210-198610
64702COVER SUB-ASSY, LUGGAGE COMPARTMENT, FRONT
main64717-32010i198210-198308
sub64717-32020
main64717-32020i198308-198610
64714COVER, LUGGAGE COMPARTMENT, RH
main64714-32010i198210-198301
main64714-32020i198301-198308
main64714-32021i198308-198610
64715COVER, LUGGAGE COMPARTMENT, LH
main64072-32020i198210-198301
main64072-32040i198301-198308
main64072-32041i198308-198407
main64072-32042i198407-198610
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
main64716-32010i198210-198308
sub64716-32030
main64716-32030i198308-198610
64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER
main64749-14030i198210-198610
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05014-03i198210-198610
GRAY
sub90467-05014
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-32010i198210-198308
sub64721-32011
main64721-32020i198308-198407
sub64721-32021
main64721-32021i198407-198610
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-07158-13i198210-198610
GRAY
sub90467-07158
64770COVER ASSY, SPARE WHEEL
main64770-32010i198210-198309
main64770-32030i198309-198610
64777CLAMP, SPARE WHEEL COVER
main64777-32020i198210-198610
sub64777-32030
9018304046
main90183-04046
9046805017
main90468-05017
9356054012
main93560-54012

21 parts on this diagram · 1 diagram in section
