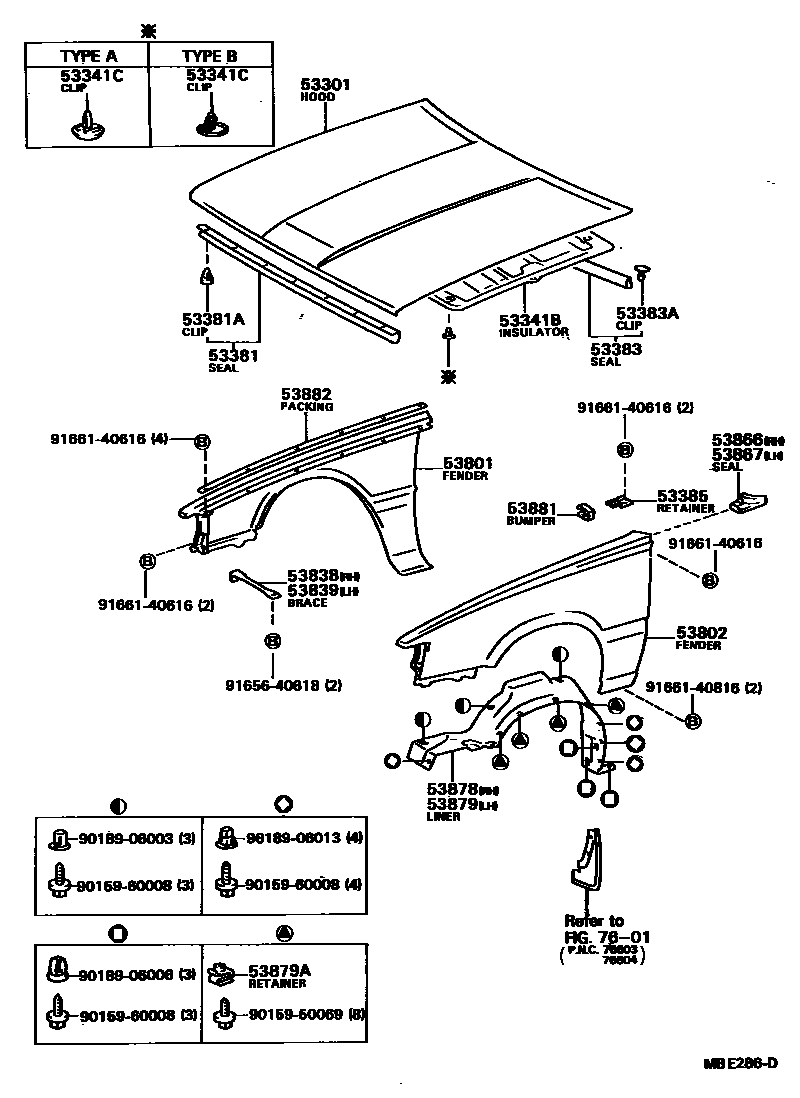

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-32040iCV1#,SV1#198210-198610

53341BINSULATOR, HOOD

main53341-32010iSV1#198508-198610

main53341-32020iCV1#198308-198610

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006iCV1#198308-198610

TYPE A

main90467-11020iCV1#198308-198610

TYPE B

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-32010iCV1#,SV1#198210-198610

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iCV1#,SV1#198210-198610

53383SEAL, HOOD TO COWL TOP

main53383-32010iCV1#,SV1#198210-198610

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08030iCV10,SV1#198210-198405

main90467-08044iCV1#,SV1#198405-198610

53385RETAINER, HOOD, BUMPER

main53385-14010iCV1#,SV1#198210-198610

RH

main53386-14010iCV1#,SV1#198210-198610

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-32040iCV1#,SV1#198210-198610

53802FENDER SUB-ASSY, FRONT LH

main53802-32030iCV1#,SV1#198210-198610

W/ANTENA

main53802-32040iCV1#,SV1#..EUR198210-198610

W/O ANTENA

53838BRACE, FRONT FENDER, RH

main53835-32010iCV1#,SV1#198210-198610

53839BRACE, FRONT FENDER, LH

main53835-32010iCV1#,SV1#198210-198610

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-32010iCV1#,SV1#198406-198610

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-32010iCV1#,SV1#198406-198610

53878LINER, FRONT FENDER, RH

main53875-32010iCV1#,SV1#198210-198610

53879LINER, FRONT FENDER, LH

main53876-32010iCV1#,SV1#198210-198610

53879ARETAINER, FRONT FENDER LINER

main53879-14010iCV1#,SV1#198210-198610

53881BUMPER, FENDER TO HOOD

main53384-14030iCV1#,SV1#198210-198610

53882PACKING, FRONT FENDER MAIN

main53882-32010iCV1#,SV1#198210-198610

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9015950069

main90159-50069

9015960008

main90159-60008

9018906003

main90189-06003

9018906006

main90189-06006

9018906013

main90189-06013

9165640618

main91656-40618

9166140616

main91661-40616

9166140816

main91661-40816

28 parts on this diagram · 1 diagram in section
