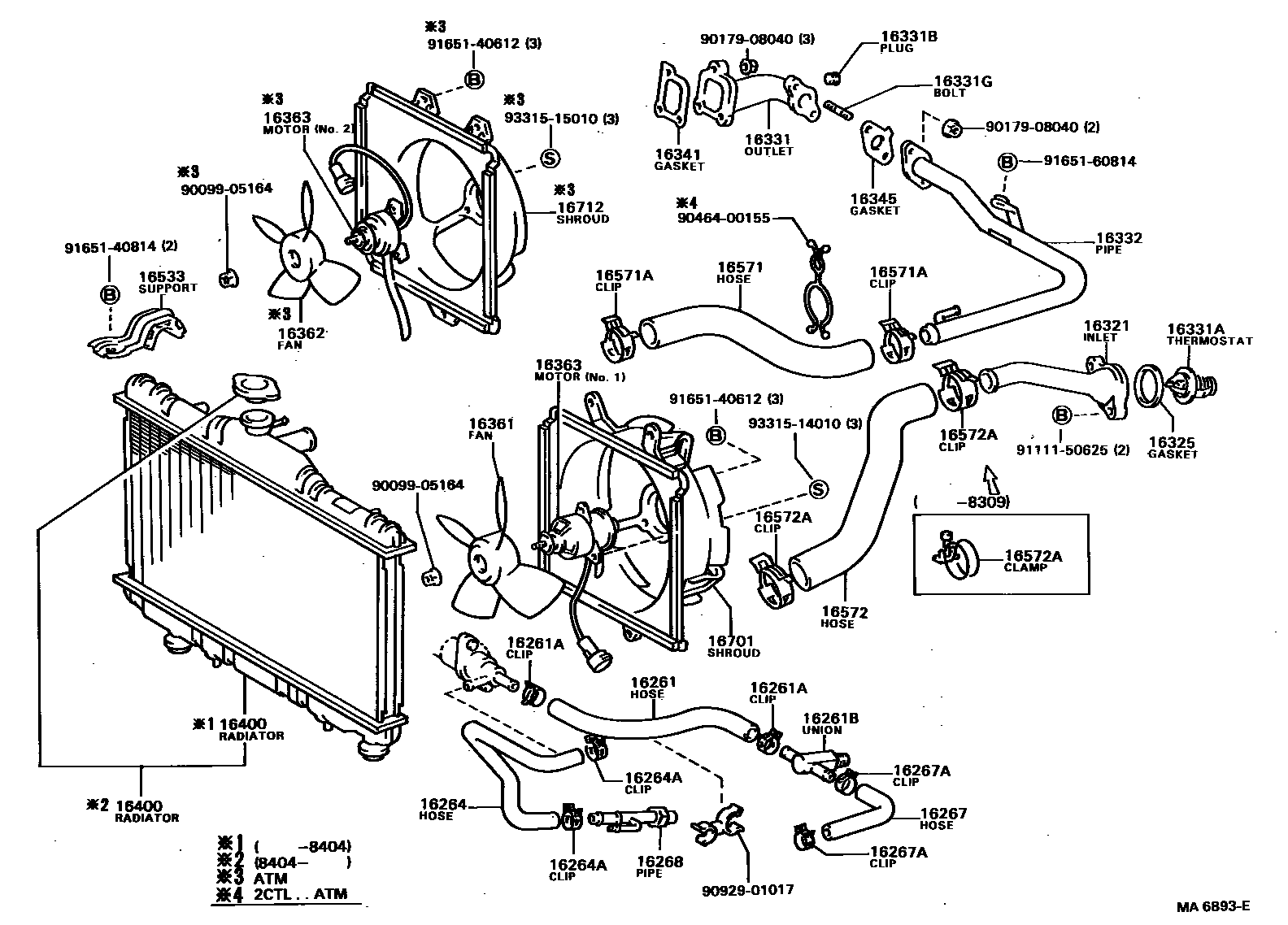

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

16261HOSE, WATER BY-PASS

main16261-63010i1SL,2SE#..SV1#198210-198610

main16261-64030i1CTL..CV10198308-198508

main16261-64060i2CTL..CV11198508-198610

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15004i1CTL,2CTL..CV1#198308-198610

main90467-21001i1SL,2SE#..SV1#198508-198610

sub90467-21006

main96111-10250i1SL,2SELC..SV1#198210-198308

sub96112-10250

main96112-10250i1SL,2SE#..SV1#198308-198508

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-53050i1CTL,2CTL..CV1#198308-198610

16264HOSE, WATER BY-PASS, NO.2

main16264-64030i1CTL..CV10198308-198405

sub16264-64031

main16264-64031i1CTL..CV10198405-198508

main16264-64060i2CTL..CV11198508-198610

main99555-10230i1SL..SV10198406-198610

*H,L=230

sub99555-10300

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i1SL..SV10198406-198610

sub96135-51300

main90467-15004i1CTL,2CTL..CV1#198308-198610

16267HOSE, WATER BY-PASS, NO.3

main16267-64010i1CTL,2CTL..CV1#198308-198610

main99555-00140i1SL..SV10198406-198610

*H,L=140

sub99555-00150

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-11009i1CTL,2CTL..CV1#198308-198610

sub96135-51100

16268PIPE, WATER BY-PASS, NO.1

main16268-63010i1SL..SV10198406-198610

sub16268-63020

main16268-64020i1CTL..CV10198308-198508

main16268-64040i2CTL..CV11198508-198610

16321INLET, WATER

main16321-64020i1CTL,2CTL..CV1#198308-198610

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1SL,2SE#..SV1#198210-198610

sub16325-63011

16331OUTLET, WATER

main16331-63050i1SL..SV10198210-198211

main16331-63060i2SE#..SV11..5F..(EUG,SDZ)198303-198610

main16331-63070i2SELC..SV11..4FC..SDZ198211-198610

main16331-63080i2SELC..SV11..FRG;2SELC..SV11..5F..ARL198508-198610

main16331-63090i2SELC..SV11..4FC..ARL198310-198610

main16331-64030i1CTL,2CTL..CV1#198308-198610

16331ATHERMOSTAT

main90916-03046i1SL,2SE#..SV1#198210-198610

*WAX 82-95,*WAX 82-95

16331BPLUG(FOR WATER OUTLET)

main90344-53011i1SL..SV10..5F198210-198610

16331GBOLT, STUD(FOR WATER INLET)

main92122-60816i1CTL,2CTL..CV1#198308-198610

16332PIPE, WATER OUTLET, NO.1

main16332-64010i1CTL,2CTL..CV1#198308-198610

16341GASKET, WATER OUTLET

main16341-63010i1SL,2SE#..SV1#198210-198610

sub16341-63011

main16341-64010i1CTL,2CTL..CV1#198308-198610

sub16341-64020

16345GASKET, WATER OUTLET PIPE

main16345-64020i1CTL,2CTL..CV1#198308-198610

sub16345-64040

16361FAN

main16361-63020i1SL,2SE#..SV1#..4FC198210-198610

sub16361-74070

main16361-63030i1SL,2SE#..SV1#..5F198210-198406

main16361-63040i1SL,2SE#..SV1#..5F198406-198610

main16361-64020i1CTL,2CTL..CV1#198308-198610

16362FAN, NO.2

main88453-32010i1CTL,2CTL..CV1#..4FC198308-198610

16363MOTOR, COOLING FAN

main16363-16030i1SL,2SE#..SV1#..5F198406-198610

main16363-63020i1SL,2SE#..SV1#..5F198210-198406

sub16363-15090

main16363-63030i1SL,2SE#..SV1#..4FC198210-198406

sub16363-64030

main16363-63030i1CTL..CV10198308-198406

NO.1

sub16363-64030

main16363-64020i1CTL,2CTL..CV1#..4FC198308-198610

NO.2

main16363-64030i1CTL,2CTL..CV1#198406-198610

NO.1

16400RADIATOR ASSY

main16400-63030i1SL,2SE#..SV1#..5F198210-198406

sub16400-63040

main16400-63040i1SL,2SELC..SV1#..4FC198210-198610

main16400-63120i1SL,2SE#..SV1#..5F198406-198610

sub16400-63040

main16400-64110i1CTL,2CTL..CV1#..5F198404-198610

sub16400-64120

main16400-64120i1CTL,2CTL..CV1#..4FC198404-198610

main16410-63030i1SL,2SE#..SV1#..5F198308-198404

sub16400-63030

main16410-63040i1SL,2SE#..SV1#..4FC198308-198404

sub16400-63040

main16410-64090i1CTL..CV10..5F198308-198404

sub16400-64110

main16410-64100i1CTL..CV10..4FC198308-198404

sub16400-64120

16533SUPPORT, RADIATOR, UPPER

main16505-63010i1SL..SV10..5F198210-198610

main16533-63040i1SL,2SELC..SV1#..4FC198210-198405

sub16533-63070

main16533-63070i1SL,2SE#..SV1#..4FC198405-198610

main16533-64020i1CTL..CV10198308-198412

sub16533-64021

main16533-64021i1CTL,2CTL..CV1#198412-198610

16571HOSE, RADIATOR, INLET

main16571-63020i1SL,2SE#..SV1#198210-198610

main16571-64070i1CTL,2CTL..CV1#198308-198610

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i1CTL,2CTL..CV1#198406-198610

sub90467-34003

main90467-34001i1SL,2SE#..SV1#198210-198406

sub90467-33003

16572HOSE, RADIATOR, OUTLET

main16572-63020i1SL,2SE#..SV1#198210-198610

main16572-64060i1CTL,2CTL..CV1#198308-198610

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i1SL,2SE#..SV1#198406-198610

RADIATOR SIDE

sub90467-34003

main90467-34001i1SL,2SE#..SV1#198210-198406

sub90467-33003

main90467-34002i1CTL..CV10198308-198406

RADIATOR SIDE

sub90467-34003

main90467-37001i1CTL,2CTL..CV1#198309-198610

INLET SIDE

sub90467-37003

main96111-10450i1CTL..CV10198308-198309

INLET SIDE

16701SHROUD SUB-ASSY, FAN

main16711-63030i1SL,2SE#..SV1#..4FC198210-198610

main16711-63050i1SL,2SE#..SV1#..5F198210-198406

main16711-63080i1SL,2SE#..SV1#..5F198406-198610

main16711-64070i1CTL,2CTL..CV1#198308-198610

16712SHROUD, FAN, NO.2

main16712-64040i1CTL,2CTL..CV1#..4FC198308-198610

9009905164

main90099-05164

9017908040

main90179-08040

9046400155

main90464-00155

9092901017

main90929-01017

9111150625

main91111-50625

9165140612

main91651-40612

9165140814

main91651-40814

9165160814

main91651-60814

9331514010

main93315-14010

9331515010

main93315-15010

38 parts on this diagram · 5 diagrams in section
