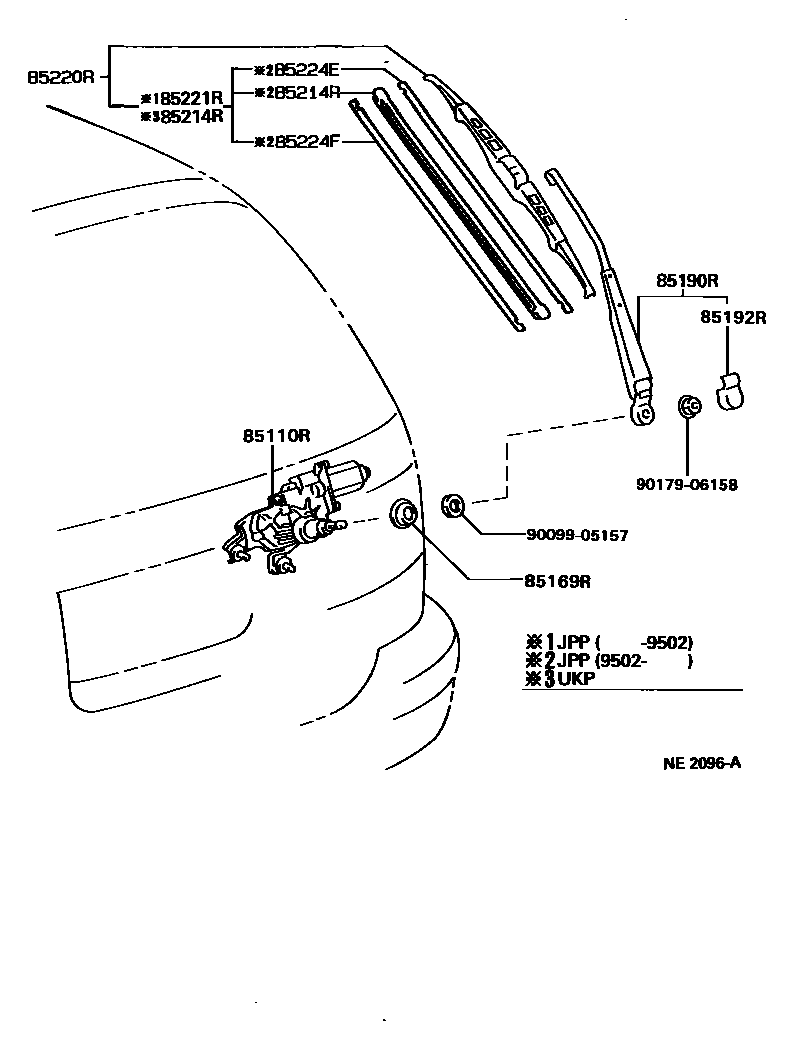

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-21020iAT19#,ST191..JPP..RHD199211-199601

main85130-21030iAT19#,CT190,ST191..JPP..LHD199211-199601

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-21020iAT19#,CT190,ST191..JPP199211-199601

85190RARM ASSY, REAR WIPER

main85241-21020iAT19#,ST191..JPP..RHD199211-199601

main85241-21030iAT19#,CT190,ST191..JPP..LHD199211-199601

85192RCOVER, REAR WIPER ARM

main85192-13060iAT19#,CT190,ST191..JPP199211-199601

85214RRUBBER, REAR WIPER

main85214-20340iAT19#,CT190,ST191..JPP199502-199601

85220RBLADE ASSY, REAR WIPER

main85242-21010iAT19#,ST191..JPP..RHD199211-199601

main85242-36010iAT19#,CT190,ST191..JPP..LHD199211-199601

85221RBLADE, REAR WIPER

main85243-36010iAT19#,CT190,ST191..JPP199211-199502

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-60070iAT19#,CT190,ST191..JPP199502-199601

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-60070iAT19#,CT190,ST191..JPP199502-199601

9009905157

main90099-05157

9017906158

main90179-06158

11 parts on this diagram · 1 diagram in section
