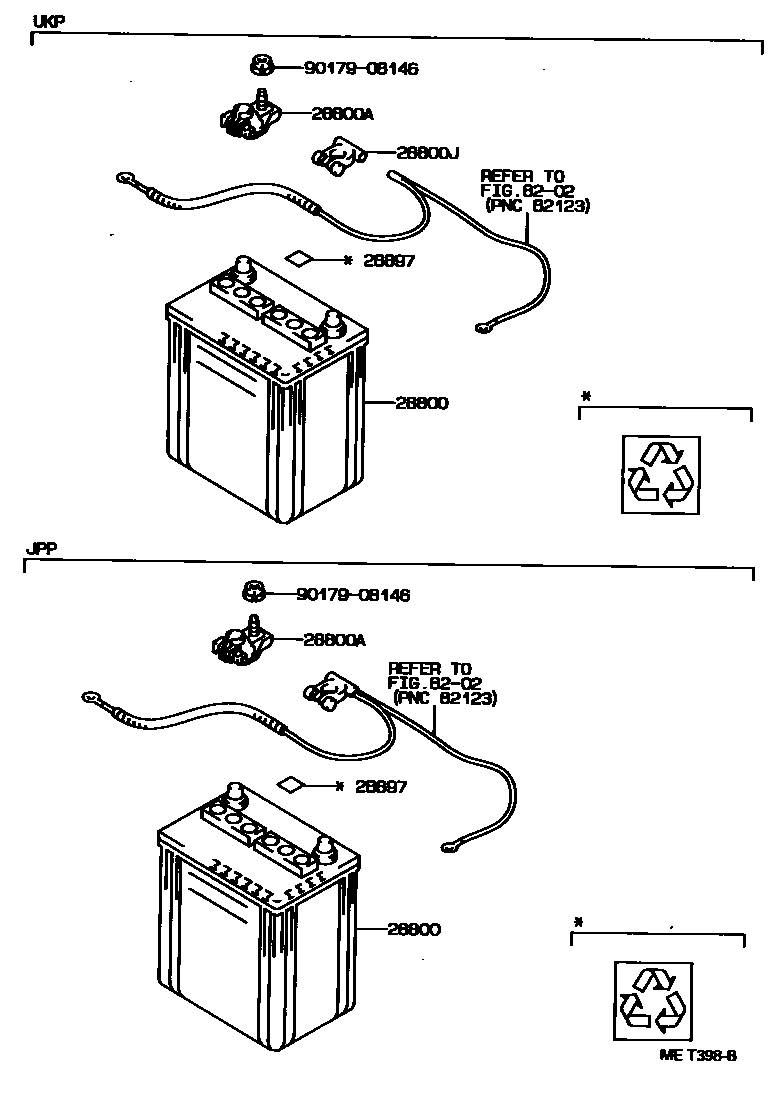

BATTERY & BATTERY CABLE

28800BATTERY

main28800-16130i4AFE,7AFE,3SFE..AT19#,ST191..JPP199411-199601

32B24L(S)

main28800-31010i4AFE,3SFE..AT190,ST191..JPP199211-199411

32C24L

main28800-42030i4AFE,7AFE,3SFE..AT19#,ST191..JPP199211-199601

55D23L

main28800-64180i2C..CT190..JPP199211-199306

95D31L

main28800-64191i2C..CT190..JPP199306-199601

95D31L,SINKOUBE

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i4AFE,7AFE,2C,3SFE..AT19#,CT190,ST191..JPP199211-199601

28800JTERMINAL, BATTERY NEGATIVE

main90982-06026i2C..CT190..JPP199211-199307

28897PLATE, BATTERY CAUTION

main28898-46010i4AFE,7AFE,2C,3SFE..AT19#,CT190,ST191..JPP..LHD199404-199601

NORWAY SPEC

main28898-50060i4AFE,2C,3SFE..AT190,CT190,ST191..JPP..LHD199211-199404

NORWAY SPEC

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

6 parts on this diagram · 1 diagram in section
