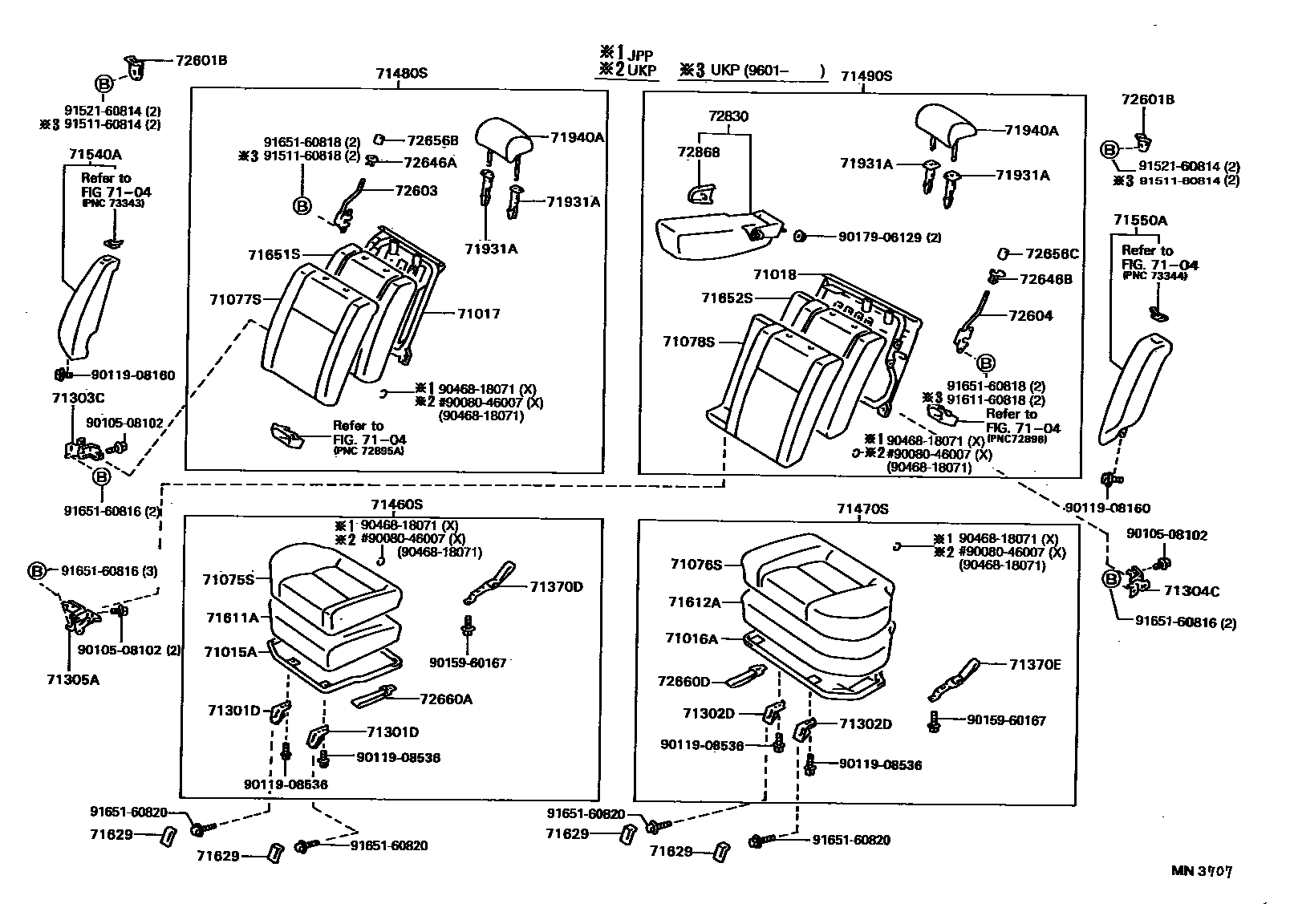

71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH

main71015-20380i199211-199601

71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH

main71016-20050i199211-199601

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-20490i199211-199601

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-20170i199407-199601

main71018-20190i199407-199601

SELECT FABRIC-*99

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71065-2B040-B0i199307-199402

GRAY,TRIM2#

main71065-2B040-B2i199211-199303

GRAY,TRIM2#

main71065-2B040-J2i199211-199303

DK.BLUE,TRIM8#

main71065-2B040-J3i199305-199402

DK.BLUE,TRIM8#

main71065-2B041-B3i199402-199601

SHADOW GRAY,TRIM1#

main71065-2B041-J5i199402-199601

DK.BLUE,TRIM8#

main71065-2B050-B2i199211-199305

GRAY,TRIM2#

main71065-2B050-B4i199305-199402

GRAY,TRIM2#

main71065-2B050-J2i199211-199305

DK.BLUE,TRIM8#

main71065-2B050-J3i199305-199402

DK. BLUE,TRIM8#

main71065-2B051-J8i199407-199601

SELECT FABRIC-*99,DK.BLUE,TRIM8#

main71065-2B051-P0i199402-199601

SHADOW GRAY,TRIM1#

main71065-2B060-C4i199211-199305

W(SPORTS SEAT),BLACK,TRIM2#

main71065-2B060-C5i199305-199402

W(SPORTS SEAT),BLACK,TRIM2#

main71065-2B060-C9i199402-199601

W(SPORTS SEAT),BLACK,TRIM1#

main71065-2B300-J2i199303-199305

DK.BLUE,TRIM8#

71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71076-20060-B0i199305-199402

GRAY,TRIM2#

main71076-20060-B2i199211-199305

GRAY,TRIM2#

main71076-20060-J2i199211-199303

DK.BLUE,TRIM8#

main71076-20060-J3i199307-199402

DK.BLUE,TRIM8#

main71076-20061-B3i199407-199601

SHADOW GRAY,TRIM1#

main71076-20061-J5i199402-199601

DK.BLUE,TRIM8#

main71076-20070-B2i199211-199305

GRAY,TRIM2#

main71076-20070-B4i199305-199402

GRAY,TRIM2#

main71076-20070-J2i199211-199305

DK.BLUE,TRIM8#

main71076-20070-J3i199305-199402

DK. BLUE,TRIM8#

main71076-20071-J8i199407-199601

SELECT FABRIC-*99,DK.BLUE,TRIM8#

main71076-20071-P0i199402-199601

SHADOW GRAY,TRIM1#

main71076-20080-20i199402-199601

W(SPORTS SEAT),BLACK,TRIM1#

main71076-20080-C4i199211-199305

W(SPORTS SEAT),BLACK,TRIM2#

main71076-20080-C5i199305-199402

W(SPORTS SEAT),BLACK,TRIM2#

main71076-20110-J2i199303-199305

DK.BLUE,TRIM8#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-2D870-C2i199211-199305

W(SPORTS SEAT),BLACK,TRIM2#

main71077-2D870-C3i199305-199402

W(SPORTS SEAT),BLACK,TRIM2#

main71077-2D870-C5i199402-199601

W(SPORTS SEAT),BLACK,TRIM1#

main71077-2G010-B2i199211-199305

GRAY,TRIM2#

main71077-2G010-B4i199305-199402

GRAY,TRIM2#

main71077-2G010-J1i199211-199305

DK.BLUE,TRIM8#

main71077-2G010-J2i199305-199402

DK. BLUE,TRIM8#

main71077-2G011-J6i199407-199601

SELECT FABRIC-*99,DK.BLUE,TRIM8#

main71077-2G011-P0i199402-199601

SHADOW GRAY,TRIM1#

main71077-2G040-B0i199305-199402

GRAY,TRIM2#

main71077-2G040-B1i199211-199305

GRAY,TRIM2#

main71077-2G040-J1i199211-199303

DK.BLUE,TRIM8#

main71077-2G040-J2i199305-199307

DK.BLUE,TRIM8#

main71077-2G041-B2i199402-199601

SHADOW GRAY,TRIM1#

main71077-2G041-J4i199402-199601

DK.BLUE,TRIM8#

main71077-2G190-J2i199303-199305

DK.BLUE,TRIM8#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-2B020-B2i199211-199305

GRAY,TRIM2#

main71078-2B020-B4i199305-199402

GRAY,TRIM2#

main71078-2B020-J1i199211-199305

DK.BLUE,TRIM8#

main71078-2B020-J2i199305-199402

DK. BLUE,TRIM8#

main71078-2B021-J6i199407-199601

SELECT FABRIC-*99,DK.BLUE,TRIM8#

main71078-2B021-P0i199407-199601

SELECT FABRIC-*99,SHADOW GRAY,TRIM1#

main71078-2B040-B0i199305-199402

GRAY,TRIM2#

main71078-2B040-B1i199211-199305

GRAY,TRIM2#

main71078-2B040-J1i199211-199303

DK.BLUE,TRIM8#

main71078-2B040-J2i199305-199402

DK.BLUE,TRIM8#

main71078-2B041-B2i199402-199601

SHADOW GRAY,TRIM1#

main71078-2B041-J4i199402-199601

DK.BLUE,TRIM8#

main71078-2B050-C2i199211-199305

W(SPORTS SEAT),BLACK,TRIM2#

main71078-2B050-C3i199305-199402

W(SPORTS SEAT),BLACK,TRIM2#

main71078-2B050-C5i199402-199601

W(SPORTS SEAT),BLACK,TRIM1#

main71078-2B160-J2i199303-199305

DK.BLUE,TRIM8#

71301DHINGE SUB-ASSY, REAR SEAT, RH

main71301-20060i199211-199601

RH

main71302-20010i199211-199601

LH

71302DHINGE SUB-ASSY, REAR SEAT, LH

main71301-20060i199211-199601

RH

main71302-20010i199211-199601

LH

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-20100i199211-199601

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-20090i199211-199601

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-20150i199211-199601

71370DHOLDER ASSY, REAR SEAT CUSHION, RH

main71370-20040-C1i199211-199304

BLACK,TRIM2#,8#

main71370-20050-C0i199402-199601

BLACK,TRIM1#,8#

main71370-20050-C1i199304-199402

BLACK,TRIM2#,8#

71370EHOLDER ASSY, REAR SEAT CUSHION, LH

main71370-20040-C1i199211-199304

BLACK,TRIM2#,8#

main71370-20050-C0i199402-199601

BLACK,TRIM1#,8#

main71370-20050-C1i199304-199402

BLACK,TRIM2#,8#

71460SCUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

main71560-2B200-C0i199305-199402

BLACK,TRIM2#

main71560-2B200-C2i199211-199305

BLACK,TRIM2#

main71560-2B200-J0i199305-199402

DK.BLUE,TRIM8#

main71560-2B200-J2i199211-199305

DK. BLUE,TRIM8#

main71560-2B201-B1i199407-199411

SHADOW GRAY,TRIM1#

main71560-2B201-J2i199411-199601

DK. BLUE

main71560-2B202-B0i199411-199601

SHADOW GRAY,TRIM1#

main71560-2B202-J0i199411-199601

DK.BLUE,TRIM8#

main71560-2B210-C3i199211-199305

BLACK,TRIM2#

main71560-2B210-C5i199308-199402

BLACK,TRIM2#

main71560-2B210-C6i199305-199308

BLACK,TRIM2#

main71560-2B210-J2i199211-199305

DK. BLUE,TRIM8#

main71560-2B210-J3i199308-199402

DK.BLUE,TRIM8#

main71560-2B210-J4i199305-199308

DK. BLUE,TRIM8#

main71560-2B211-B0i199402-199411

SHADOW GRAY,TRIM1#

main71560-2B211-J0i199411-199601

DK.BLUE

main71560-2B212-B0i199411-199601

SELECT FABRIC-*99,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#

main71560-2B212-J0i199411-199601

DK.BLUE,TRIM8#; SELECT FABRIC-*99,DK.BLUE,TRIM8#

main71560-2B220-B0i199411-199601

W(SPORTS SEAT),SHADOW GRAY

main71560-2B220-C3i199211-199305

W(SPORTS SEAT),BLACK,TRIM2#

main71560-2B220-C4i199305-199402

W(SPORTS SEAT),BLACK,TRIM2#

main71560-2B221-B0i199411-199601

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

71470SCUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71470-20020-C0i199305-199402

BLACK,TRIM2#

main71470-20020-C2i199211-199305

BLACK,TRIM2#

main71470-20020-J0i199305-199402

DK.BLUE,TRIM8#

main71470-20020-J2i199211-199305

DK. BLUE,TRIM8#

main71470-20021-B0i199411-199601

SHADOW GRAY

main71470-20021-J0i199411-199601

DK.BLUE

main71470-20022-B0i199411-199601

SHADOW GRAY,TRIM1#

main71470-20022-J0i199411-199601

DK.BLUE,TRIM8#

main71470-20040-C3i199211-199305

BLACK,TRIM2#

main71470-20040-C5i199305-199402

BLACK,TRIM2#

main71470-20040-C6i199305-199308

BLACK,TRIM2#

main71470-20040-J2i199211-199305

DK. BLUE,TRIM8#

main71470-20040-J3i199305-199402

DK.BLUE,TRIM8#

main71470-20040-J4i199305-199308

DK. BLUE,TRIM8#

main71470-20041-B0i199402-199411

SHADOW GRAY,TRIM1#

main71470-20041-J0i199407-199411

SELECT FABRIC-*99,DK.BLUE,TRIM8#

main71470-20042-B0i199411-199601

SELECT FABRIC-*99,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#

main71470-20042-J0i199411-199601

DK.BLUE,TRIM8#; SELECT FABRIC-*99,DK.BLUE,TRIM8#

main71470-20070-B0i199411-199601

W(SPORTS SEAT),SHADOW GRAY

main71470-20070-C2i199211-199305

W(SPORTS SEAT),BLACK,TRIM2#

main71470-20070-C3i199305-199402

W(SPORTS SEAT),BLACK,TRIM2#

main71470-20071-B0i199411-199601

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-21340-C1i199211-199402

BLACK,TRIM2#

main71480-21340-J1i199211-199402

DK. BLUE,TRIM8#

main71480-21341-B0i199402-199411

SHADOW GRAY,TRIM1#

main71480-21341-J1i199407-199411

DK. BLUE,TRIM8#

main71480-21342-B0i199411-199601

SHADOW GRAY,TRIM1#

main71480-21342-J1i199411-199601

DK. BLUE,TRIM8#

main71480-21350-C1i199211-199402

BLACK,TRIM2#

main71480-21350-J1i199211-199402

DK. BLUE,TRIM8#

main71480-21351-B0i199407-199411

SELECT FABRIC-*99,SHADOW GRAY,TRIM1#

main71480-21351-J2i199407-199411

SELECT FABRIC-*99,DK. BLUE,TRIM8#

main71480-21352-B0i199411-199601

SELECT FABRIC-*99,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#

main71480-21352-J2i199411-199601

DK. BLUE,TRIM8#; SELECT FABRIC-*99,DK. BLUE,TRIM8#

main71480-21360-B0i199402-199411

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71480-21360-C1i199211-199402

W(SPORTS SEAT),BLACK,TRIM2#

main71480-21361-B0i199411-199601

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-21060-C1i199211-199402

BLACK,TRIM2#

main71490-21060-J1i199211-199402

DK. BLUE,TRIM8#

main71490-21061-B0i199407-199411

SHADOW GRAY,TRIM1#

main71490-21061-J1i199407-199411

DK. BLUE,TRIM8#

main71490-21062-B0i199411-199601

SHADOW GRAY,TRIM1#

main71490-21062-J1i199411-199601

DK. BLUE,TRIM8#

main71490-21070-C1i199211-199402

BLACK,TRIM2#

main71490-21070-J1i199211-199402

DK. BLUE,TRIM8#

main71490-21071-B0i199407-199411

SELECT FABRIC-*99,SHADOW GRAY,TRIM1#

main71490-21071-J2i199407-199411

SELECT FABRIC-*99,DK. BLUE,TRIM8#

main71490-21072-B0i199411-199601

SELECT FABRIC-*99,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#

main71490-21072-J2i199411-199601

DK. BLUE,TRIM8#; SELECT FABRIC-*99,DK. BLUE,TRIM8#

main71490-21080-B0i199402-199411

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71490-21080-C1i199211-199402

W(SPORTS SEAT),BLACK,TRIM2#

main71490-21081-B0i199411-199601

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-20220-C3i199211-199402

BLACK,TRIM2#

main71540-20220-J4i199211-199402

DK. BLUE,TRIM8#

main71540-20221-B4i199402-199601

SHADOW GRAY,TRIM1#

main71540-20221-J6i199402-199601

DK. BLUE,TRIM8#

main71540-20230-20i199211-199304

BLACK,TRIM2#

main71540-20230-J3i199211-199304

DK. BLUE,TRIM8#

main71540-21010-B9i199402-199601

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71540-21010-C1i199304-199402

BLACK,TRIM2#

main71540-21010-J1i199308-199405

DK.BLUE,TRIM8#

main71540-21010-J2i199304-199305

DK.BLUE,TRIM8#

main71540-21010-J3i199305-199308

DK. BLUE,TRIM8#

main71540-21010-J4i199402-199601

DK. BLUE,TRIM8#

main71540-21010-P0i199402-199601

SHADOW GRAY,TRIM1#

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-20220-C3i199211-199402

BLACK,TRIM2#

main71550-20220-J4i199211-199402

DK. BLUE,TRIM8#

main71550-20221-B4i199402-199601

SHADOW GRAY,TRIM1#

main71550-20221-J6i199402-199601

DK. BLUE,TRIM8#

main71550-20230-20i199211-199304

BLACK,TRIM2#

main71550-20230-J3i199211-199304

DK. BLUE,TRIM8#

main71550-21010-B9i199402-199601

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71550-21010-C1i199304-199402

BLACK,TRIM2#

main71550-21010-J2i199304-199305

DK.BLUE,TRIM8#

main71550-21010-J4i199407-199601

SELECT FABRIC-*99,DK. BLUE,TRIM8#

main71550-21010-P0i199407-199601

SELECT FABRIC-*99,SHADOW GRAY,TRIM1#

71611APAD, REAR SEAT CUSHION, RH

main71611-20560i199211-199601

71612APAD, REAR SEAT CUSHION, LH

main71612-20200i199211-199601

71629COVER, REAR SEAT CUSHION HINGE

main71629-20010-B0×4i199402-199601

SHADOW GRAY,TRIM1#

main71629-20010-C0×4i199211-199402

BLACK,TRIM2#

main71629-20010-J0×4i199211-199601

DK.BLUE,TRIM8#

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-20690i199211-199601

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-20390i199211-199601

main71652-20440i199407-199601

SELECT FABRIC-*99

71931ASUPPORT, REAR SEAT HEADREST

main71930-10070-22×2i199211-199402

W(LOCK),BLACK,TRIM2#

main71930-10070-J0×2i199211-199411

W(LOCK),DARK BLUE,TRIM8#

main71930-10070-P0×2i199402-199411

W(LOCK),SHADOW GRAY,TRIM1#

main71930-32020-B0×2i199411-199601

W(LOCK),SHADOW GRAY,TRIM1#

main71930-32020-J0×2i199411-199601

W(LOCK),DK.BLUE,TRIM8#

main71931-10020-J0×2i199211-199411

W/O(LOCK),DARK BLUE,TRIM8#

main71931-10020-P0×2i199402-199411

W/O(LOCK),SHADOW GRAY,TRIM1#

main71931-32020-B0×2i199411-199601

W/O(LOCK),SHADOW GRAY,TRIM1#

main71931-32020-J0×2i199411-199601

W/O(LOCK),DK.BLUE,TRIM8#

71940AHEADREST ASSY, REAR SEAT

main71940-20270-B0×2i199211-199402

GRAY,TRIM2#

main71940-20270-J0×2i199211-199402

DK.BLUE,TRIM8#

main71940-20271-B2×2i199402-199411

SHADOW GRAY,TRIM1#

main71940-20271-J3×2i199402-199411

DK. BLUE,TRIM8#

main71940-20300-B2×2i199211-199304

GRAY,TRIM2#

main71940-20300-C0×2i199211-199304

BLACK,TRIM2#

main71940-20300-J1×2i199211-199304

BLUE,TRIM8#

main71940-20330-B0×2i199411-199601

SHADOW GRAY,TRIM1#

main71940-20330-J0×2i199411-199601

DK. BLUE,TRIM8#

main71940-20340-B0×2i199411-199601

GRAY,TRIM1#; SELECT FABRIC-*99,GRAY,TRIM1#

main71940-20340-B1×2i199411-199601

DK. GRAY,TRIM1#

main71940-20340-J0×2i199411-199601

DK. BLUE,TRIM8#; SELECT FABRIC-*99,DK. BLUE,TRIM8#

main71940-21030-B0×2i199304-199306

GRAY,TRIM2#

main71940-21030-C0×2i199304-199306

BLACK,TRIM2#

main71940-21030-J1×2i199304-199306

DK.BLUE,TRIM8#

main71940-21031-B2×2i199306-199402

GRAY,TRIM2#

main71940-21031-B4×2i199402-199411

SHADOW GRAY,TRIM1#

main71940-21031-B6×2i199402-199411

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main71940-21031-C1×2i199306-199402

BLACK,TRIM2#

main71940-21031-J0×2i199306-199402

DK. BLUE,TRIM8#

main71940-21031-J2×2i199407-199411

SELECT FABRIC-*99,DK.BLUE,TRIM8#

72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK

main72601-16060×2i199211-199304

main72601-20080×2i199304-199601

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-21010i199211-199601

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-21010i199211-199601

72646AGROMMET, REAR SEATBACK STOP BUTTON

main72646-20070-B0i199402-199601

SHADOW GRAY,TRIM1#

main72646-20070-C0i199211-199402

BLACK,TRIM2#

main72646-20070-J0i199211-199601

DK.BLUE,TRIM8#

72646BGROMMET, REAR SEATBACK STOP BUTTON

main72646-20070-B0i199402-199601

SHADOW GRAY,TRIM1#

main72646-20070-C0i199211-199402

BLACK,TRIM2#

main72646-20070-J0i199211-199601

DK.BLUE,TRIM8#

72656BBUTTON, REAR SEATBACK STOP RELEASE

main72661-20020-B2i199402-199601

SHADOW GRAY,TRIM1#

main72661-20020-C0i199211-199402

BLACK,TRIM2#

main72661-20020-J0i199211-199601

DK.BLUE,TRIM8#

72656CBUTTON, REAR SEATBACK STOP RELEASE

main72661-20020-B2i199402-199601

SHADOW GRAY,TRIM1#

main72661-20020-C0i199211-199402

BLACK,TRIM2#

main72661-20020-J0i199211-199601

DK.BLUE,TRIM8#

72660ASUPPORT ASSY, REAR SEAT CUSHION

main72660-20030-C0i199402-199411

BLACK,TRIM1#,8#

72660DSUPPORT ASSY, REAR SEAT CUSHION

main72660-20030-C0i199211-199402

BLACK,TRIM2#,8#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-20450-B2i199211-199402

GRAY,TRIM2#

main72830-20450-B5i199402-199407

SHADOW GRAY,TRIM1#

main72830-20450-B7i199402-199601

W(SPORTS SEAT),SHADOW GRAY,TRIM1#

main72830-20450-C0i199211-199402

BLACK,TRIM2#

main72830-20450-J1i199211-199402

BLUE,TRIM8#

main72830-20450-J2i199402-199407

DK. BLUE,TRIM8#

72868COVER, CENTER ARMREST HINGE, RH

main72868-20020-B0i199402-199407

SHADOW GRAY,TRIM1#

main72868-20020-C0i199211-199402

BLACK,TRIM2#

main72868-20020-J0i199211-199407

DK.BLUE,TRIM8#

9008046007

main90080-46007

9010508102

main90105-08102

9011908160

main90119-08160

9011908536

main90119-08536

9015960167

main90159-60167

9017906129

main90179-06129

9046818071

main90468-18071

9151160814

main91511-60814

9151160818

main91511-60818

9152160814

main91521-60814

9161160818

main91611-60818

9165160816

main91651-60816

9165160818

main91651-60818

9165160820

main91651-60820

REAR SEAT & SEAT TRACK
