BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21040iAT19#,CT190,ST191..JPP199211-199601

68820BHINGE ASSY, BACK DOOR, LH

main68810-21040iAT19#,CT190,ST191..JPP199211-199601

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-21010iAT190,CT190,ST191..JPP199211-199302

sub68947-21011

main68947-21011iAT19#,CT190,ST191..JPP199302-199601

68950CSTAY ASSY, BACK DOOR, RH

main68950-80023iAT190,CT190,ST191..JPP199211-199302

sub68950-80039

main68950-80039iAT19#,CT190,ST191..JPP199302-199601

sub68950-80063

68960STAY ASSY, BACK DOOR, LH

main68960-29885iAT190,CT190,ST191..JPP199211-199302

sub68960-29886

main68960-29886iAT19#,CT190,ST191..JPP199302-199601

sub68960-80015

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-21020iAT19#,CT190,ST191..JPP199211-199601

69211CHANDLE, BACK DOOR OUTSIDE

main69023-21010iAT19#,CT190,ST191..JPP199211-199601

69350LOCK ASSY, BACK DOOR

main69350-21030iAT190..JPP..RHD199211-199601

W(MANUAL BACK DOOR LOCK)

main69350-21040iAT190,CT190..JPP..LHD..XL199211-199601

W(BACK DOOR OPENER)

main69350-21040iAT190,CT190..JPP..LHD..XL199501-199601

W(POWER BACK DOOR LOCK)

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-13010iAT19#,CT190,ST191..JPP199211-199601

9010506184

main90105-06184

9010506204

main90105-06204

9010508251

main90105-08251

9011906545

main90119-06545

9015480020

main90154-80020

9015980050

main90159-80050

9017906070

main90179-06070

9017908096

main90179-08096

9165160616

main91651-60616

9351014010

main93510-14010

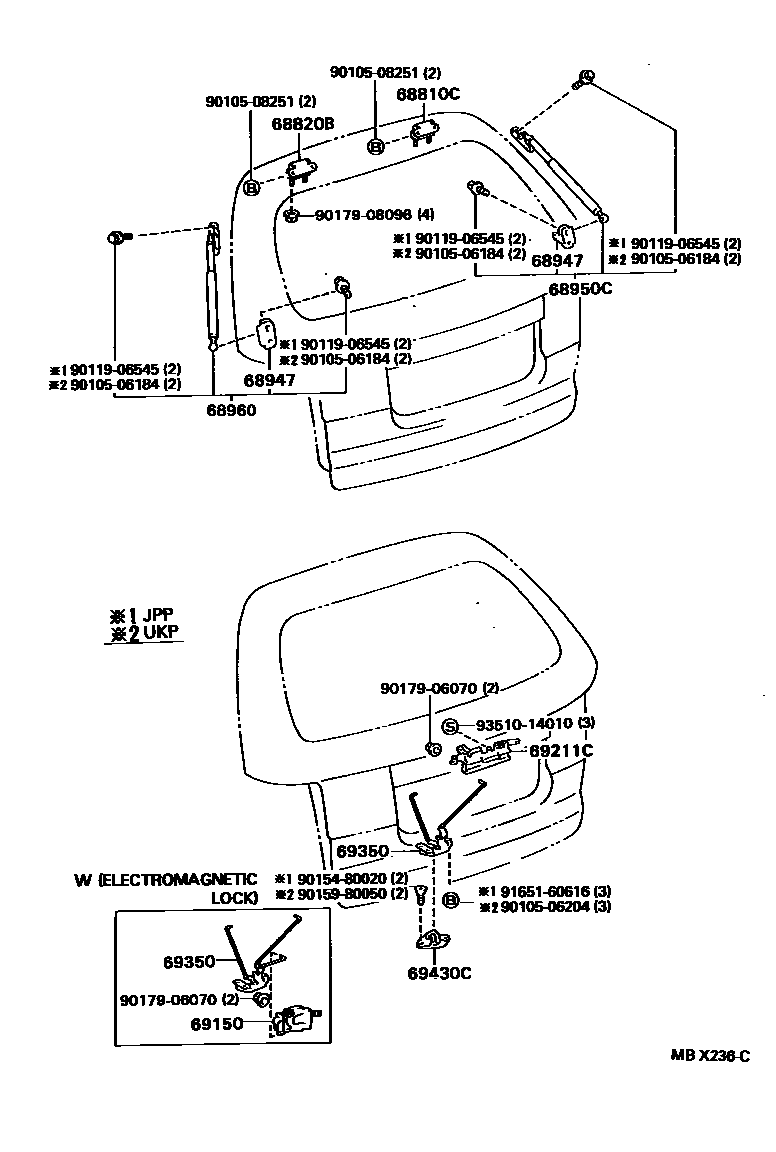

19 parts on this diagram · 1 diagram in section
