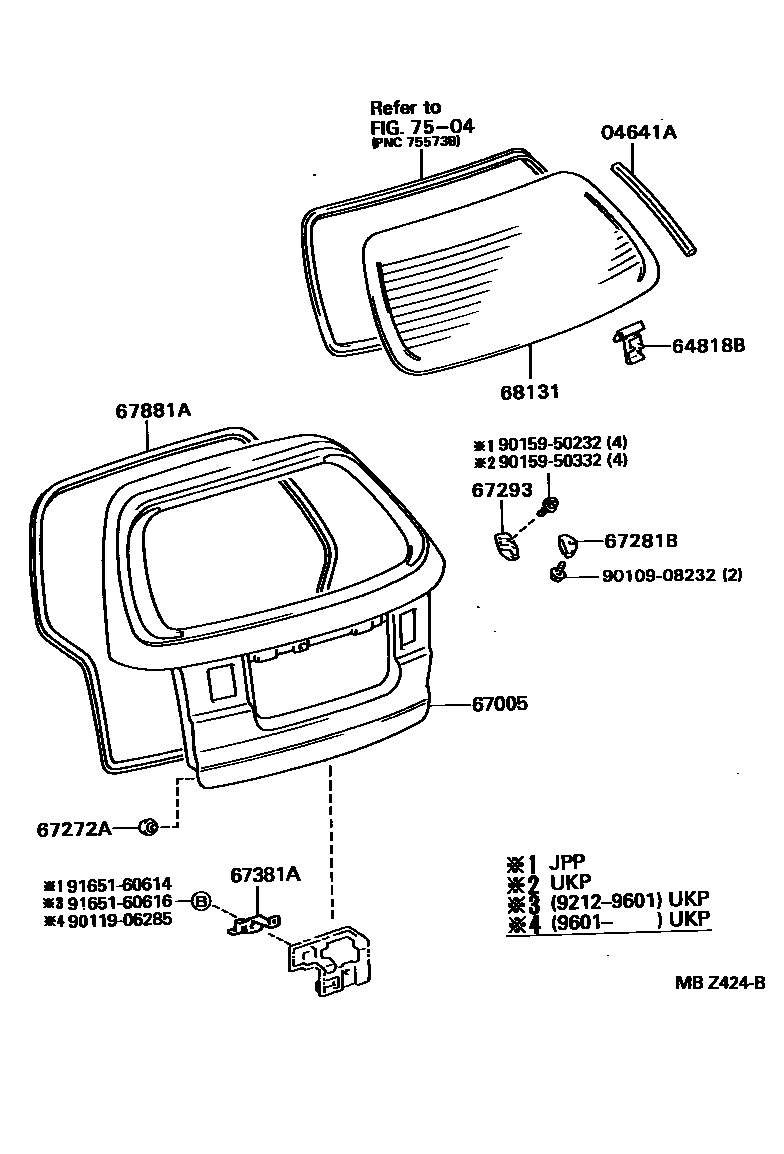

BACK DOOR PANEL & GLASS

0001 1 0002 1

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main68294-21010iAT19#,CT190,ST191..JPP199211-199601

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-21010×2iAT19#,CT190,ST191..JPP199211-199601

67005PANEL SUB-ASSY, BACK DOOR

main67005-21570iAT190,CT190,ST191..JPP199211-199305

sub67005-21590

sub90333-20001

sub90333-25001

main67005-21571iAT190,CT190,ST191..JPP199305-199306

67272ACUSHION, BACK DOOR STOPPER, NO.2

main67272-21010×2iAT19#,CT190,ST191..JPP199211-199601

67281BSTOPPER, BACK DOOR, LOWER

main67281-21010×2iAT19#,CT190,ST191..JPP199211-199601

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-21010×2iAT19#,CT190,ST191..JPP199211-199601

67381ABRACKET, BACK WINDOW WIPER MOTOR, NO.1

main67381-21010iAT19#,CT190,ST191..JPP199211-199601

67881AWEATHERSTRIP, BACK DOOR

main67881-21020iAT19#,CT190,ST191..JPP199211-199601

68131GLASS, BACK DOOR

main68105-21060iAT19#,CT190,ST191..JPP199211-199601

*TT,T=3.5

sub68105-21051

7504

9010908232

main90109-08232

9011906285

main90119-06285

9015950232

main90159-50232

9015950332

main90159-50332

9165160614

main91651-60614

9165160616

main91651-60616

16 parts on this diagram · 2 diagrams in section
