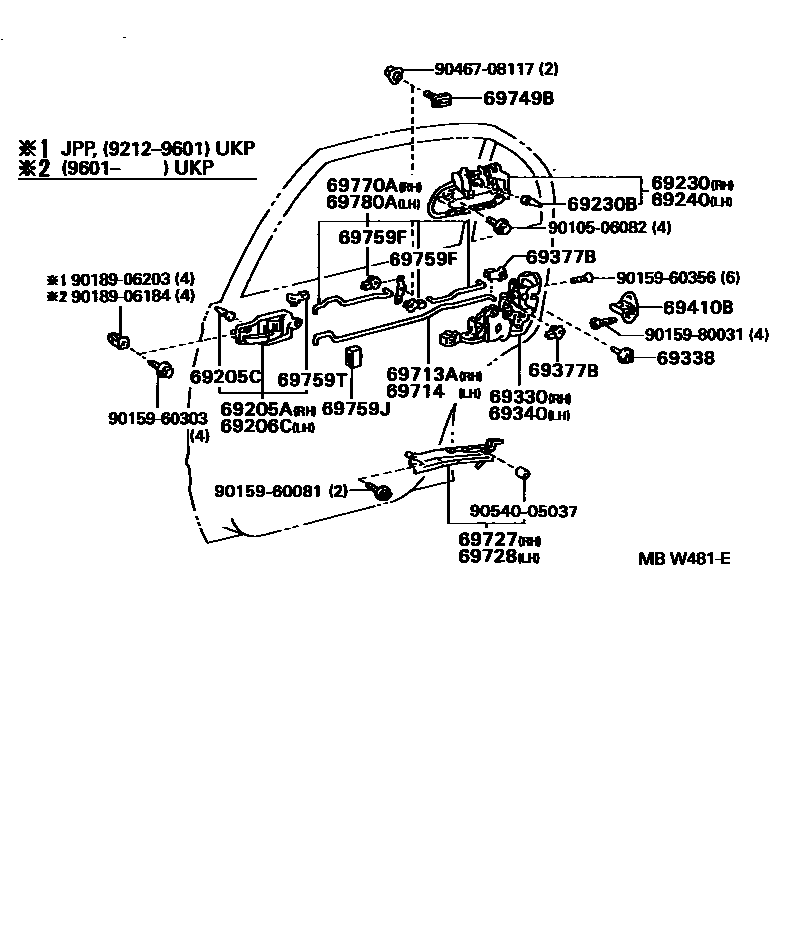

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
COLORED,SUPER WHITE 2,040
COLORED,DARK BLUEISH GRAY ME,183
COLORED,LT.GRAIGE ME,1A2
COLORED,SUPER RED 3,3J6
COLORED,DARK WINE MICA M,3K1
COLORED,MAGENTA MC,3L3
COLORED,LIGHT BEIGE ME,4M3
COLORED,DK.GRAYISH OLIVE ME,6M7
COLORED,DARK TORQUOISE MICA,742
COLORED,LIGHT BLUE MICA ME,8G2
COLORED,BLUE,8H6
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
COLORED,SUPER WHITE 2,040
COLORED,DARK BLUEISH GRAY ME,183
COLORED,LT.GRAIGE ME,1A2
COLORED,SUPER RED 3,3J6
COLORED,DARK WINE MICA M,3K1
COLORED,MAGENTA MC,3L3
COLORED,LIGHT BEIGE ME,4M3
COLORED,DK.GRAYISH OLIVE ME,6M7
COLORED,DARK TORQUOISE MICA,742
COLORED,LIGHT BLUE MICA ME,8G2
COLORED,BLUE,8H6
69330LOCK ASSY, REAR DOOR, RH
W(MANUAL LOCK)
W(POWER WINDOW) OR W(ELECTROMAGNETIC LOCK)
W(POWER WINDOW)
69338KNOB, CHILD PROTECTOR LOCK LEVER
69340LOCK ASSY, REAR DOOR, LH
W(MANUAL LOCK)
W(POWER WINDOW)
W(POWER WINDOW) OR W(ELECTROMAGNETIC LOCK)
69377BSNAP, REAR DOOR LOCK CONTROL ROD
LH
RH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69749BCLAMP, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
BLACK
RED
69759JSILENCER, DOOR LOCK LINK
50 X 30
60 X 40
69759TSNAP, REAR DOOR INSIDE HANDLE
RH
LH
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
9010506082
main90105-06082
9015960081
main90159-60081
9015960303
main90159-60303
9015960356
main90159-60356
9015980031
main90159-80031
9018906184
main90189-06184
9018906203
main90189-06203
9046708117
main90467-08117
9054005037
main90540-05037
30 parts on this diagram · 1 diagram in section
