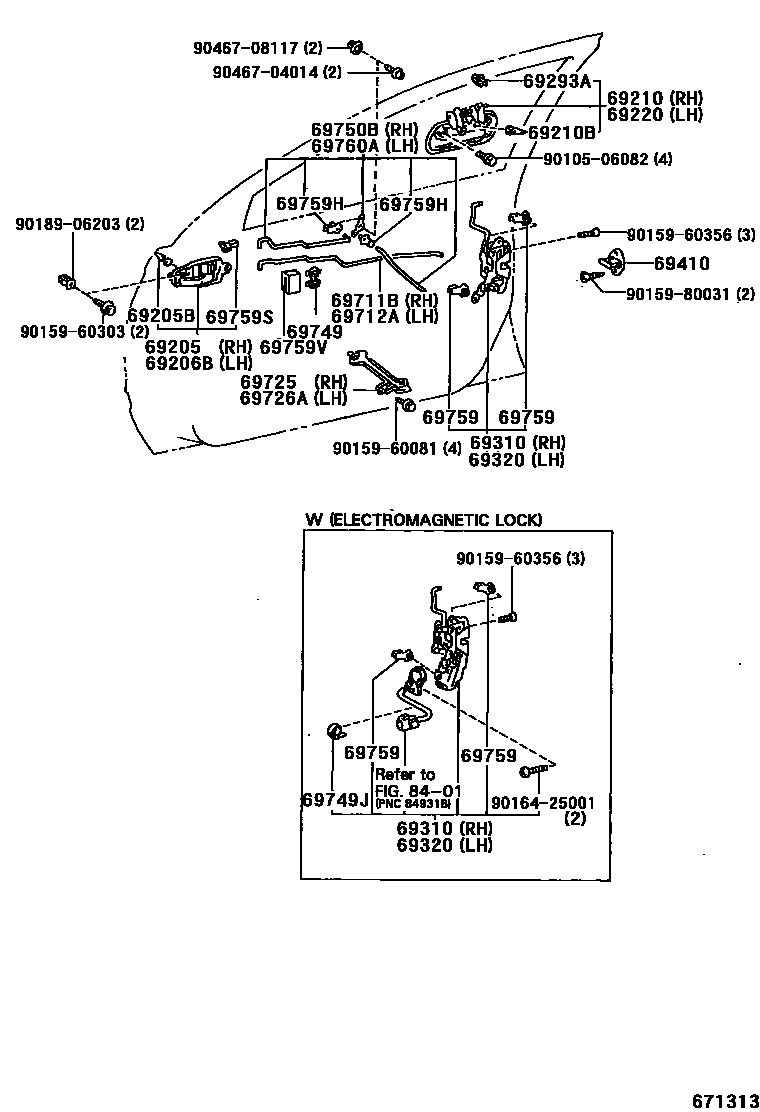

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
COLORED,SUPER WHITE 2,040
COLORED,DARK BLUEISH GRAY ME,183
COLORED,LT.GRAIGE ME,1A2
COLORED,SUPER RED 3,3J6
COLORED,DARK WINE MICA M,3K1
COLORED,MAGENTA MC,3L3
COLORED,LIGHT BEIGE ME,4M3
COLORED,DK.GRAYISH OLIVE ME,6M7
COLORED,DARK TORQUOISE MICA,742
COLORED,LIGHT BLUE MICA ME,8G2
COLORED,BLUE,8H6
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
BLACK
COLORED,SUPER WHITE 2,040
COLORED,DARK BLUEISH GRAY ME,183
COLORED,LT.GRAIGE ME,1A2
COLORED,SUPER RED 3,3J6
COLORED,DARK WINE MICA M,3K1
COLORED,MAGENTA MC,3L3
COLORED,LIGHT BEIGE ME,4M3
COLORED,DK.GRAYISH OLIVE ME,6M7
COLORED,DARK TORQUOISE MICA,742
COLORED,LIGHT BLUE MICA ME,8G2
COLORED,BLUE,8H6
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH,NATURAL
LH,YELLOW
69310LOCK ASSY, FRONT DOOR, RH
W(POWER WINDOW) OR W(ELECTROMAGNETIC LOCK)
W(POWER WINDOW)
W(ELECTROMAGNETIC LOCK)
W(POWER WINDOW)
W(MANUAL LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER WINDOW)
IRELAND SPEC & W(POWER WINDOW)
W(ELECTROMAGNETIC LOCK)
W(ELECTROMAGNETIC LOCK)
W(POWER WINDOW)
W(MANUAL LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69749CLAMP, FRONT DOOR LOCK LINK
69749JCLAMP, FRONT DOOR LOCK
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
LH,NATURAL
RH,BLUE
LH,GREEN
RH,GRAY
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
BLACK
RED
69759SSNAP, FRONT DOOR INSIDE HANDLE
RH,PINK
LH,YELLOW
69759VSILENCER, FRONT DOOR LOCK LINK
50 X 30
50 X 40
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
9010506082
main90105-06082
9015960081
main90159-60081
9015960303
main90159-60303
9015960356
main90159-60356
9015980031
main90159-80031
9016425001
main90164-25001
9018906203
main90189-06203
9046704014
main90467-04014
9046708117
main90467-08117
31 parts on this diagram · 1 diagram in section
