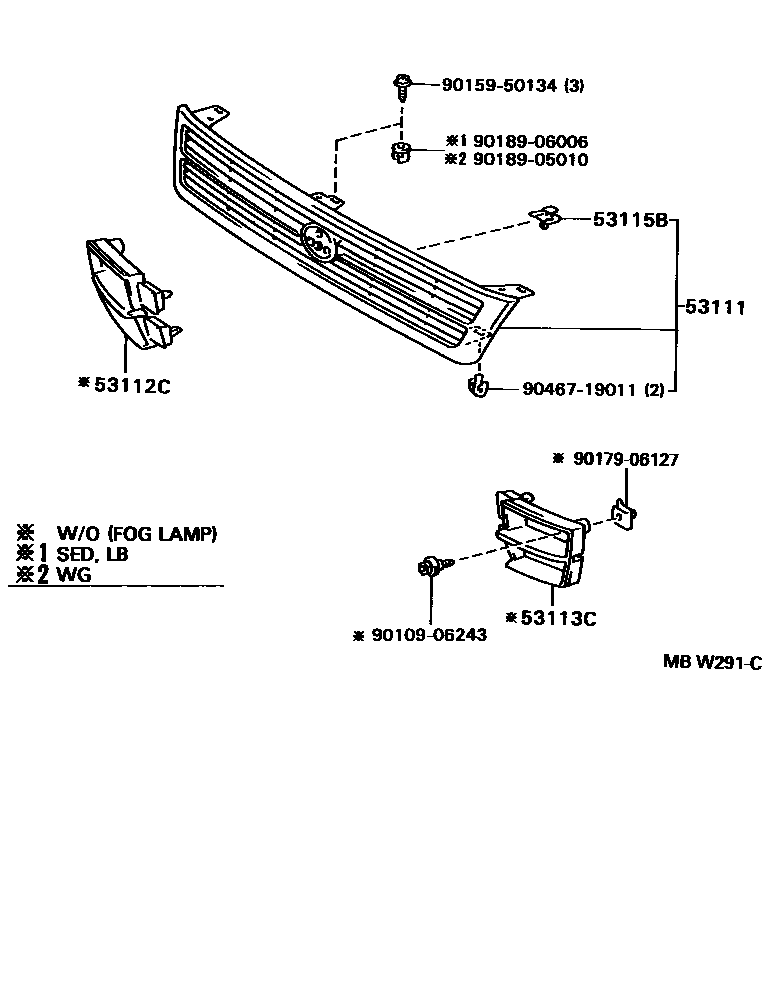

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53101-20470-A0iAT19#,CT190,ST191..JPP199211-199601

SUPER WHITE 2,040

main53101-20470-B0iAT19#,CT190,ST191..JPP199211-199601

DARK BLUEISH GRAY ME,183

main53101-20470-B1iAT19#,CT190,ST191..JPP199402-199601

LI.GRAIGE ME.,1A2

main53101-20470-D0iAT19#,CT190,ST191..JPP199211-199601

SUPER RED 3,3J6

main53101-20470-D1iAT190,CT190,ST191..JPP199211-199402

DARK WINE MICA M,3K1

main53101-20470-D2iAT19#,CT190,ST191..JPP199402-199601

MAGENTA MC.,3L3

main53101-20470-E0iAT190,CT190,ST191..JPP199211-199402

LIGHT BEIGE ME,4M3

main53101-20470-G0iAT19#,CT190,ST191..JPP199211-199601

DK.GRAYISH OLIVE ME,6M7

main53101-20470-H0iAT19#,CT190,ST191..JPP199211-199601

DARK TURQUOISE MICA,742

main53101-20470-J0iAT19#,CT190,ST191..JPP199211-199504

LIGHT BLUE MICA ME,8G2

main53101-20470-J1iAT19#,CT190,ST191..JPP199211-199504

BLUE,8H6

53112CGRILLE, RADIATOR, LOWER RH

main53112-20220iAT19#,CT190,ST191..JPP199211-199601

53113CGRILLE, RADIATOR, LOWER LH

main53113-20160iAT19#,CT190,ST191..JPP199211-199601

53115BBRACKET, RADIATOR GRILLE

main53115-16010iAT19#,CT190,ST191..JPP199211-199601

9010906243

main90109-06243

9015950134

main90159-50134

9017906127

main90179-06127

9018905010

main90189-05010

9018906006

main90189-06006

9046719011

main90467-19011

10 parts on this diagram · 1 diagram in section
