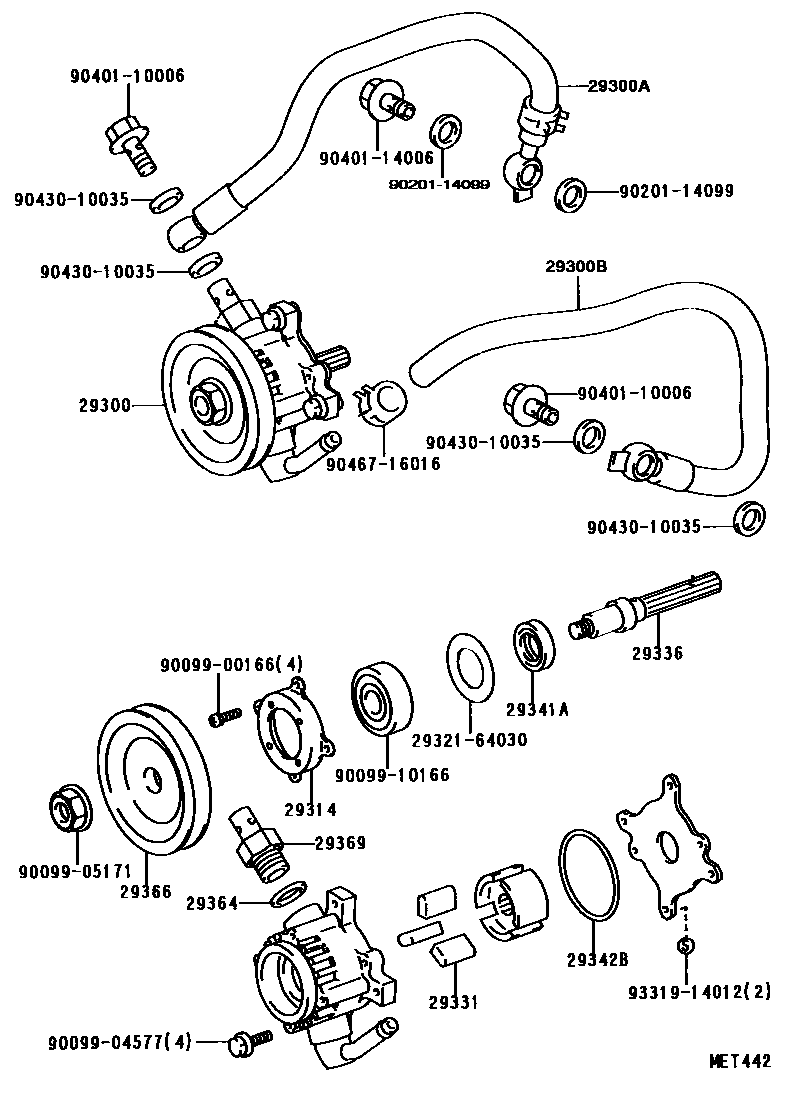

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-64100i2C..CT190..JPP199211-199601

29300AHOSE, VACUUM PUMP OIL INLET

29300BHOSE, VACUUM PUMP OIL OUTLET

29314RING, STOP

29331BLADE, VACUUM PUMP, A

29336SHAFT, VACUUM PUMP

29341ASEAL, OIL

29342BRING, O

29364WASHER, VACUUM PUMP

29366PULLEY, VACUUM PUMP

29369VALVE SUB-ASSY, CHECK

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9009910166

main90099-10166

9020114099

main90201-14099

9040110006

main90401-10006

9040114006

main90401-14006

9043010035

main90430-10035

9046716016

main90467-16016

9331914012

main93319-14012

22 parts on this diagram · 2 diagrams in section
