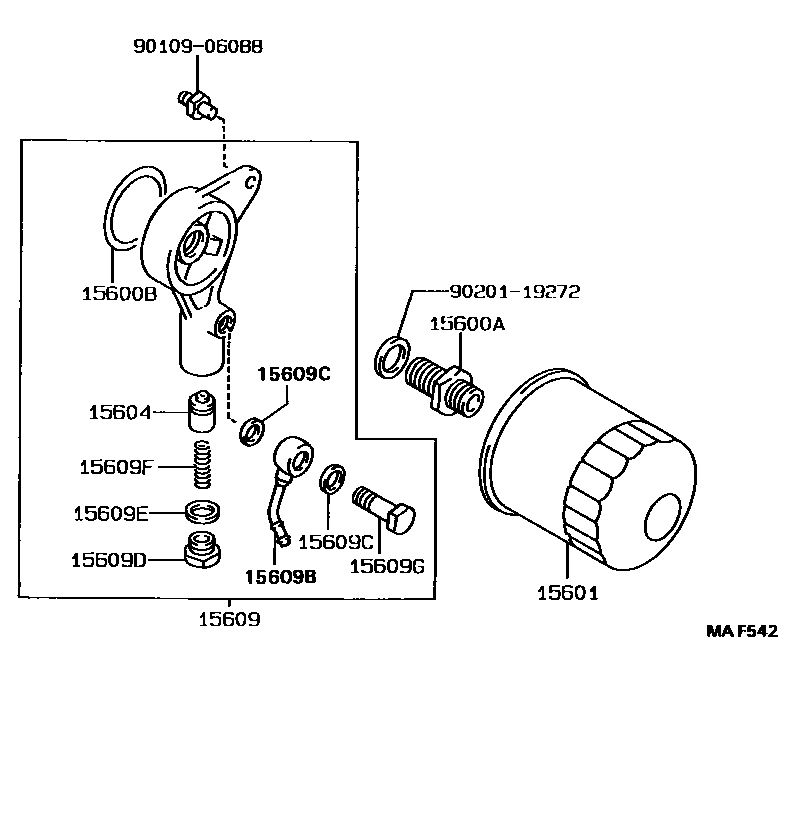

OIL FILTER

0001 1 0002 1RUSSIA SPEC 0003 1 0004 1

15600AUNION(FOR OIL FILTER)

main15116-54021i2C..CT190..JPP199211-199601

main90404-19002i3SFE..ST191..JPP..ATM199211-199601

main90405-19003i4AFE,7AFE..AT19#..JPP199211-199601

15600BRING, O, NO.1(FOR OIL FILTER)

main15188-11010i4AFE,7AFE..AT19#..JPP199211-199601

15601FILTER SUB-ASSY, OIL

main90080-91058i4AFE,7AFE..AT19#..JPP199301-199601

main90915-10001i4AFE,7AFE..AT19#..JPP199211-199601

sub90915-10003

main90915-30001i2C..CT190..JPP199211-199601

15604VALVE SUB-ASSY, OIL SAFETY

main15131-38030i4AFE,7AFE..AT19#..JPP199211-199601

15609BRACKET SUB-ASSY, OIL FILTER

main15608-64040i2C..CT190..JPP199211-199503

main15608-64041i2C..CT190..JPP199503-199601

sub15608-64042

main15670-15030i4AFE,7AFE..AT19#..JPP199211-199601

15609BUNION(FOR OIL FILTER BRACKET)

main90029-40004i4AFE,7AFE..AT19#..JPP199211-199601

15609CGASKET(FOR OIL FILTER BRACKET UNION)

main90430-14235×2i4AFE,7AFE..AT19#..JPP199211-199601

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main15133-20010i4AFE,7AFE..AT19#..JPP199211-199601

main90344-53002×5i2C..CT190..JPP199211-199601

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-20010i4AFE,7AFE..AT19#..JPP199211-199601

15609FSPRING(FOR OIL FILTER BRACKET)

main15132-21010i4AFE,7AFE..AT19#..JPP199211-199601

15609GBOLT, UNION(FOR OIL FILTER BRACKET)

main90401-14003i4AFE,7AFE..AT19#..JPP199211-199601

9010906088

main90109-06088

9020119272

main90201-19272

13 parts on this diagram · 4 diagrams in section
