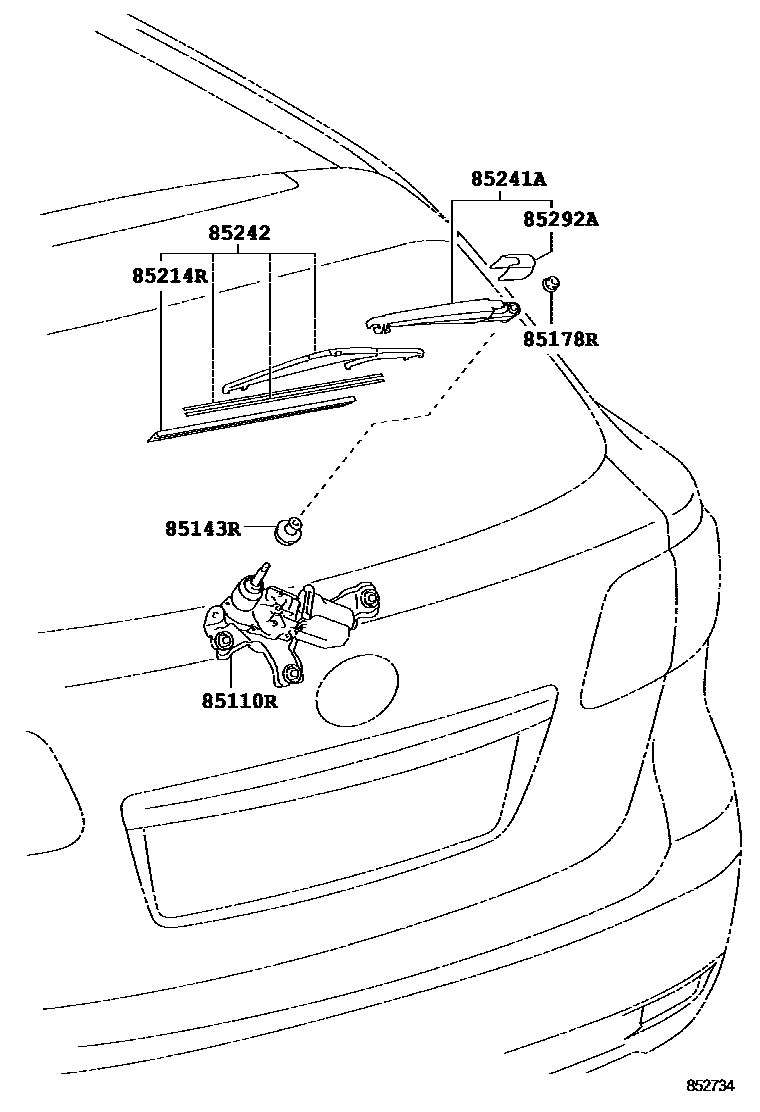

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-05060iADT27#,ZRT27#..WG200811-201505

main85130-05060iWWT27#,ZRT27#..WG201505

SIMPLE PACKAGE

85143RGROMMET, REAR WIPER MOTOR

main85143-05070iADT27#,ZRT27#..WG200811-201505

main85143-05070iWWT27#,ZRT27#..WG201505

SIMPLE PACKAGE

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iADT27#,ZRT27#..WG200811-201505

main90179-06158iWWT27#,ZRT27#..WG201505

SIMPLE PACKAGE

85214RRUBBER, REAR WIPER

main85214-05160iADT27#,ZRT27#..WG200811-201505

main85214-05160iWWT27#,ZRT27#..WG201505

SIMPLE PACKAGE

85241AARM, REAR WIPER

main85241-05100iADT27#,ZRT27#..WG200811-201505

main85241-05100iWWT27#,ZRT27#..WG201505

SIMPLE PACKAGE

85242BLADE, RR WIPER

main85242-05120iADT27#,ZRT27#..WG200811-201505

main85242-05120iWWT27#,ZRT27#..WG201505

SIMPLE PACKAGE

85292ACAP, REAR WIPER ARM HEAD

main85292-02030iADT27#,ZRT27#..WG200811-201505

main85292-02030iWWT27#,ZRT27#..WG201505

SIMPLE PACKAGE

7 parts on this diagram · 1 diagram in section
