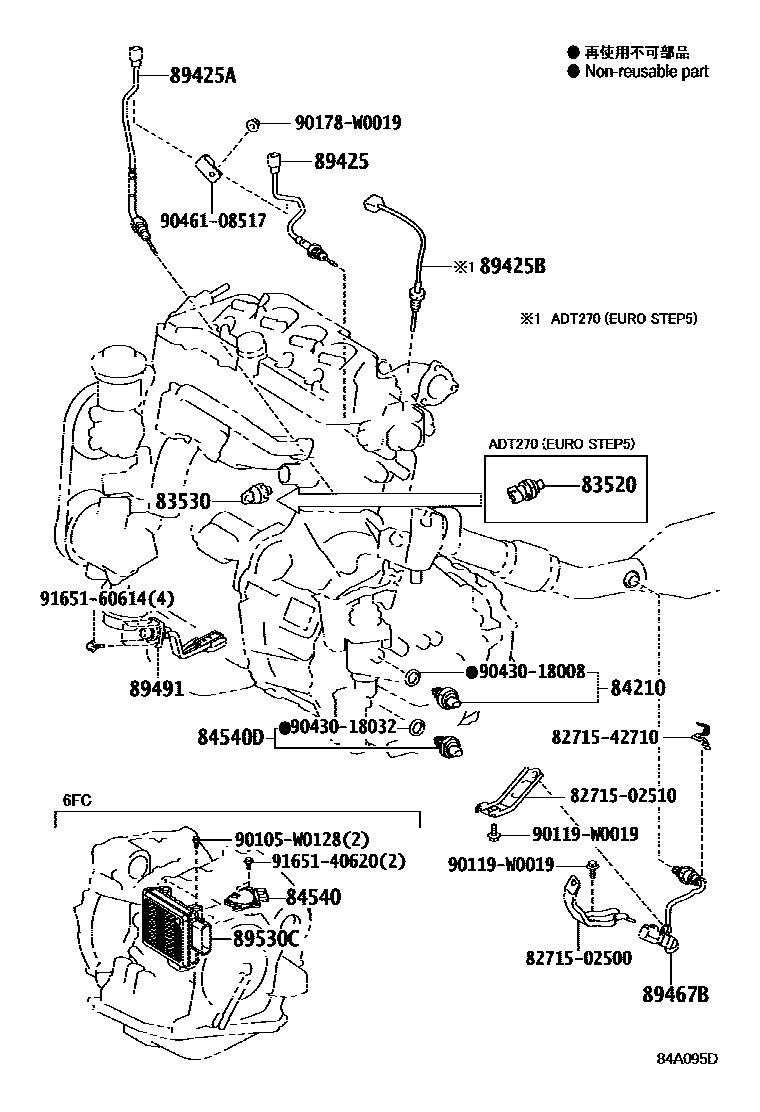

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iADT270201111-201505

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iZRT272..RHD..HTWC200811-201111

main83530-05010iZRT27#201111-201402

(L)

main83530-12050iZRT27#201310-201402

(J)

sub83530-12060

main83530-12060iZRT27#201402-201505

YAZAKI

main83530-12060iZRT27#201505

main83530-12070iZRT27#201402-201505

DENSO

sub83530-12060

main83530-28010iADT271201111-201505

EXHAUST EMISSION CONTROL-EUROPE STEP4,WITHOUT(OBD),DENSO

main83530-28010iADT270..SED200811-201505

DENSO

main83530-60010iADT271;ADT270..RHD;ADT270..LHD..(E,N)200811-201505

YAZAKI

main83530-60010iADT271201111-201505

EXHAUST EMISSION CONTROL-EUROPE STEP4,WITHOUT(OBD),YAZAKI

main83530-WA011iWWT27#201505-201804

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iZRT270,271..6F200811-201206

sub84210-52050

main84210-52050iWWT27#,ZRT270,271..6F201205-201505

84540SWITCH ASSY, NEUTRAL START

main84540-28030iZRT272..HTWVM201505

main84540-33010iADT271..6FC200902-201505

main84540-42010iZRT272..HTWC201505

main84540-42010iZRT272..HTWC201309-201505

*346

main84540-48010iZRT272..LHD..4FC200811-201111

main84540-48010iZRT272..HTWC201111-201309

*199

main84540-52070iZRT271,272..CVT200811-201505

84540DSWITCH ASSY, NEUTRAL START

main84545-20020iADT27#,ZRT27#..6F200811-201009

main84545-20021iADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC)201010-201505

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-20380iADT270..E,N200811-201111

ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD)

main89425-20380iADT27#201111-201505

main89425-YV010iWWT27#201505

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-20390iADT271200811-201111

ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD)

main89425-20390iADT27#201111-201505

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-20400iADT270201111-201505

89467BSENSOR, AIR FUEL RATIO

main89467-12030iZRT272..RHD..HTWC200811-201505

main89467-20100iADT270..E,N200811-201111

ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD)

main89467-20100iADT27#201111-201505

main89467-52060iZRT27#..HTWVM201505

main89467-YV010iWWT27#201505

89491SENSOR, ENGINE OIL LEVEL

main89491-20120iADT270..LHD..F200811-201111

main89491-20130iADT271200811-201204

sub89491-20131

main89491-20131iADT271201204-201505

main89491-20140iADT270201111-201505

89530CCOMPUTER ASSY, TRANSMISSION CONTROL

main89530-20410iADT271..6FC200902-201111

main89530-20420iADT271..6FC201111-201302

main89530-20430iADT271..6FC201302-201505

8271502500BRACKET,WIRING HARNESS CLAMP

main82715-02500

8271502510BRACKET,WIRING HARNESS CLAMP

main82715-02510

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

90105W0128

main90105-W0128

90119W0019

main90119-W0019

90178W0019

main90178-W0019

9043018008

main90430-18008

9043018032

main90430-18032

9046108517

main90461-08517

9165140620

main91651-40620

9165160614

main91651-60614

22 parts on this diagram · 24 diagrams in section
