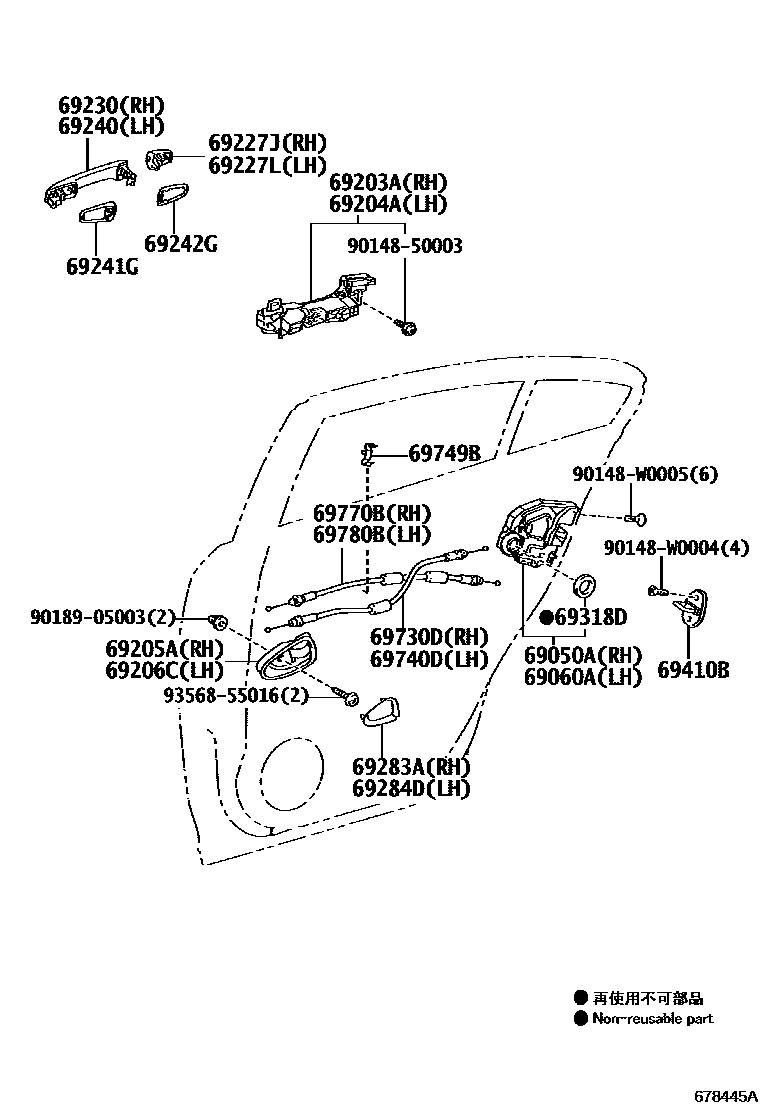

REAR DOOR LOCK & HANDLE

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02240iADT27#,ZRT27#..RHD200811-201505

main69050-05050iADT270..LHD..F200811-201501

main69050-05051iADT27#,ZRT27#..LHD201502-201505

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02230iADT27#,ZRT27#..RHD200811-201505

main69060-05050iADT27#,ZRT27#..LHD200811-201501

main69060-05051iADT27#,ZRT27#..LHD201502-201505

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-05040iADT27#,ZRT27#200811-200904

sub69203-05042

main69203-05042iADT270..LHD..F;ZRT272..RHD..HTWC200905-201505

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-05040iADT27#,ZRT27#200811-200904

sub69204-05042

main69204-05042iADT270..LHD..F;ZRT272..RHD..HTWC200905-201505

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-05050-C0iADT27#,ZRT27#200811-200912

BLACK,TRIM2#

sub69205-05051

main69205-05050-E0iADT27#,ZRT27#..E,F,G,V200811-200912

GREGE,TRIM4#

sub69205-05051

main69205-05051-B0iZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G201111-201505

LT.GRAY,TRIM11

sub69205-05070

main69205-05051-C0iZRT270..E;ADT271,ZRT272..ATM201001-201505

BLACK,TRIM2#

sub69205-05070

main69205-05051-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM11,2#,40,41

sub69205-05070

main69205-05051-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM1#,2#,40

sub69205-05070

main69205-05051-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM10,11,2#,40,41

sub69205-05070

main69205-05051-E0iZRT272..RHD..HTWC201001-201111

GREGE,TRIM4#

sub69205-05070

main69205-05051-E0iADT27#,ZRT27#..E,G201111-201505

GREGE,TRIM40

sub69205-05070

main69205-05060-B0iWWT27#,ZRT27#..E201505-201802

LT.GRAY,TRIM10

sub69205-05061

main69205-05060-C0iZRT272..E..HTWVM201505-201802

EU BLACK,TRIM10,2#,4#

sub69205-05061

main69205-05060-C0iWWT270,ZRT270,271..N201505-201802

EU BLACK,TRIM10,4#

sub69205-05061

main69205-05060-C0iWWT270,ZRT270,271..N201505-201802

EU BLACK,TRIM2#

sub69205-05061

main69205-05060-C0iWWT270,ZRT270,271..N201505-201802

EU BLACK,TRIM1#,2#,4#

sub69205-05061

main69205-05061-B0iWWT27#,ZRT27#..E201803

LT.GRAY,TRIM10

main69205-05061-C0iWWT270,ZRT270,271..N201803

EU BLACK,TRIM1#,2#,4#

main69205-05061-C0iZRT272..E..HTWVM201803

EU BLACK,TRIM10,4#

main69205-05061-C0iZRT272..E..HTWVM201803

EU BLACK,TRIM2#

main69205-05061-C0iZRT272..E..HTWVM201803

EU BLACK,TRIM10,2#,4#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-05050-C0iADT27#,ZRT27#200811-200912

BLACK,TRIM2#

sub69206-05051

main69206-05050-E0iADT27#,ZRT27#..E,F,G,V200811-200912

GREGE,TRIM4#

sub69206-05051

main69206-05051-B0iZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G201111-201505

LT.GRAY,TRIM11

sub69206-05070

main69206-05051-C0iADT270,ZRT270,271..N201001-201505

BLACK,TRIM2#

sub69206-05070

main69206-05051-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM11,2#,40,41

sub69206-05070

main69206-05051-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM1#,2#,40

sub69206-05070

main69206-05051-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM10,11,2#,40,41

sub69206-05070

main69206-05051-E0iADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM;ADT271,ZRT272..G,V201001-201111

GREGE,TRIM4#

sub69206-05070

main69206-05051-E0iADT27#,ZRT27#..E,G201111-201505

GREGE,TRIM40

sub69206-05070

main69206-05060-B0iWWT27#,ZRT27#..E201505-201802

LT.GRAY,TRIM10

sub69206-05061

main69206-05060-C0iZRT272..HTWC;WWT27#,ZRT270,271..E201505-201802

EU BLACK,TRIM2#

sub69206-05061

main69206-05060-C0iZRT272..E..HTWVM201505-201802

EU BLACK,TRIM10,4#

sub69206-05061

main69206-05060-C0iZRT272..E..HTWVM201505-201802

EU BLACK,TRIM1#,2#,4#

sub69206-05061

main69206-05060-C0iZRT272..E..HTWVM201505-201802

EU BLACK,TRIM10,2#,4#

sub69206-05061

main69206-05061-B0iWWT27#,ZRT27#..E201803

LT.GRAY,TRIM10

main69206-05061-C0iZRT272..E..HTWVM201803

EU BLACK,TRIM10,4#

main69206-05061-C0iZRT272..E..HTWVM201803

EU BLACK,TRIM2#

main69206-05061-C0iZRT272..E..HTWVM201803

EU BLACK,TRIM1#,2#,4#

main69206-05061-C0iZRT272..E..HTWVM201803

EU BLACK,TRIM10,2#,4#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69250-05902iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

LESS COLOR

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69250-05902iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

LESS COLOR

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-05914iADT27#,ZRT27#200811-200905

PAINT REQ.

sub69211-05918

main69211-05918iADT270..LHD..F;ZRT272..RHD..HTWC200905-201505

PAINT REQ.

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-05914iADT27#,ZRT27#200811-200905

PAINT REQ.

sub69211-05918

main69211-05918iADT270..LHD..F;ZRT272..RHD..HTWC200905-201505

PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-05020-B0iZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G201111-201505

LT.GRAY,TRIM11

main69283-05020-B0iWWT27#,ZRT27#..E201505

LT.GRAY,TRIM10

main69283-05020-C0iZRT270..E;ADT271,ZRT272..ATM201111-201505

BLACK,TRIM10,11,2#,40,41

main69283-05020-C0iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

BLACK,TRIM2#

main69283-05020-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM11,2#,40,41

main69283-05020-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM1#,2#,40

main69283-05020-C1iZRT272..HTWC;WWT27#,ZRT270,271..E201505

EU BLACK,TRIM2#,4#

main69283-05020-C1iZRT272..HTWC;WWT27#,ZRT270,271..E201505

EU BLACK,TRIM2#

main69283-05020-C1iZRT272..HTWC;WWT27#,ZRT270,271..E201505

EU BLACK,TRIM1#,2#,4#

main69283-05020-C1iZRT272..HTWC;WWT27#,ZRT270,271..E201505

SOL 2 GRADE&SEAT COVER MATERIAL-FABRIC & ALCANTARA,EU BLACK,TRIM10

main69283-05020-C1iZRT272..E..HTWVM201505

EU BLACK,TRIM4#

main69283-05020-E0iADT27#,ZRT27#..E,G201111-201505

GREGE,TRIM40

main69283-05020-E0iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

GREGE,TRIM4#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-05020-B0iZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G201111-201505

LT.GRAY,TRIM11

main69284-05020-B0iWWT27#,ZRT27#..E201505

LT.GRAY,TRIM10

main69284-05020-C0iZRT270..E;ADT271,ZRT272..ATM201111-201505

BLACK,TRIM1#,2#,40

main69284-05020-C0iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

BLACK,TRIM2#

main69284-05020-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM11,2#,40,41

main69284-05020-C0iADT270,ZRT270,271..N201111-201505

BLACK,TRIM10,11,2#,40,41

main69284-05020-C1iWWT270,ZRT270,271..N201505

EU BLACK,TRIM2#

main69284-05020-C1iZRT272..HTWC;WWT27#,ZRT270,271..E201505

EU BLACK,TRIM1#,2#,4#

main69284-05020-C1iZRT272..HTWC;WWT27#,ZRT270,271..E201505

EU BLACK,TRIM2#,4#

main69284-05020-C1iZRT272..HTWC;WWT27#,ZRT270,271..E201505

SOL 2 GRADE&SEAT COVER MATERIAL-FABRIC & ALCANTARA,EU BLACK,TRIM10

main69284-05020-C1iZRT272..E..HTWVM201505

EU BLACK,TRIM4#

main69284-05020-E0iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

GREGE,TRIM4#

main69284-05020-E0iADT27#,ZRT27#..E,G201111-201505

GREGE,TRIM40

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20110iWWT27#,ZRT27#201408-201505

main69410-33010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201407

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-05020iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-05020iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32040iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-05030iADT27#,ZRT27#..LHD..(E,G,N,V)200811-201505

main69770-05040iZRT272..RHD..HTWC200811-201505

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-05030iADT270..LHD..F200811-201505

main69770-05040iWWT27#,ZRT27#..RHD200811-201505

9014850003

main90148-50003

90148W0004

main90148-W0004

90148W0005

main90148-W0005

9018905003

main90189-05003

9356855016

main93568-55016

26 parts on this diagram · 1 diagram in section
