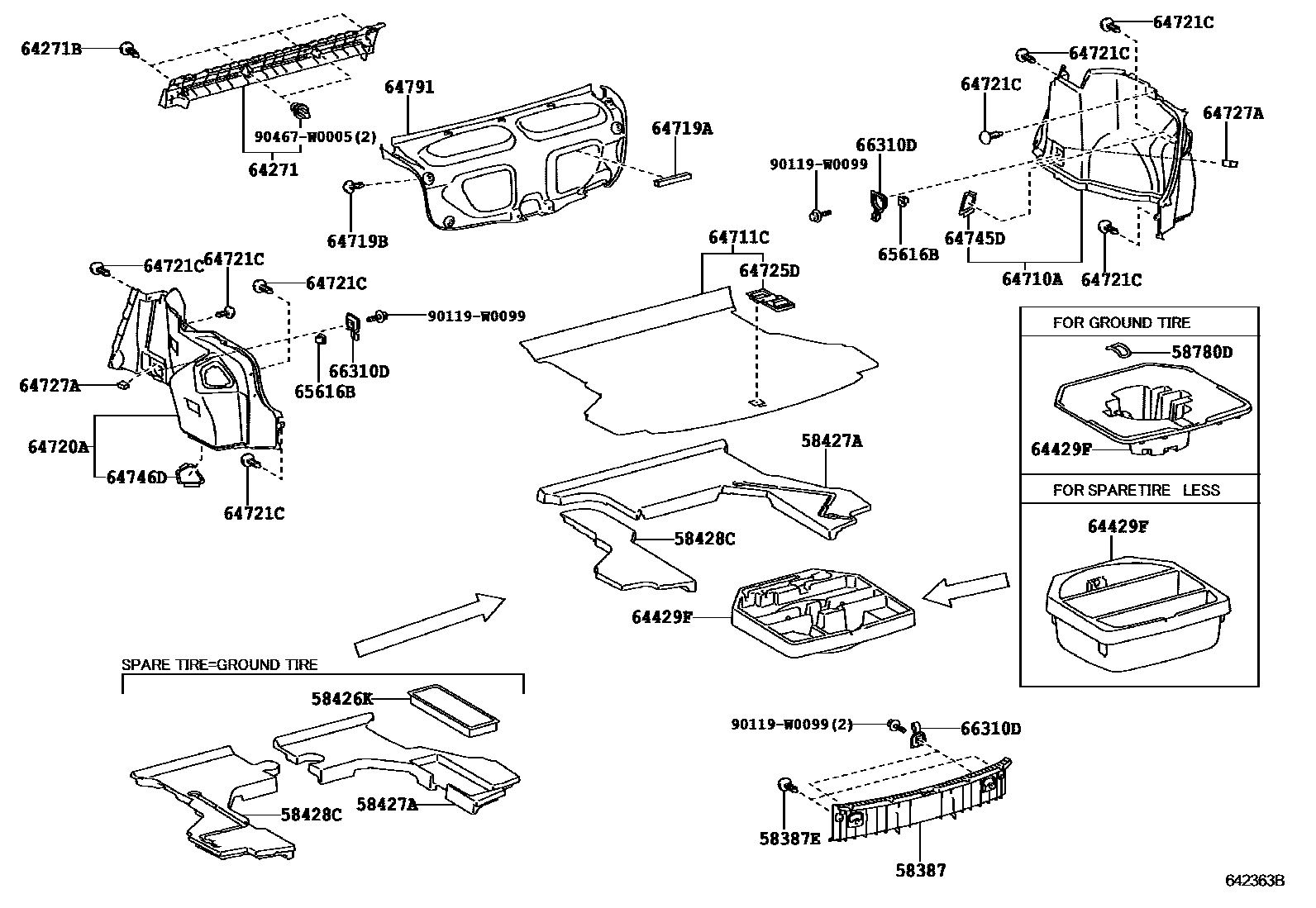

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-05100-C0iADT270..RHD..SED..(E,F);ADT270,ZRT272..LHD..SED..E..(DCR,HTWC);ADT271,ZRT27#..SED..(E,G,V)..(DCR,DCRL,HTWVM)200811-201111

BLACK,TRIM2#,4#

main58387-05100-C0iADT270,ZRT270,271..SED..N200811-201505

BLACK,TRIM2#

main58387-05100-C0iADT270,ZRT270,271..SED..N201111-201505

BLACK,TRIM1#,2#,4#

main58387-05100-C1iWWT27#,ZRT27#..SED..(E,G)201505

EU BLACK,TRIM2#

main58387-05100-C1iWWT270,ZRT270,271..SED..N201505

EU BLACK,TRIM1#,2#,4#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-W0007iADT27#,ZRT27#..SED200811-201505

58426KBOARD, REAR FLOOR, RH

58427ASPACER, REAR FLOOR BOARD

main58427-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58428CSPACER, REAR FLOOR BOARD, NO.6

main58428-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58780DBAND ASSY, TOOL BOX

64271BOARD, ROOM PARTITION, NO.1

main64271-05040-C0iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

BLACK,TRIM2#,4#

main64271-05040-C0iADT270,ZRT270,271..SED..N200811-201505

BLACK,TRIM2#

main64271-05040-C0iADT270,ZRT270,271..SED..N201111-201505

BLACK,TRIM1#,2#,4#

main64271-05040-C1iWWT270,ZRT270,271..SED..N201505

EU BLACK,TRIM2#

main64271-05040-C1iWWT27#,ZRT27#..SED..(E,G)201505

EU BLACK,TRIM1#,2#,4#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-W0001-C0iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201505

BLACK,TRIM2#

main90467-W0001-C0iADT270,ZRT270,271..SED..N201111-201505

BLACK,TRIM1#,2#,4#

main90467-W0001-C1iWWT27#,ZRT27#..SED..(E,G)201505

EU BLACK,TRIM1#,2#,4#

main90467-W0001-C1iWWT27#,ZRT27#..SED..(E,G)201505

EU BLACK,TRIM2#

main90467-W0001-E0iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

GREGE,TRIM4#

64429FBOX, LUGGAGE COMPARTMENT TRIM

main64429-05020-C0iZRT272..RHD..HTWC200811-201111

BLACK,TRIM2#

main64429-05020-C0iZRT272..RHD..HTWC200811-201505

BLACK

main64429-05020-C0iZRT272..HTWC201505

JACK-WITH&SPARE TIRE-TEMPORARY(T145/70D17),BLACK

main64429-05020-C0iZRT272..HTWC201505

TOOL(PLANT INSTALL)-HUB NUT WRENCH&SPARE TIRE-TEMPORARY(T145/70D17),BLACK

main64429-05041-C0iWWT27#,ZRT27#..SED..(DCR,HTWVM)201505

BLACK

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-05020-C1iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

BLACK,TRIM2#,4#

main64710-05020-C1iADT270,ZRT270,271..SED..N200811-201402

BLACK,TRIM2#

main64710-05020-C1iADT270,ZRT270,271..SED..N201111-201402

BLACK,TRIM1#,2#,4#

main64710-05021-C1iZRT272..HTWC201402-201505

BLACK,TRIM2#

main64710-05021-C1iZRT272..HTWC201402-201505

BLACK,TRIM2#,4#

main64710-05021-C1iZRT272..HTWC201402-201505

BLACK,TRIM1#,2#,4#

main64710-05022-C1iWWT270,ZRT270,271..SED..N201505

BLACK,TRIM2#

main64710-05022-C1iWWT270,ZRT270,271..SED..N201505

BLACK,TRIM1#,2#,4#

main64710-05022-C1iWWT270,ZRT270,271..SED..N201505

BLACK,TRIM1#,4#

64711CCARPET, LUGGAGE COMPARTMENT FLOOR

main64711-05080-C2iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

BLACK,TRIM2#,4#

main64711-05080-C2iADT270,ZRT270,271..SED..N200811-201505

BLACK,TRIM2#

main64711-05080-C2iADT270,ZRT270,271..SED..N201111-201505

BLACK,TRIM1#,2#,4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-W0007iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-05020-C1iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

BLACK,TRIM2#,4#

main64720-05020-C1iADT270,ZRT270,271..SED..N200811-201505

BLACK,TRIM2#

main64720-05020-C1iADT270,ZRT270,271..SED..N201111-201505

BLACK,TRIM1#,2#,4#

main64720-05021-C1iWWT270,ZRT270,271..SED..N201505

BLACK,TRIM2#

main64720-05021-C1iWWT270,ZRT270,271..SED..N201505

BLACK,TRIM1#,2#,4#

main64720-05021-C1iWWT270,ZRT270,271..SED..N201505

BLACK,TRIM1#,4#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-W0007iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-20090-C0iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

BLACK

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64733-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-05080-C1iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

BLACK,TRIM2#,4#

main64745-05080-C1iADT270,ZRT270,271..SED..N200811-201505

BLACK,TRIM2#

main64745-05080-C1iADT27#,ZRT271,272..SED..E201111-201505

BLACK,TRIM1#,2#,4#

main64745-05080-C1iWWT270,ZRT270,271..SED..N201505

BLACK,TRIM1#,4#

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-05080-C1iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

BLACK,TRIM2#,4#

main64746-05080-C1iADT270,ZRT270,271..SED..N200811-201505

BLACK,TRIM2#

main64746-05080-C1iADT270,ZRT270,271..SED..N201111-201505

BLACK,TRIM1#,2#,4#

main64746-05080-C1iWWT270,ZRT270,271..SED..N201505

BLACK,TRIM1#,4#

64791COVER, BACK DOOR TRIM

main64791-05060-C2iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

BLACK,TRIM2#,4#

main64791-05060-C2iADT270,ZRT270,271..SED..N200811-201505

BLACK,TRIM2#

main64791-05060-C2iADT270,ZRT270,271..SED..N201111-201505

BLACK,TRIM1#,2#,4#

65616BGUIDE

main81496-12030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

66310DHOOK ASSY, ROPE

main66310-05011-C0iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

BLACK,TRIM2#,4#

main66310-05011-C0iADT270,ZRT270,271..SED..N200811-201505

BLACK,TRIM2#

main66310-05011-C0iADT270,ZRT270,271..SED..N201111-201505

BLACK,TRIM1#,2#,4#

main66310-05011-C1iWWT27#,ZRT27#..SED..(E,G)201505

EU BLACK,TRIM1#,2#,4#

main66310-05011-C1iWWT27#,ZRT27#..SED..(E,G)201505

EU BLACK,TRIM2#

90119W0099

main90119-W0099

90467W0005

main90467-W0005

24 parts on this diagram · 2 diagrams in section
