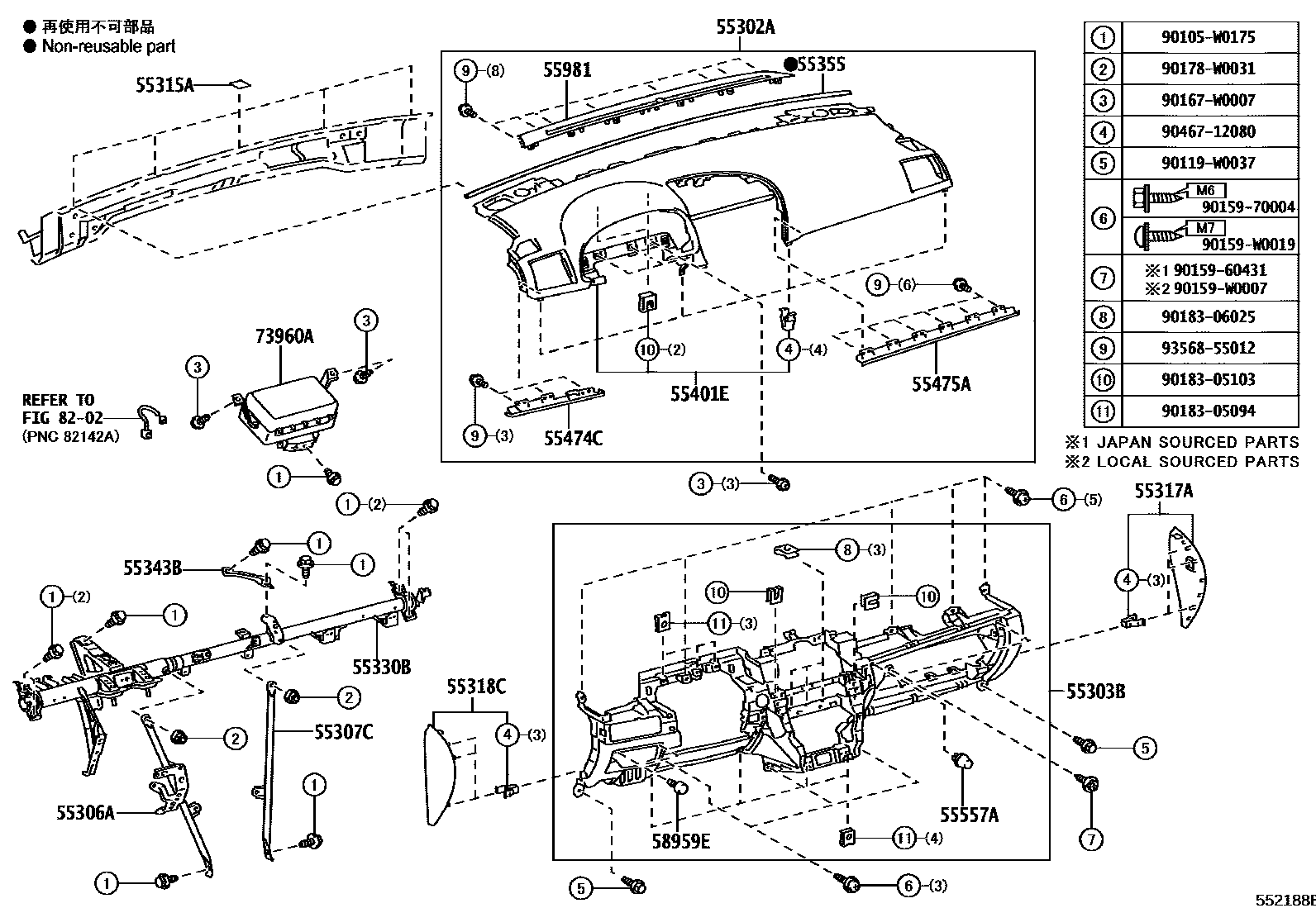

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1DRIVER SIDE 0005 1DRIVER SIDE 0006 1DRIVER SIDE 0007 1DRIVER SIDE 0008 1CENTER 0009 1CENTER 0010 1CENTER 0011 1CENTER 0012 1PASSENGER SIDE 0013 1PASSENGER SIDE 0014 1PASSENGER SIDE 0015 1PASSENGER SIDE 0016 1 0017 1 0018 1DRIVER SIDE 0019 1DRIVER SIDE 0020 1CENTER 0021 1CENTER 0022 1PASSENGER SIDE 0023 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-05051-C0iADT270,ZRT270,271..LHD..N200811-201111

BLACK,TRIM2#

main55302-05051-C0iADT270,ZRT270,271..LHD..N200811-201111

BLACK,TRIM2#,4#

main55302-05052-C0iZRT272..HTWC201111-201505

BLACK,TRIM2#,4#

main55302-05052-C0iZRT272..HTWC201111-201505

BLACK,TRIM2#

main55302-05052-C0iZRT272..HTWC201111-201505

BLACK,TRIM1#,2#,4#

main55302-05070-C0iADT270,ZRT270,271..RHD..N200811-201104

BLACK,TRIM2#,4#

main55302-05070-C0iADT27#,ZRT27#..RHD..(E,F,G,V)200811-201104

BLACK,TRIM2#

main55302-05071-C0iADT271,ZRT270..RHD..(E,N);ADT270,ZRT271..RHD..(F,N)201104-201111

BLACK,TRIM2#

main55302-05071-C0iADT271,ZRT270..RHD..(E,N);ADT270,ZRT271..RHD..(F,N)201104-201111

BLACK,TRIM2#,4#

main55302-05072-C0iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..G201111-201505

BLACK,TRIM1#,2#,4#

main55302-05072-C0iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..G201111-201505

BLACK,TRIM2#

main55302-05100-C0iWWT270,ZRT270,271..LHD..N201505

EU BLACK,TRIM2#

main55302-05100-C0iWWT270,ZRT270,271..LHD..N201505

EU BLACK,TRIM1#,2#,4#

main55302-05110-C0iWWT270,ZRT270,271..RHD..N201505

EU BLACK,TRIM2#

main55302-05110-C0iWWT270,ZRT270,271..RHD..N201505

EU BLACK,TRIM1#,2#,4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-05030-C0iADT270..LHD..F200811-201111

BLACK,TRIM2#,4#

main55303-05030-C0iADT27#,ZRT27#..LHD..(E,G)201111-201505

BLACK,TRIM1#,2#,4#

main55303-05030-C0iADT270,ZRT270,271..LHD..N200811-201505

BLACK,TRIM2#

main55303-05040-C0iADT270,ZRT270,271..RHD..N201111-201505

BLACK,TRIM1#,2#,4#

main55303-05040-C0iZRT272..RHD..HTWC200811-201111

BLACK,TRIM2#,4#

main55303-05040-C0iADT270,ZRT270,271..RHD..N200811-201505

BLACK,TRIM2#

main55303-05050-C0iWWT270,ZRT270,271..LHD..N201505

EU BLACK,TRIM2#

main55303-05050-C0iWWT27#,ZRT27#..LHD..(E,G)201505

EU BLACK,TRIM1#,2#,4#

main55303-05060-C0iWWT270,ZRT270,271..RHD..N201505

EU BLACK,TRIM1#,2#,4#

main55303-05060-C0iWWT27#,ZRT27#..RHD..(E,G)201505

EU BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-05100iADT27#,ZRT27#..LHD..(E,G,N,V)200811-201505

main55306-05110iZRT272..RHD..HTWC200811-201505

main55306-05120iWWT27#,ZRT27#..LHD201505

main55306-05130iWWT27#,ZRT27#..RHD201505

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-05030iADT270..LHD..F200811-201505

main55307-05040iADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM)200811-201505

main55307-05050iWWT27#,ZRT27#..LHD201505

main55307-05060iWWT27#,ZRT27#..RHD201505

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-05050iADT27#,ZRT27#200811-201505

55317APANEL, INSTRUMENT SIDE, RH

main55317-05010-C0iADT270..LHD..F200811-201111

BLACK,TRIM2#,4#

main55317-05010-C0iADT27#,ZRT27#..LHD..(E,G)200811-201505

BLACK,TRIM2#

main55317-05010-C0iADT270,ZRT270,271..LHD..N201111-201505

BLACK,TRIM1#,2#,4#

main55317-05020-C0iADT270,ZRT270,271..RHD..N201111-201505

BLACK,TRIM1#,2#,4#

main55317-05020-C0iZRT272..RHD..HTWC200811-201111

BLACK,TRIM2#,4#

main55317-05020-C0iADT270,ZRT270,271..RHD..N200811-201505

BLACK,TRIM2#

main55317-05050-C0iWWT270,ZRT270,271..LHD..N201505

EU BLACK,TRIM2#

main55317-05050-C0iWWT270,ZRT270,271..LHD..N201505

EU BLACK,TRIM1#,2#,4#

main55317-05060-C0iWWT270,ZRT270,271..RHD..N201505

EU BLACK,TRIM2#

main55317-05060-C0iWWT270,ZRT270,271..RHD..N201505

EU BLACK,TRIM1#,2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-05010-C0iADT270..LHD..F200811-201111

BLACK,TRIM2#,4#

main55318-05010-C0iADT27#,ZRT27#..LHD..(E,G)201111-201505

BLACK,TRIM1#,2#,4#

main55318-05010-C0iADT270,ZRT270,271..LHD..N200811-201505

BLACK,TRIM2#

main55318-05020-C0iADT270,ZRT270,271..RHD..N200811-201505

BLACK,TRIM2#

main55318-05020-C0iZRT272..RHD..HTWC200811-201111

BLACK,TRIM2#,4#

main55318-05020-C0iADT270,ZRT270,271..RHD..N201111-201505

BLACK,TRIM1#,2#,4#

main55318-05030-C0iWWT270,ZRT270,271..LHD..N201505

EU BLACK,TRIM1#,2#,4#

main55318-05030-C0iWWT270,ZRT270,271..LHD..N201505

EU BLACK,TRIM2#

main55318-05040-C0iWWT27#,ZRT27#..RHD..(E,G)201505

EU BLACK,TRIM1#,2#,4#

main55318-05040-C0iWWT270,ZRT270,271..RHD..N201505

EU BLACK,TRIM2#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-05150iADT27#,ZRT27#..LHD200811-201103

main55330-05151iADT27#,ZRT27#..LHD201104-201505

main55330-05160iADT27#,ZRT27#..RHD200811-201103

main55330-05161iWWT27#,ZRT27#..RHD201104-201505

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-02060iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-05060iADT270..LHD..F;ZRT272..RHD..HTWC200811-201503

main55355-05090iWWT27#,ZRT27#..LHD201503-201505

main55355-05100iWWT27#,ZRT27#..RHD201503-201505

NO.1:REFER ILLUST.

main55355-05110iWWT27#,ZRT27#..RHD201503-201505

NO.2:REFER ILLUST.

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-05091-C0iZRT272..HTWC200811-201505

BLACK,TRIM2#,4#

main55401-05091-C0iADT270,ZRT270,271..LHD..N200811-201505

BLACK,TRIM2#

main55401-05091-C0iZRT272..HTWC201111-201505

BLACK,TRIM1#,2#,4#

main55401-05111-C0iADT270,ZRT270,271..RHD..N200811-201505

BLACK,TRIM2#

main55401-05111-C0iADT270,ZRT270,271..RHD..N200811-201111

BLACK,TRIM2#,4#

main55401-05111-C0iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..G201111-201505

BLACK,TRIM1#,2#,4#

main55401-05130-C0iWWT27#,ZRT27#..LHD..(E,G)201505

EU BLACK,TRIM1#,2#,4#

main55401-05130-C0iWWT270,ZRT270,271..LHD..N201505

EU BLACK,TRIM2#

main55401-05140-C0iWWT27#,ZRT27#..RHD..(E,G)201505

EU BLACK,TRIM1#,2#,4#

main55401-05140-C0iWWT270,ZRT270,271..RHD..N201505

EU BLACK,TRIM2#

55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55474-05110iADT27#,ZRT27#..LHD..(E,G,N,V)200811-201505

main55474-05120iADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM)200811-201505

55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

main55475-05210iADT270..LHD..F200811-201505

main55475-05220iZRT272..RHD..HTWC200811-201505

main55475-05240iWWT27#,ZRT27#..LHD..(E,G)201505

main55475-05260iWWT270,ZRT270,271..LHD..N201505

main55475-05280iWWT27#,ZRT27#..RHD..(E,G)201505

main55475-05300iWWT270,ZRT270,271..RHD..N201505

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-53030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-05010-C0iADT270,ZRT270,271..LHD..N200811-200910

BLACK,TRIM2#

main55981-05010-C0iADT270,ZRT270,271..LHD..N200811-200910

BLACK,TRIM2#,4#

main55981-05011-C0iZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G200910-201505

BLACK,TRIM2#

main55981-05011-C0iZRT272..LHD..HTWC;ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V)200910-201505

BLACK,TRIM2#,4#

main55981-05011-C0iZRT272..HTWC201111-201505

BLACK,TRIM1#,2#,4#

main55981-05011-C1iWWT27#,ZRT27#..LHD..(E,G)201505

EU BLACK,TRIM1#,2#,4#

main55981-05011-C1iWWT270,ZRT270,271..LHD..N201505

EU BLACK,TRIM2#

main55981-05020-C0iADT270,ZRT270,271..RHD..N200811-200910

BLACK,TRIM2#

main55981-05020-C0iADT270,ZRT270,271..RHD..N200811-200910

BLACK,TRIM2#,4#

main55981-05021-C0iZRT270..RHD..N;ADT27#,ZRT271,272..RHD..(E,N)200910-201505

BLACK,TRIM2#

main55981-05021-C0iZRT272..RHD..HTWC200910-201111

BLACK,TRIM2#,4#

main55981-05021-C0iZRT270..RHD..E;ADT27#,ZRT271,272..RHD..G201111-201505

BLACK,TRIM1#,2#,4#

main55981-05021-C1iWWT270,ZRT270,271..RHD..N201505

EU BLACK,TRIM2#

main55981-05021-C1iWWT270,ZRT270,271..RHD..N201505

EU BLACK,TRIM1#,2#,4#

58959ECUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-05010iADT270..LHD..F200811-201406

main73960-05011iADT27#,ZRT27#..LHD201407-201505

main73960-05012iWWT27#,ZRT27#..LHD201505

main73960-05020iZRT272..RHD..HTWC200811-201406

main73960-05021iADT27#,ZRT27#..RHD201407-201505

main73960-05022iWWT27#,ZRT27#..RHD201505

8202WIRING & CLAMP

→ Go to FIG 82-02

90105W0175

main90105-W0175

90119W0037

main90119-W0037

9015960431

main90159-60431

9015970004

main90159-70004

90159W0007

main90159-W0007

90159W0019

main90159-W0019

90167W0007

main90167-W0007

90178W0031

main90178-W0031

9018305094

main90183-05094

9018305103

main90183-05103

9018306025

main90183-06025

9046712080

main90467-12080

9356855012

main93568-55012

31 parts on this diagram · 23 diagrams in section
